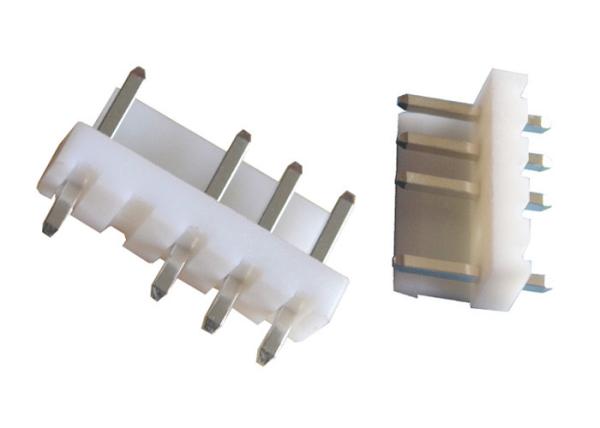

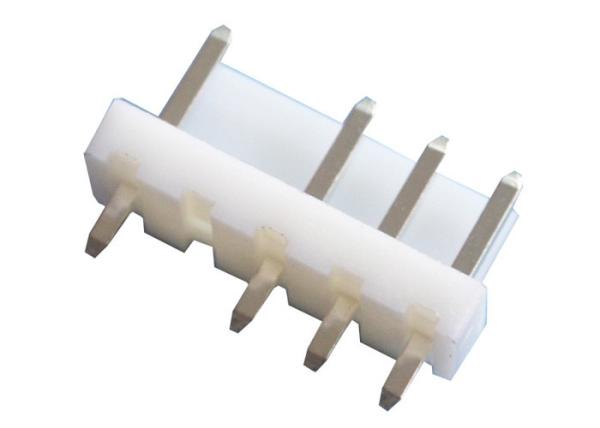

Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved
Specifications
Brand Name :
RealRun
Model Number :
VH3.96-nP 5P
Certification :
ISO9001, SGS, Rohs, Reach
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :
CAP+Reel Tape Packing
Mounting Type :
Through Hole
Contact Resistance(max) :
30m ohm
Current Rating :
3A
OEM/ODM :
YES
Insulation Resistance(min) :
1000M ohm
Operating Temperature :
-40~105℃
Description

Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved

Product Name: Wafer connector
features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.
product material: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..

Current Rating 2.0 AMP
Contact Resistance 20 mΩ Max
Withstand Voltage 500 V AC/DC
Insulation Resistance 1000MΩ Min
Operation Temperature -40℃ to 105℃
Contact Material Coppy Alloy
Products Name Female Header Connector
Pitch 2.00mm(0.079'')
Mounting Type Through Hole
Contact Plating Au over Ni
Insulator Material PA6T+30%GF(UL94V-0)


Wafer Wire Board Connector VH 3.96mm Pitch Empty Pin Rohs Reach Approved

What are the differences in the connector industry's header, wafer, and housing?

1.HEADER is a metal piece and plastic parts assembled together, usually on the PCB board, which is the same as WAFER

2.HOSING is generally only plastic (some have iron), and wire and terminal assembled together

Packing & Shipping

1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.

2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.

3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: Which payment can be accepted?

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: Are you manufacture of trading company?

A: We are a manufacture in Shenzhen, China.

Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.
