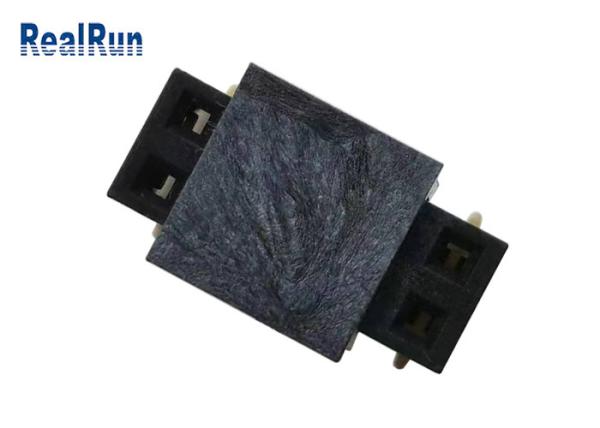

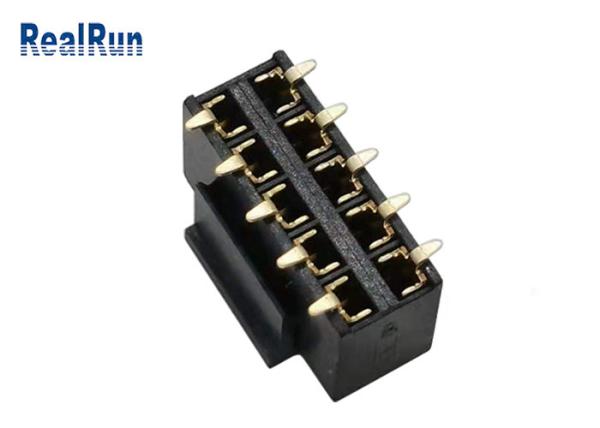

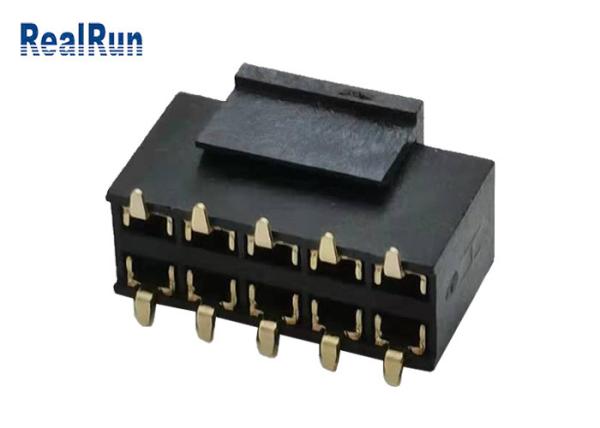

LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001
Specifications
Brand Name :
RealRun
Model Number :
FH2.54*7.1-2*nT 10T
Certification :
ISO9001, SGS, Rohs, Reach
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :

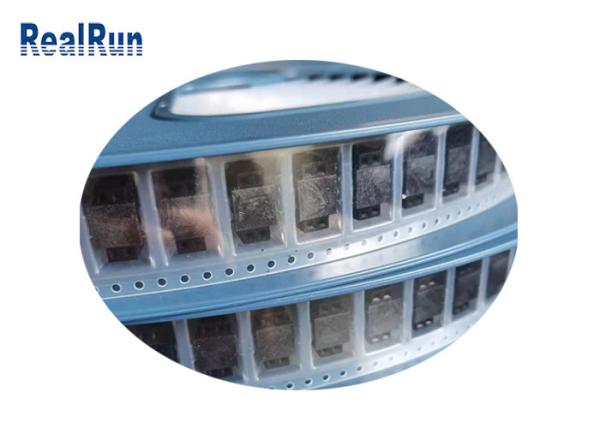

CAP+Reel Tape Packing
Pitch :
2.54mm
Current Rating :
3A
Contact Resistance(max) :
30m ohm Max at DC 3A
Insulation Resistance(min) :
1000M ohm Min
Processing Temperature :
260℃ for 10 seconds
Operating Temperature :
-40~105℃
Insulator :
PA6T+30%G.F UL94V-0 CAP:LCP
Contact :
Phosphor Bronze
Contact Plating :
Contact Area Gold 0.8μ"
Description

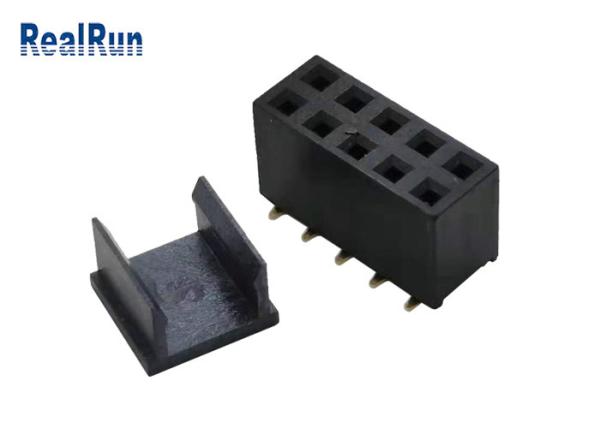

Phosphor Bronze 2.54Mm Pitch Female Header Motor Connector H7.1 SMD 2×5 Pin With Cap

Product name: 2.54mm female header connector
1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

Please feel free to contact us and we will send you the drawings you need:

LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001

Specifications

1. Pitch:2.54mm(0.1'')

2. Connector Name: PCB Connector/Female Pin Header

3. Insulation Material:PA6T UL 94V-0

4. Contact Material: Phosphor Bronze

5: Mounting Type: Through Hole

6: Number of Row: Double Row

7: Contact Finish: Gold/Tin plated over Nickel

8: Termination: Solder

9: Color:Black

10: Current Rating:3A

11: Contact Resistance:30mΩ Max at DC 3A

12: Pin Length: Customization

13: Pin Available:2Pins to 80Pins

14. Plastic Height: 7.1mm

15. Fastening Type:Push-Pull

16. Style:Board to Board

17. Contact Type:Female Socket

18.Processing Temperature:260℃ for seconds

LCP PA6T 30m Ohm Female Header Connector H7.1 SMD 2×5 Pin ISO9001

Our advantages

1. 15 years experience in the electronic connector.

2. Strong R＆Team. specialized in connector and modle design.

3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.

4. Strict Shipping. 100% tested before delivery.

5. Fast Delivery. Orders shipped in 3-10 days.

6. OEM/ODM. OEM/ODM service offered.

Shipping

If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

Payment

Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.

Our advantages

1. Provide free samples

2. Accept ODM/OEM with strong R&D team

3. Fast response to your inquiry and feedback

4. Good quality with strict quality control

5. Professional after-sale team

Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 15 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
