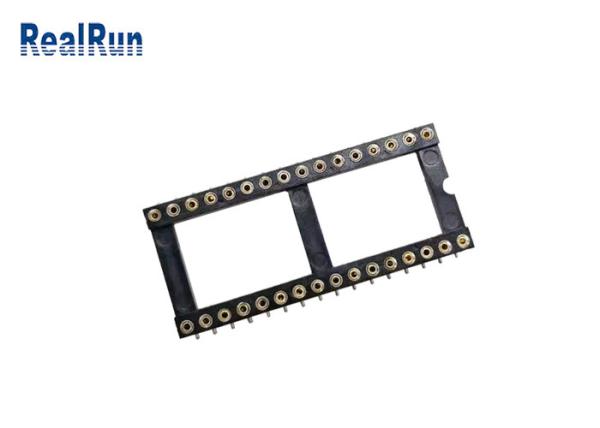

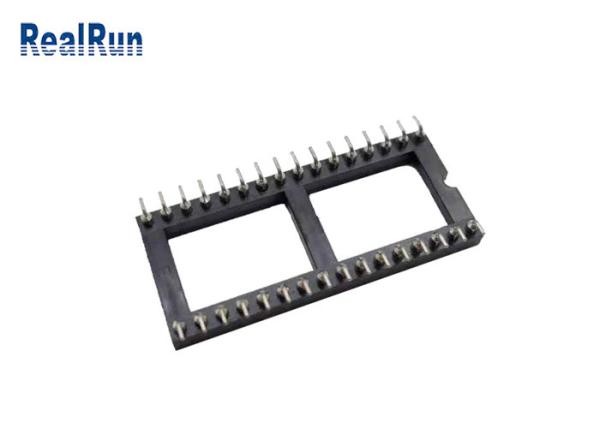

1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0
Specifications
Brand Name :
RealRun
Model Number :
IC1.778-nT 32T
Certification :
ISO9001, SGS, Rohs, Reach
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :
Tray Packing
Insulator Flammability :
G.F+PPS UL 94V-0
Contact Plating :
Gold/Tin over Nickel
Pin Length :
Customization
Operation Temperature :
-40~+105℃
Insulation Resistance :
1000MΩ Min
Solding Temperature :
260℃ ,10s max
Rated current :
1.0Amp
Contact resistance :
max 10mΩ
Description

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

PPS 1.778mm SMT Type Round Holes Female Ic Socket Connector 32 Pin

Forces

polished steel gauga Φ0.43mm

Insertion

2N typ
Withdrawal 1N typ

Operation Temperature

-40℃ to +105℃
Accepted in φ0.40 to 0.56mm
Mechanical life min 100cycles
Rated current 1.0Amp
Contact resistance max 10mΩ
Dielectric resistance 1000MΩ Min
Solding Temperature 260℃,10s max

Sleeve

Brass CuZn36Pb3(C36000)

Contact Clip(4 finger)

Beryllium copper(C17200)

Insulator Material

Black glass filled polyester PPS UL94V-0

Item name:1.778mm IC Socket

product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof

product material: (UL94V-0) PPS black +GF

scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers.

Drawings:

1.778mm SMT Round Holes Ic Socket Connector 32 Pin PPS UL94V-0

Why choose RealRun?

1. RealRun has more than 10 years experiences in the electronic connectors area.

2. The goods with good quality and service are sold to more than 70 countries.

3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.

4. One of the biggest electronic connectors supplier in the China mainland.

FAQ
Q1. Can I have a sample order for Connector?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-7 days, mass production time needs 1-2 weeks for order quantity more than 10K pieces.

Q3. Do you have any MOQ limit for Connector?
A: Low MOQ 10pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 12 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Connector?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print number on the Connector?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes.
