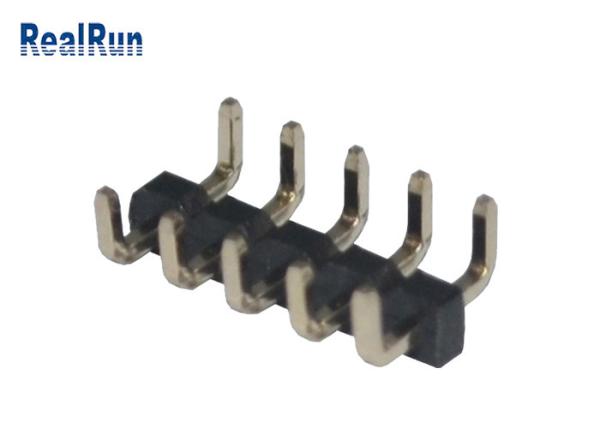

PBT 2.0mm 5 6 8 10 20 Pin U Type Brass Terminal Pin Header Connector

Product features:Envornment protection rubber and plastic, containing 30% glass fiber, fireproof and high temperature resistant, with strong oxidation resistance and stability.

Product function:Complete the board-to-board-to-cable connection like a bridge, so as to achieve the function of current connection signal transmission.

Scope of application: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the female header socket supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.

Please feel free to contact us and we will send you the drawings you need.

Pin Header

Pin header,a kind of connector, This kind of connector is widely used in PCB circuit board of electronics,electrical appliances and instruments.

Its function is to bridge the blocked or isolated circuits in the circuit and take on the task of current or signal transmission.

It is usually used with bus bar to form board to board connection, or with electronic harness terminal to form board to line connection, or can be used independently for board to board connection.

Due to the different specifications required by different products, there are many types and specifications of pin connectors.

According to the spacing, it can be roughly divided into seven categories: 5.08mm, 3.96mm, 2.54mm, 2.00mm, 1.27mm, 1.00mm and 0.8mm.

According to the number of rows, there are single row pins, double row pins and three row pins.

According to the shap structure, there are SMT (horizontal / vertical), dip (direct / curved), U type and so on.

It mainly plays the role of current or signal transmission. It is usually used together with female header to form board to board connection.

Classification of pin header

According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.

According to row number: single row ,dual row,three row,four row.

According to terminal shape: U type,Y type,O type.

According to number of plastic:single plastic, double plastic,three plastic.

According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
