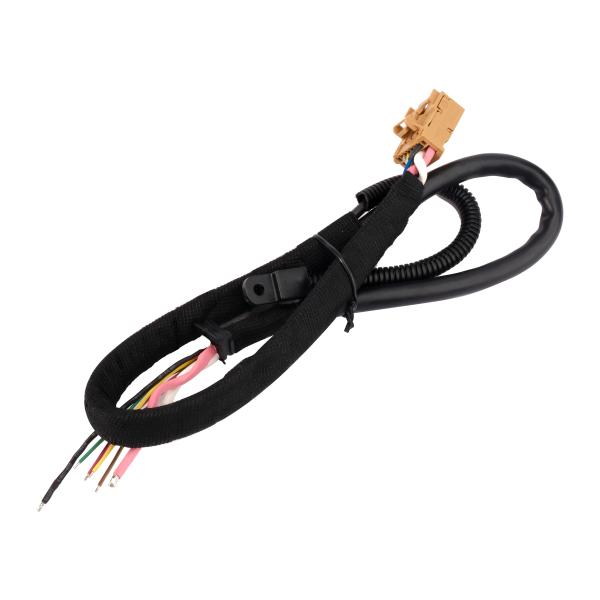

car audio wiring harness 368087-1 TO Hall sensors car stereo iso harness

Product introduction

The extension cable is made of tinned copper wire with PVC, SR-PVC, XL-PVC, XL-PE and other insulating materials. It is widely used in electronic equipment such as audio, digital, video, car audio, TV, typewriter, notebook, cash register, telephone, CD-ROM, VCD, DVD, copier, printer, wireless instrumentation, lighting fixtures, household appliances and other electrical equipment internal wiring field.

Its electronic wire type is UL1007.

Rating is 80 deg C, 300 Vac, Horizontal flame. optional - 60 deg C or 80 deg C Oil.

Conductor is 32 AWG - 16 AWG, Solid or Stranded.

Insulation is Extruded PVC, 15 mils minimum average thickness, 13 mils minimum thickness at any point.

Standard is Appliance Wiring Material UL 758.Marking is General.

Use is Internal wiring of appliances. Tags may indicate the following: 600 V Peak - For Electronic Use Only

The advantages of using UL material are UL758, UL1581 and CSA, C22.2 NO.210, UL VW-1 and CSA FT1 vertical combustion test, PVC insulation with low lead and cadmium, and compliance with SONY SS-00259 environmental substance management standard. The only disadvantage is that the cost is relatively high

Process requirements:Each wire needs to be sealed with a riveting terminal, after cutting the line,put the wire through the belows first. and then over the transparent sleeve wi th riveting terminal empty pin of rubber shell at ends blind plugging.Yellow clips must be installed after rubber shells at both ends are inserted into terminals.

Technical Requirements:100% electrical test of finished products, no short circuit break, wrong line, intermittent bad contact.Test conditions: insulation impedance≥10M “on-going impedance ≤l∞high-voltage DC300V 0.1.the outer wire shoudnt be damaged,dirty,and the core shall not be broken.Terminal crimping should be good and rel iable, and copper wire should not be exposed.All materials comply with EU RoHS directive.

Product applications

Widely used in electronic equipment such as stereos, digital cameras, video cameras, car stereos, televisions, typewriters, notebooks, cash registers, telephones, CD-ROMs, VCDs, DVDs, photocopiers, printers, wireless instruments, lighting fixtures, household appliances and other electrical equipment internal wiring

product properties

Product drawings

Company information

Shenzhen soulin Electronic Technology Co., Ltd., founded in September 2009, is located in Guangming District, Shenzhen. It specializes in the R & D and manufacturing of connectors. It has more than 300 employees and a plant area of more than 14000 square meters. It is divided into hardware department, injection molding department, assembly department and electroplating Department. It has 36 precision high-speed punches, 32 precision injection molding machines, and more than 180 automatic product assembly machines.

The company strictly in accordance with national standards for product development and production
The main products are: shielded wire, video wire, molding wire, terminal wire, LED strip wire The main products are: shielded wire, video wire, molding wire, terminal wire, LED strip wire, new energy vehicle wire harness, etc., and can be customized according to customer needs. Scope of application: new energy equipment New energy equipment, smart home, car monitoring equipment, high-rise building intercom, monitoring, anti-theft, fire fighting and automatic meter reading The product range includes: new energy equipment, intelligent home, car monitoring equipment, high-rise building intercom, monitoring, burglary, fire prevention and automatic meter reading, visualization teaching project, computer network project, broadcasting audio project, etc.

FAQ

1) Your enquiry will be answered within 24 hours.

2)We provide OEM, ODM service, product details can be made according to your requirements.

3)Excellent pre-sales and after-sales service.

4)Factory and trade integration, 13 years export experience

5)Competitive price

6)Prompt delivery
