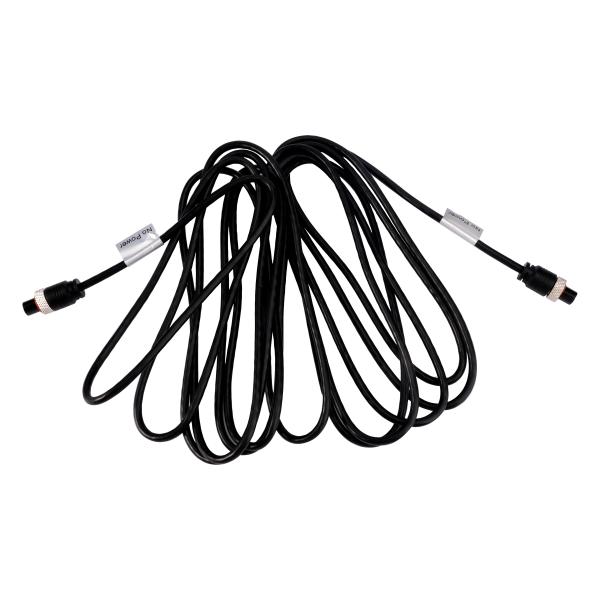

6PIN M12 female airline adaptor cable custom made automotive wiring harness

Product production processes

1. The first station of wire harness production is the opening process. The accuracy of the opening process is directly related to the whole production progress. Once there is an error, especially the opening size is too short, it will lead to rework of all stations, which is time-consuming and laborious and will affect the production efficiency. Therefore, it is necessary to reasonably determine the wire opening size and stripping head size according to the requirements of the drawings when preparing the wire opening process.
The second station after the line is opened is the crimping process. The crimping parameters are determined according to the terminal types required in the drawings, and the crimping operation instructions are prepared. For special requirements, the operators need to be noted on the process documents and trained.

2. Then comes the pre assembly process. First of all, prepare the pre assembly process operation manual. In order to improve the assembly efficiency, complex wire harnesses must be equipped with pre assembly stations. The rationality of the pre assembly process directly affects the efficiency of the general assembly and reflects the technical level of a technician. If the preassembled parts are less assembled or the assembled wire path is unreasonable, the workload of the general assembly personnel will be increased and the speed of the assembly line will be slowed down.

3.The last step is the final assembly process. Be able to compile the assembly platen designed by the product development department, design the specifications and dimensions of tooling equipment and material boxes, and paste the numbers of all assembly sheaths and accessories on the material boxes to improve the assembly efficiency. Prepare the assembly contents and requirements of each station, balance the whole assembly station, and prevent the situation that the workload is too large and the speed of the whole assembly line is reduced. To achieve station balance, the process personnel must be familiar with each operation, calculate the working hours on site, and adjust the assembly process at any time.

product properties

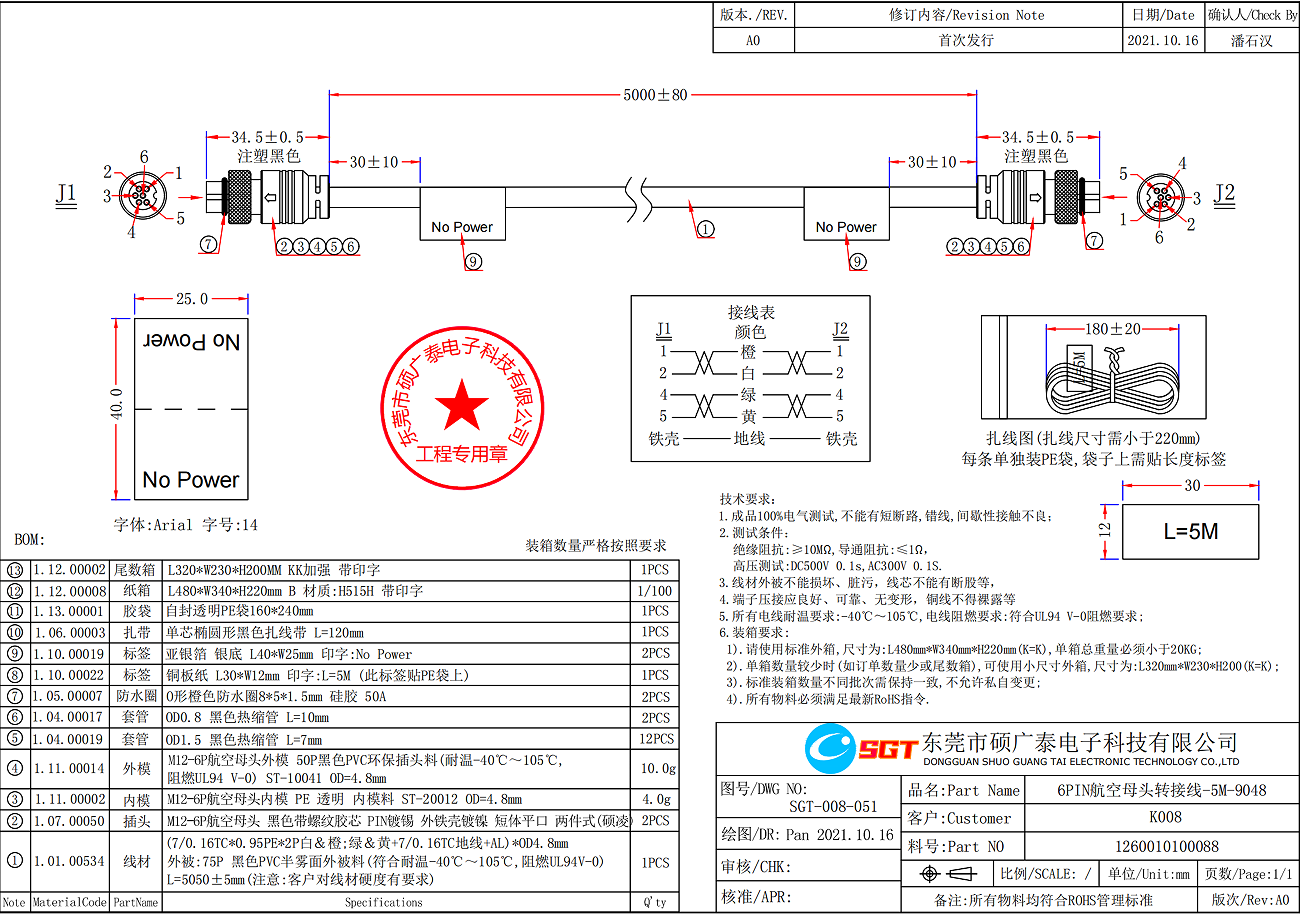

Product drawings

Company information

Shenzhen soulin Electronic Technology Co., Ltd., founded in September 2009, is located in Guangming District, Shenzhen. It specializes in the R & D and manufacturing of connectors. It has more than 300 employees and a plant area of more than 14000 square meters. It is divided into hardware department, injection molding department, assembly department and electroplating Department. It has 36 precision high-speed punches, 32 precision injection molding machines, and more than 180 automatic product assembly machines.

The company strictly in accordance with national standards for product development and production
The main products are: shielded wire, video wire, molding wire, terminal wire, LED strip wire The main products are: shielded wire, video wire, molding wire, terminal wire, LED strip wire, new energy vehicle wire harness, etc., and can be customized according to customer needs. Scope of application: new energy equipment New energy equipment, smart home, car monitoring equipment, high-rise building intercom, monitoring, anti-theft, fire fighting and automatic meter reading The product range includes: new energy equipment, intelligent home, car monitoring equipment, high-rise building intercom, monitoring, burglary, fire prevention and automatic meter reading, visualization teaching project, computer network project, broadcasting audio project, etc.

FAQ

1) Your enquiry will be answered within 24 hours.

2)We provide OEM, ODM service, product details can be made according to your requirements.

3)Excellent pre-sales and after-sales service.

4)Factory and trade integration, 13 years export experience

5)Competitive price

6)Prompt delivery
