Straight 10 Pin Box Header 2.54mm Pitch 3.0 AMP LCP Black UL94V-0
Straight 10 Pin Box Header 2.54mm Pitch 3.0 AMP LCP Black UL94V-0
Specifications
Brand Name :
LYCN
Model Number :
301XXXS
Certification :
UL/SGS/ROHS
Place of Origin :
Guangdong, China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
8000000K pcs
Delivery Time :
26-31 Days
Packaging Details :
Tray/Tube
Tail & Mounting Style :
180° Straight Dip
Pitch :
2.54mm
Current Rating :
3.0 AMP
Insulator Material :
LCP
Number of Contacts :
10 Pin-64 Pin
Color :
Black
Description

2.54 Pitch Box Header Connector Straight LCP Black Long Plastic Type UL94V-0

Product Application

Security and protection system, Intelligent home, Car anti-theft equipment, Video game controller, Card reader, Medical equipment, MODEM card, POS machine, Digital picture frame, Instrumentation, Electricity meter, Industrial camera, Electronic whiteboard, New energy vehicles, WAP and other communication equipment.

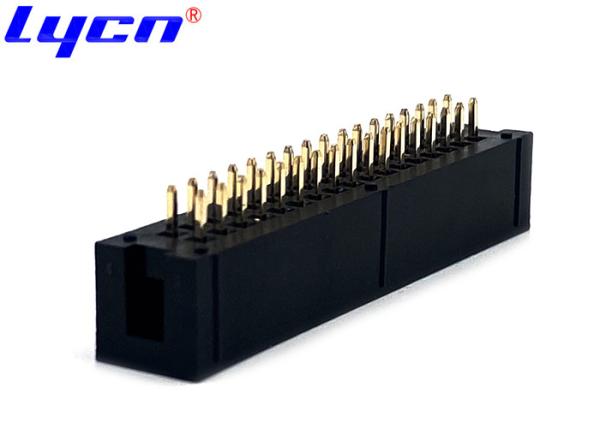

The box header connector is usually composed of a square plastic socket and a number of neatly arranged square pins. The difference between the box header connector and the ejector header connector is that the connector removes the buckles on both sides.

After welding the box header connector on the PCB board, it can be connected with the IDC line of the corresponding specifications to form the circuit connection mode with other circuits. It usually used to transmit control signals and weak currents.

Why choose us

1. Competitive price and High quality;
2. Timely delivery;
3. Technical support;

Specification:

1. Insulation Resistance 1000mΩ Min
2. Contact Resistance 20mΩ Max
3. Withstand Voltage 1000V AC/DC
4. Contact Plating

AU over Ni
5. Operation Temperature ﹣40℃ to +105℃
6. Sample 10-20pcs Free samples

FAQ

1. What kinds of product packing you can provide?
We will choose the most suitable packing method to protect products well. Customers also could customize their packages.
2. What services can we provide?
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, MoneyGram, Western Union;
Language Spoken: English, Chinese
3. What is your MOQ?
The Min. order quantity is 1,000pcs, the quantity depend on the item that customers need
