Mindary Silimar Model High Quality 10.4" LCD Display Double Vapourizer Hospital ICU Anesthesia Machine

Product Description

JINLING-850 anesthesia machine is our best-selling model. It is produced with reference to the mainstream high level anesthesia machine in the market. Our anesthesia machine has two vaporisers and a 10.4-inch LCD display, which can support A/C, IPPV, SIPPV, IMV, SIMV, PCV, VCV, PEEP, SIGN, MANUAL working modes. This anesthesia machine is mainly sold to Europe and parts of Asia area and is highly praised by hospitals and dealers.

Common Specification

Common Feature

• Common Features
• Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
• Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able-display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume, displayed waveforms can be cycled instantly with a touch of a button.
• Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.
• Power Failure Support Functions: Automatically converts to backup power mode during AC power outages.
• Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time.
• High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
• Nonhazardous environmentally friendlyframe, precise construction, elegant design,equipped with automated self-checking function during startup and an automatic self-calibrating sensor.
• Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function.
• Vaporizer: lmported tank components assembled locally; Enflurane, lsoflurane and Sevoflurane (Halothane optional).Also possesses self-compensating functionality.
• Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
• Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134℃.
• Multi-parameter Patient Model: Optional

Detail Specification

Pneumatically driven and electrically controlled system

Built-in ventilator, 10.4” LCD display screen

Closed; Semi-Closed; Semi-Open wotking mode

Applied for Adult and Pediatric

Main technical specifications:

Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.

5-tubes Flowmeters, O2 & N2O & Air ; 0.1L/Min ~ 10L / Min;

Oxygen Flush: 25~75 L / Min

Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,PCV,VCV,PEEP,SIGH,MANUAL

Tidal Volume: Adjustable range: 20 ~ 1500 ml, Display range:0~2000ml

I/E Ratio: 8:1 ~ 1:10

Two vaporizers: Enflurane/ Isoflurane/Sevoflurane (Optional:Halothane)

Vaporizer Setting Range: 0.5%~5%

Respiration Frequency : 1~100 bpm;

Lung compliance: ≤30 mL / kPa

IMV frequency: 1~20 bpm;

PEEP: 0 ~ 2.0 kPa

Ptr: -1.0kPa ~ 2.0 kPa

CO2 absorber capacity : 1 kg

Inspiratory Plateau: 0~1 S ;

O2 Concentration: 21%~100%

Optional: Patient monitor

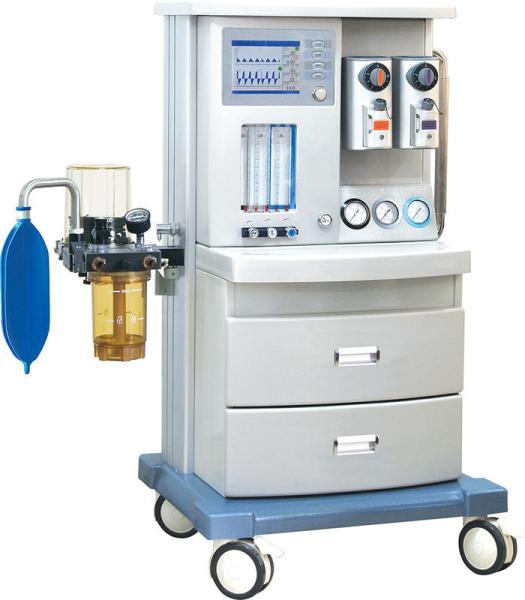

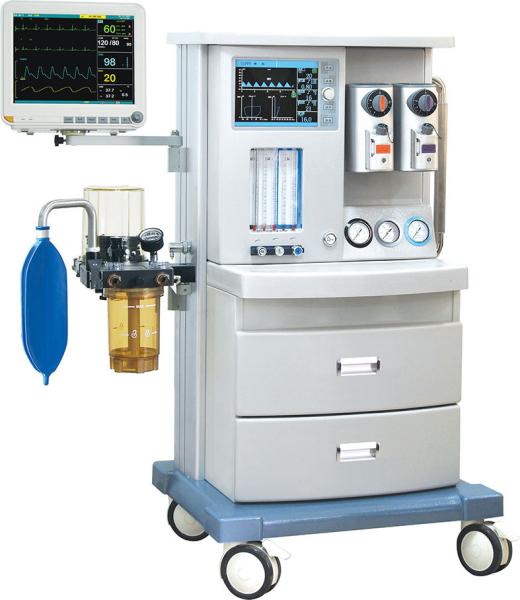

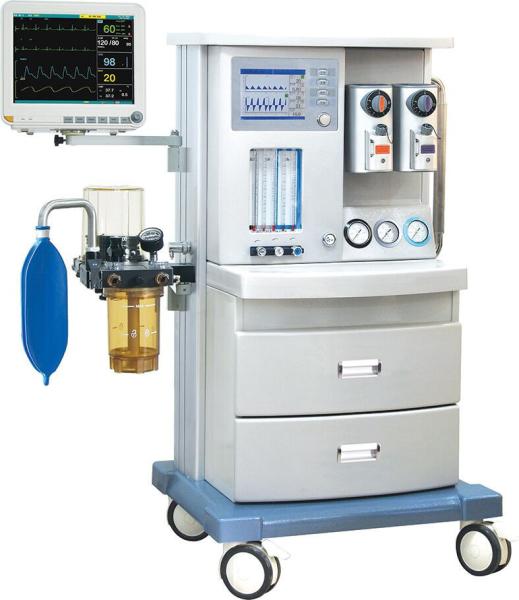

Product Picture
