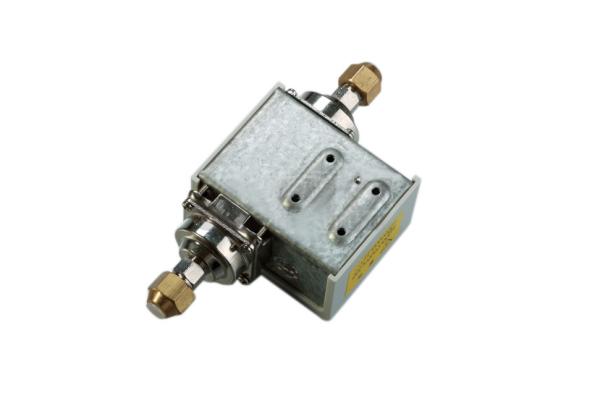

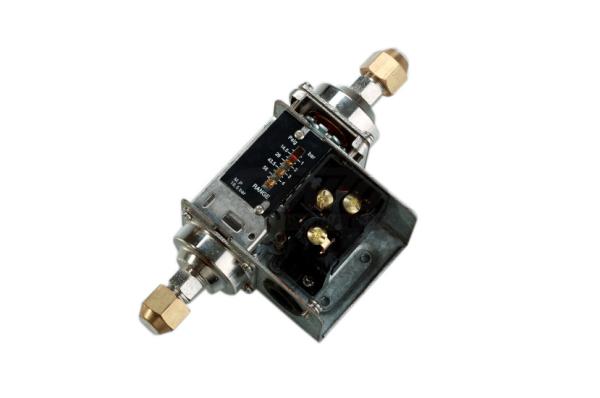

Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
Specifications
Brand Name :
Saiko
Model Number :
SKDP88
Certification :
CE
Place of Origin :
Nanjing
MOQ :
1PC
Price :
Negotiation
Supply Ability :
5000PCS/month
Delivery Time :
20 workdays
Packaging Details :
Individual packing
Product Name :
Differential Pressure Controller
Connection Type :
SAE, ODF or capillary tube
Max. Current :
8A
Max. Voltage :
250VAC
Adjustable Range :
Min:0.5 Max:2
Max.Bellows Press :
17bar
Description

Differential Pressure Controller with SPDT Contact for Air Condition

SKDP88 differential pressure control is normally used in gas or liquid system to control the pressure difference between the gas/liquid pipeline and the circuit. A typical application is to install the controller in the bypass pipeline near the system pump. When the system pressure difference increases and exceeds pre-set pressure, the control valve will open and more liquid/gas goes through the side valve, which will reduce the pressure differential between these two pipes of the water system. On the opposite, the pressure differential will increase between these two pipes of the water system.

Performance

The set point can be determined quickly through the direct-reading scale.

The pressure difference setting can be changed without moving the cover.

Electrical parameter

Switch connection ratings: 5amp 125/250VAC 1/4 H.P., 125VAC Fine Silver Contacts.

Technical parameter (SKDP88B)

Adjustable range: 0.06MPa ~ 0.35MPa (factory set: 0.1Mpa).

Burst Pressure: 1.7Mpa

Temperature: ≤85℃

Repeatability: ≤1.5%

Setting accuracy: ≤5%

Life of switch: ≥ 50 thousands times

Max.△P: 0.2bar

Operating differential pressure: 0.02Mpa (fixed)

Type and specification: Unit: Mpa

Type Range MOP
SKDP88S 0.01~0.06 0.50
SKDP88A 0.03~0.20 1.50
SKDP88B 0.06~0.35 1.50
SKDP88D 0.2~1.2 3.0

Dimension
