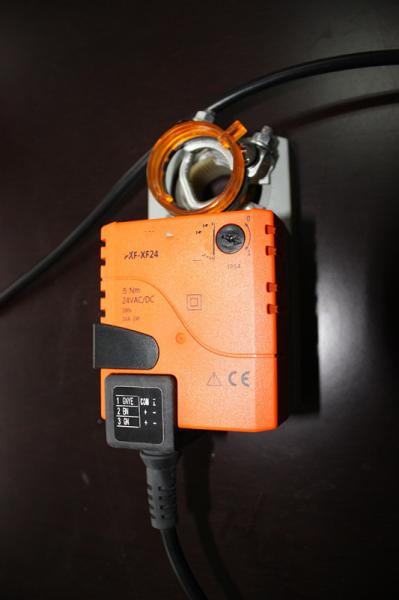

Electric Motorized Air Damper Actuator In Air Conditioning IP54 With Maintenance Free
Electric Motorized Air Damper Actuator In Air Conditioning IP54 With Maintenance Free
Specifications
Brand Name :
SAIKO
Model Number :
SK-XF24
Place of Origin :
Nanjing
MOQ :
1PC
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
500Set/month
Delivery Time :
5-8 workdays
Certification :
CE
Structure :
Electric Damper Actuator
Power :
Electric
Torque :
5Nm
Voltage :
AC24V 50/60Hz;DC24V
Protect Class :
IP54
Control Signal :
Two Type, Single Line
Description

Electric Motorized Air Volume Control Automatic Damper Actuator

Damper actuators for operating air control dampers in ventilation and air-conditioning systems for building services installations.

  • For air control dampers up to approx. 1m2
  • Torque 5 Nm
  • Nominal voltage AC/DC 24V
  • Control: Open –close or 3-point
  • Integrated auxiliary switch

Electrical data

Nominal voltage AC 24V, 50/60Hz, DC 24V

Nominal voltage range AC/DC 19.2 …28.8V

Power consumption In operation 1 W @ nominal torque

At rest 0.2W

Auxiliary switch 1×SPDT, 1mA…3(0.5)A, AC250V

(0…100% adjustable)

Functional data

Torque (nominal torque) Min.5Nm @ nominal voltage

Direction of rotation Reversible with switch

Manual override Gearing latch disengaged with pushbutton, self-resetting

Angle of rotation Max.95°, limited on both sides by means of adjustable,mechanical end stops

Running time 150 s

Safety

Protection class Ⅲ Safety extra-low voltage

Degree of protection IP54 in any mounting position

Ambient temperature range -30…+50℃

Non-operating temperature -40…+80℃

Ambient humidity range 95% r.H., non-condensating(EN 60730-1)

Maintenance Maintenance-free

Weight Approx.500g

Dimension

Electric Motorized Air Damper Actuator In Air Conditioning IP54 With Maintenance Free

Writing Diagram

Electric Motorized Air Damper Actuator In Air Conditioning IP54 With Maintenance Free
