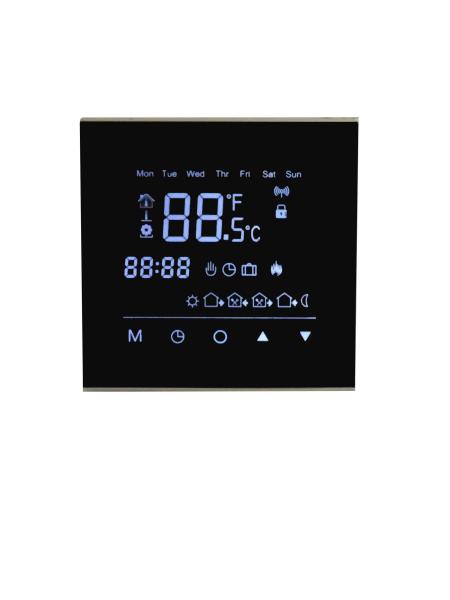

Electronic touch screen Room Thermostat For Floor Heating System

Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.

The SK81 series Touch Screen Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.

Programming
Choice of 7 day, 5/2 day programmable or
non-programmable (installer selectable);
6 time and 4 temperature settings every day;
pre-programmed or personalized schedule;

Display

A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Each thermostat is equipped with built-in sensor
and a 3 meter floor sensor. The floor sensor can be extended.

Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:121mm x 80mm x18mm
* Backlight life: 5,000 hours.

Useful settings
Vacation mode(frost protection mode)
Switching differential setting
Floor temperature limit

Packing details
1pc/inner box, 50pcs/carton
Carton size: 51x22x36cm
