200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
Specifications
Brand Name :
SAIKO
Model Number :
SK306
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
30000PCS/MONTH
Delivery Time :
15 workdays
Packaging Details :
50PCS/CTN(CTN SIZE:510*210*320mm)
Type :
HVAC systems
Power suppy :
220VAC±10%, 50/60HZ
Accuracy :
±1℃ for room thermostat
Set-point Range :
5~35℃
Sensing Element :
NTC sensor
Rated Load :
200W
Description

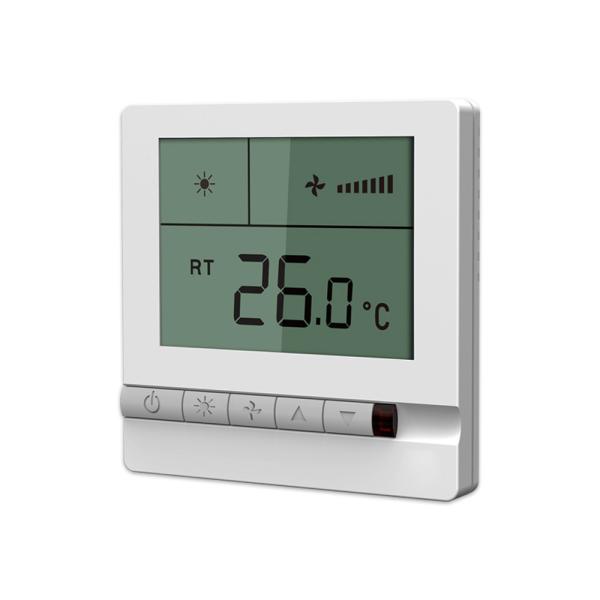

Digital Fan Coil Unit Thermostat

The SK306 series thermostat is a stand-alone microprocessor based thermostat with LCD display .

The thermostats are designed to control room temperature by way of on/off controlling the fan coil units(with or without motorized valves), air damper or electric heaters in heating, cooling and ventilation applications.

To turn the thermostat on/off

1. The power on and off of the thermostat can be realized through manual operation.

The power on/off condition can be switched through press on/off button.

2. The primary power up of the system is under the power off condition.

To adjust thermostat temperature

1. Press △ or ▽ to adjust the temperature, the flashing default temperature is 20℃;

2. Press △ to increase temperature by 1℃;

3. Press ▽ to decrease temperature by 1℃;

4. The system will exit automatically without any operation in 5 seconds.

Temperature calibration

When the thermostat is in stand by state, press “” for 3 seconds, while display “XX” ℃ (RT symbol doesn’t show), press “up” or “down” key to adjust the temperature to the correct value, it will accept automatically in 5 seconds.

Heating/Cooling setting

Press “M” key to select heating or cooling mode.

Fan speed setting

With each press of the “fan speed key”, the thermostat will change the speed among low, medium, high and auto speed. In Auto” mode, the speed automatically change according to the difference between room temp. and set temp.

To set timer

When the thermostat is turned on, press “” until the time start flashing, using the up or down key to set the desired time. It will accept automatically in 5 seconds. The thermostat is now set to be turned on/off at the desired time.

Writing diagram

200 Watt Digital Fan Coil Thermostat HVAC Systems With NTC Sensor
