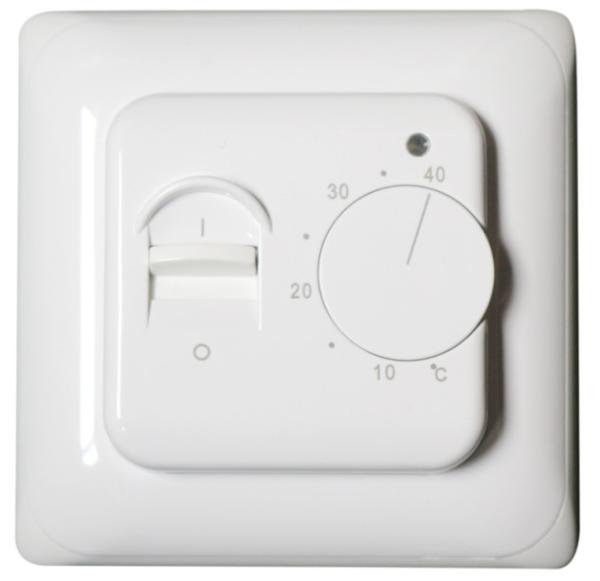

5VA Manual Heated Floor Thermostat For Underfloor Heating System
5VA Manual Heated Floor Thermostat For Underfloor Heating System
5VA Manual Heated Floor Thermostat For Underfloor Heating System
5VA Manual Heated Floor Thermostat For Underfloor Heating System
Specifications
Brand Name :
Saiko
Model Number :
SK70.XX
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
20000PCS/Month
Delivery Time :
5-8 days
Packaging Details :
1pcs to a small box, 64pcs/ carton, Size of carton: 43cm*39cm*29cm
Voltage :
230VAC,50Hz
Type :
Floor Heating
Current load :
16A
Protection grade :
IP20
Housing material :
Self-extinguishing PC
Power consumption :
5W
Description

Manual Electric Heating Thermostat for Underfloor Heating System

- Mounted on the surface of the wall indoors

- Temperature control range +5/+40℃

- Applied in the auto-control system of space heating

- LED turned onwhile heating

Technique Parameters

Voltage: 220VAC

Power consumption: 5VA

Temperature control range: 5~40 ℃

Temperature limit range: 25~55 ℃

Power save mode temperature: 5℃

Degree of protection provided by enclosure: IP20

Outer sensor: length of cable 3m

Calibrating

When indoor temperature reaches steady state, user could calibrate the heating thermostat to make the temperature reading be the same as the real room temperature.

Restriction of Control Knob Adjusting Range

5VA Manual Heated Floor Thermostat For Underfloor Heating SystemThe lock mechanism under the controlknob can be used to restrict the adjusting temperature range. User can lock the adjusting range (e.g.20-25℃) as long as loosing the screw C (shown in Fig.2).

Mounting of Outer Sensor

Please place the casing under the floor with the outer sensor in, the terminal of which should be thickened and placed on the top of the concrete layer. Sensor cable can be extended to 50m with other cables if necessary. If multi-core cable is used as extended cable, extra cable core should not be used for power supply (e.g. power supply for heating cable) for avoiding the interference of voltage signal to the heating thermostat. If there is shielded cable in the extended cable, shielded cable should not be connected to ground but to terminal 7. It is recommended that the extended cable and casing should not be shared with others.

Outer sensor and its resistance

Temperature( ℃) Resistance(Ω)
5 22070
10 17960
20 12091
30 8312
40 5827

Package

Individual white box and outer carton, 64pcs in one carton

5VA Manual Heated Floor Thermostat For Underfloor Heating System

Component Name

5VA Manual Heated Floor Thermostat For Underfloor Heating System

Writing Diagram

5VA Manual Heated Floor Thermostat For Underfloor Heating System
