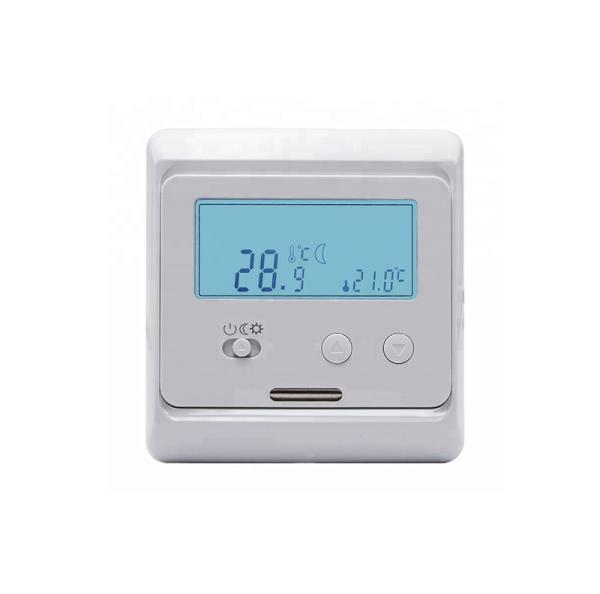

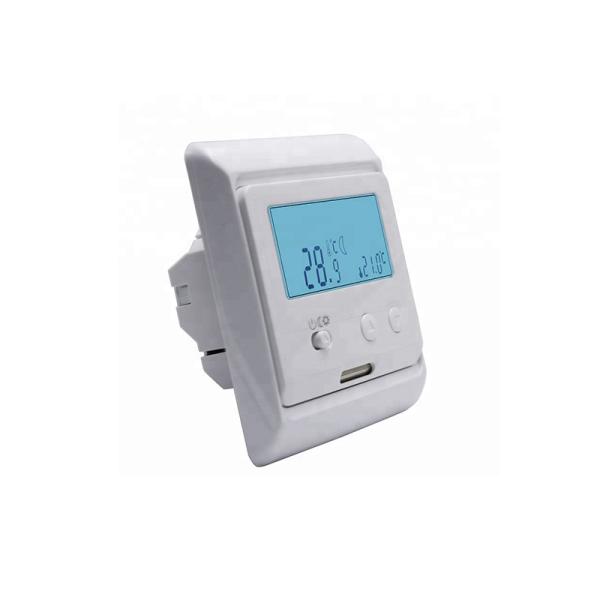

230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement
Specifications
Brand Name :
Saiko
Model Number :
SK40
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
10000PCS/WEEK
Delivery Time :
10 workdays
Packaging Details :
inner box: neutral packing with label; 64pcs/ctn
Type :
Floor Heating Systems
Voltage :
230V, 50Hz
Switching differential :
0.5℃~10℃ (factory setting: ±1℃)
Sensor :
NTC sensor
Setting range :
5-95℃
Switch differential :
0.5-10 adjustable
Description

Electric Heated Room Thermostat Under Floor heating

Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.

Technical data

Voltage: 220V-240V

Power Consumption: 2W

Setting Range: 5-35℃(Can adjust to 5-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Sensor: NTC internal/external sensor

Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

Ambient temperature:-5-50℃

Protection housing: IP20

Housing material: Anti-flammable PC

Package

Individual white box and outer carton, 64pcs in one carton

Packaging Details UNIT WEIGHT: 0.35KG/PC;
64 PCS/CTN;
GROSS WEIGHT: 22KG;
PAPER BOX PACKING;
BOX DIMENSION: 42*40*29CM
Delivery Detail Shipped in 15 days after payment

Dimension:mm

230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement

Display symbols

230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement

Circuit Diagram

230V 50Hz Underfloor Heating Smart Thermostat , Electric Heat Thermostat Replacement

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
