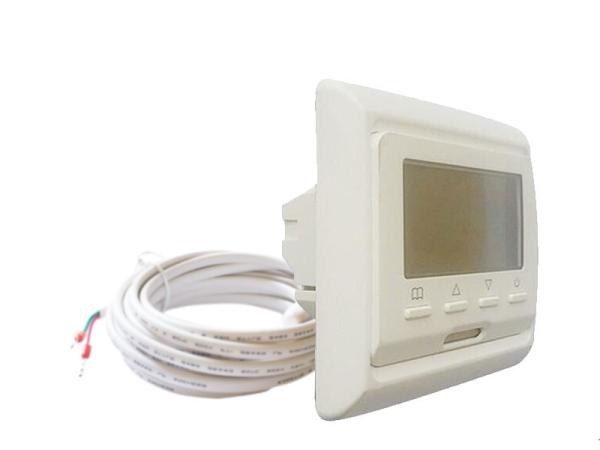

50/60HZ Wall Mounted Heated Floor Thermostat HVAC Systems CE RoHS Listed
50/60HZ Wall Mounted Heated Floor Thermostat HVAC Systems CE RoHS Listed
Specifications
Brand Name :
Saiko
Model Number :
SK51
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000PCS/WEEK
Delivery Time :
3-5 workdays
Packaging Details :
64PCS/CTN (CTN SIZE:435*395*290mm)
Type :
HVAC Systems
Voltage :
AC230V
Current load :
16A floor heating thermostat
Setting range :
+5~+90℃ floor heating thermostat
Floor sensor :
Rubber-thermoplastic NTC sensor
Housing material :
Self-extinguishing PC
Description

Electric Heating programmable Room Thermostat Under Floor heating
Weekly circulation, it is possible to set 6 periods called events each day with different temperatures, also you can select "manual mode" or "temporary control mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.

Technical data

Power Supply AC200-240VAC 50/60HZ
Accuracy ±0.5ºC
Probe sensor NTC
Power Consumption <0.3W
Load current 3A(water heating),16A(electric heating)
Temperature Adjustable Range 5°C~90°C( can adjust to 35°C~90°C)
Limit Temperature Range 5°C~60°C( factory setting: 35°C)
Output Switch relay
Insulating condition Normal environment
Running program Set per 1 week as a cycle
Installation Wall mounted
Application Water Floor Heating System
Electric Floor Heating System
Infrared Heater System
Certificate CE,RoHS


Selection Table

Model Current Application
E51.713 3A Built-in& floor sensor, floor limit sensor, weekly programming
E51.723 3A Built-in& floor sensor, floor limit sensor, weekly programming. A potential-free output
E51.716 16A Built-in& floor sensor, floor limit sensor, weekly programming


Advanced setting (qualified person preferred)
When the thermostat is turned off, You can press"" and turn on it at the same time ,then you can enter the mode of advanced setting.

Symbol Setting or
1 ADJ Temperature calibration

Adjust measured temperature
2 SEN Sensor mode

IN: built-in sensor
OUT: floor sensor
ALL: both sensors
3. LIT Limitation temperature

Adjust limitation value,
Limitation range:5℃~60℃
4 DIF

Switching
differential

 Adjust switching differential
5 LTP Antifreeze function Turn on/off Anti-frozen function
6 PRG Set vacation mode

00: 5/2 day mode

01: 6/1 day mode
02: 7 day mode
7 RLE Potential- free output and main power output in the same/different way

Change the present

linkage way
8 DLY Delay time of Potential- free output Change linkage delay time
9 HIT Max temperature Limitation temperature setpoint
AFAC Reset to factory settings Press""and hold for 5s,all parameters will be reset


50/60HZ Wall Mounted Heated Floor Thermostat HVAC Systems CE RoHS Listed
50/60HZ Wall Mounted Heated Floor Thermostat HVAC Systems CE RoHS Listed
50/60HZ Wall Mounted Heated Floor Thermostat HVAC Systems CE RoHS Listed

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated
