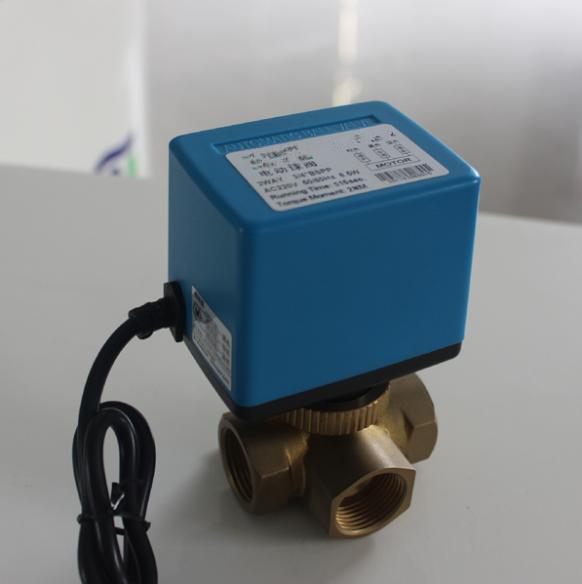

6 W Mixing Water Electric Ball Valve No Leakage For Heating / Cooling Systems
6 W Mixing Water Electric Ball Valve No Leakage For Heating / Cooling Systems
Specifications
Brand Name :
SAIKO
Model Number :
SQA
Place of Origin :
Nanjing
MOQ :
10sets
Price :
Negotiation
Supply Ability :
2000sets/week
Delivery Time :
5 workdays
Packaging Details :
one set in one white box, 20 sets in one carton
Certification :
CE
Structure :
Ball
Material :
Brass
Media :
water, 50% glycol
Port Size :
1/2'', 3/4'', 1''
Power :
motorized
Application :
HVAC system
Description

Mixing Water 3 way Valve Electric Ball Valve

SQA series of 2-way and 3-way motorised ball valves intened for use in heating and cooling systems. Suitable for hot and chilled water.

Features

Smooth flow, no clog

High flow capacity

Suitable for any specifications of fan coil unit.

Tight close, no leakage.

The power is cut off when the valve reaches the on/off position. This ensures long life service for the actuator.

The actuator cover adopts close strcuture which is resistive to humidity and ensures reliable operation for motor.

Models

SQA15 2-way, DN15 (15mm), 3-wire; SQA15-3 3-way, DN15 (15mm), 3-wire

SQA20 2-way, DN20 (20mm), 3-wire; SQA20-3 3-way, DN20 (20mm), 3-wire

SQA25 2-way, DN25 (25mm), 3-wire; SQA25-3 3-way, DN25 (25mm), 3-wire

SQA25 2-way, DN32(32mm), 3-wire;

Technical data

Valve type…………………2-way/3-way ball valve

Pressure class……………..PN16(1.6Mpa)

Supply voltage: 220VAC±15%, 50/60Hz, 110V, 24V

Connection……………………..G(inner thread)

Fluid temperature………….2℃~90℃

Ambient temperature…………....<65 centigrade

Relative humidity………………..max 95%

Valve body…………….Bronze

Protection class…………….IP55

Power consumption…………..6W(only when valve position is changed)

Opening and closing time……………..16S/50Hz,12S/60Hz
