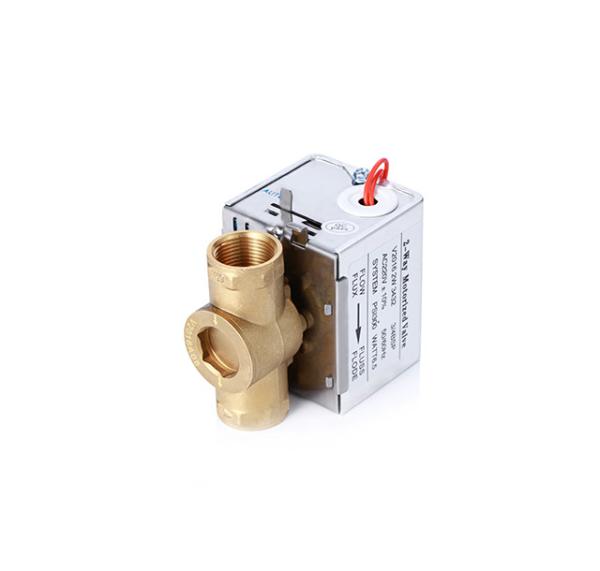

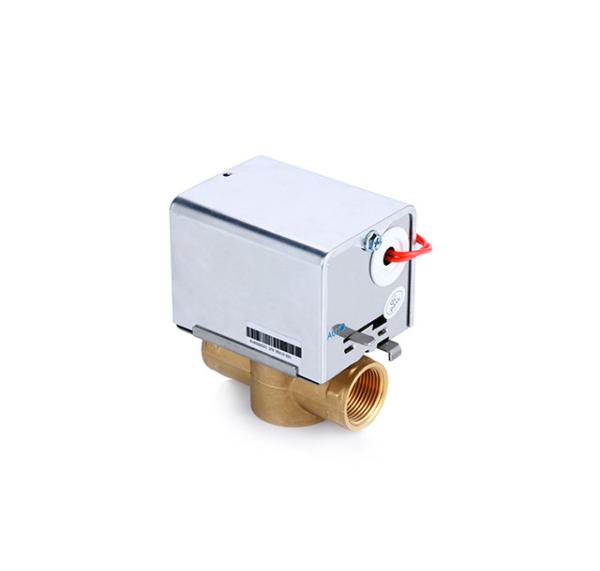

CE Listed Central Heating Motorized Zone Valve 22mm / 28mm For Hot Water
CE Listed Central Heating Motorized Zone Valve 22mm / 28mm For Hot Water
CE Listed Central Heating Motorized Zone Valve 22mm / 28mm For Hot Water
CE Listed Central Heating Motorized Zone Valve 22mm / 28mm For Hot Water
Specifications
Brand Name :
Saiko
Model Number :
SKC
Place of Origin :
Jiangsu
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
10 workdays
Packaging Details :
cartons
Certification :
CE
Standard or Nonstandard :
Standard
Structure :
Ball
Pressure :
Medium Pressure
Power :
Motorised
Material :
Brass
Temperature of Media :
Medium Temperature
Media :
Water
Port Size :
15.20.25.32MM
Description

2 Way Brass Material Zone Valve for Hot Water

SKC series brass motorized valves are primarily designed to control the flow of water or steam in response to the demand of a controller in zone and fan coil applications.
The electric on/off actuator provides a two positions control.

Valve's actuator can be installed after valve body has been installed onto pipe.
The valves are resistant to high moisture conditions, and feature a removable head.

FEATURES
Pop-top actuators can be removed at the push of a button
in 22mm, 28mm sizes

2 port an 3 port available
100% tight shut off
Manual lever
Spring return
Replaceable actuators

Specifications
Standard motor voltage: 230v 50HZ 7 watts; (120v,24v available)
Operating time: opening 10~15 secs, spring return 4~5 secs.
Operating pressure: 300 psi / 2.0 Mpa
Norminal pressure: 233 psi / 1.6 Mpa
Water temperature: 0 ~90 deg C

Ambient temperature: 0~50 deg C
Valve body: Brass forging
Connections: 22mm compression;28mm compression;
Lead length: 1 Metre, 5 core

Pipe fitting sizes: 22mm&28mm compressionfitting, 3/4"&1" BSP

3 year warranty

Manual lever for filling up and draining down

Spring return action

Models

Model Description Kv/Cv Value
SKC7315 2-way motorized valve,DN15(1/2'') 2.2/2.5
SKC7320 2-way motorized valve,DN20(3/4'') 3.0/3.5
SKC7325 2-way motorized valve,DN25(1'') 6.9/8.0
SKC3315 3-way motorized valve,DN15(1/2'') 2.2/2.5
SKC3320 3-way motorized valve,DN20(3/4'') 3.0/3.5
SKC3325 3-way motorized valve,DN25(1'') 6.9/8.0
SKC7315AW 2-way motorized valve,DN15(1/2'') 2.2/2.5
SKC7320AW 2-way motorized valve,DN20(3/4'') 3.0/3.5
SKC7325AW 2-way motorized valve,DN25(1'') 6.9/8.0
SKC3315AW 3-way motorized valve,DN15(1/2'') 2.2/2.5
SKC3320AW 3-way motorized valve,DN20(3/4'') 3.0/3.5
SKC3325AW 3-way motorized valve,DN25(1'') 6.9/8.0
