2W Water Radiant Underfloor Heating Thermostat For Room Temperature Control
2W Water Radiant Underfloor Heating Thermostat For Room Temperature Control
Specifications
Brand Name :
Saiko
Model Number :
SK40
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000PCS/WEEK
Delivery Time :
10 workdays
Packaging Details :
inner box: neutral packing with label; 64pcs/ctn
Type :
Floor Heating Systems
Voltage :
230V, 50Hz
Power Consumption :
2W
Sensor :
NTC internal/external sensor
Setting range :
5-95℃
Protective housing :
IP20
Description

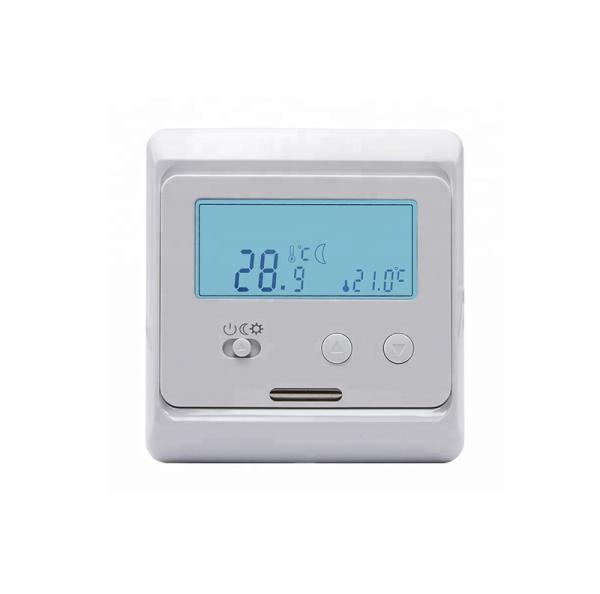

Water Radiant Heating Thermostat For Room Temperature Control

Manual heating thermostat with LCD screen and energy saving mode. The thermostat is used for the control of floor heating mat or on/off valve actuator in HVAC system.

Technical data

Voltage 220V/230V Power consumption 2W
Sensor NTC internal/external sensor Ambient temperature -5-50℃
Housing material Self-extinguishing Setting Range 5-35℃

Advanced setting

(qualified person preferred):

Usually finished at mounting thermostat.

Press + key simultaneously sliding the power on button to energy saving mode when in power off state.

Package

Individual white box and outer carton, 64pcs in one carton

Dimension:mm

2W Water Radiant Underfloor Heating Thermostat For Room Temperature Control

Display symbol

2W Water Radiant Underfloor Heating Thermostat For Room Temperature Control

Wiring Diagram

2W Water Radiant Underfloor Heating Thermostat For Room Temperature Control

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.

Sensor failure

EO: Built-in sensor short-circuited or disconnected.

E1: External sensor short-circuited or disconnected.

When shows E0/E1 error, thermostat must be checked till the error is eliminated.

Our company

About Us:

● 5 years experience
● 8 professional engineers
● 30 employees
● 1500㎡ factory
● 2 years after-sales service
● ISO,CE,RoHS certified
● Annual sales 3,000,000PCS room thermostats and valves.

Quality Control:

● Wide Voltage test
● Fire prevention test
● Insulation test
● Aging test
● Overload test
● ......etc.
