Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat
Specifications
Brand Name :
Saiko
Model Number :
SK20
Certification :
CE,RoHs
Place of Origin :
Jiangsu
MOQ :
64 pcs
Price :
FOB $3~$4
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/month
Delivery Time :
10 workdays
Packaging Details :
64 pcs in one carton
Voltage :
AC 230V
Power consumption :
5W
Ambient temperature :
-5℃~50℃
Protective housing :
IP20
Housing material :
Self-extinguishing PC
Swithcing differential :
±0.5℃
Description
Specifications:
-The thermostat is the international universal heating electronic thermostat.
-It use installation of direct wall and have a wide range of controlling temperature. Fool type control interface is easy to use.
-LED indicates the working state and it is easy for users to understand operation of the thermostat.
-It is applicable to the heating system of the temperature automatic controlling and provides users with a comfortable, safe, energy-saving and high standard heating environment.
-Access to external sensors can realize double temperature double controlling (Built-in sensor measures temperature and external sensor makes the over-temperature protection).


Application:
For the control of warm-water(floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings

Placement of thermostat:
Thermostat is to be mounted on the wall with free air circulation around it . Furthermore it has to be placed where it is not influenced by any other heating sources (e.g. the sun), draft from
doors or windows, or by the temperature of an exterior wall.

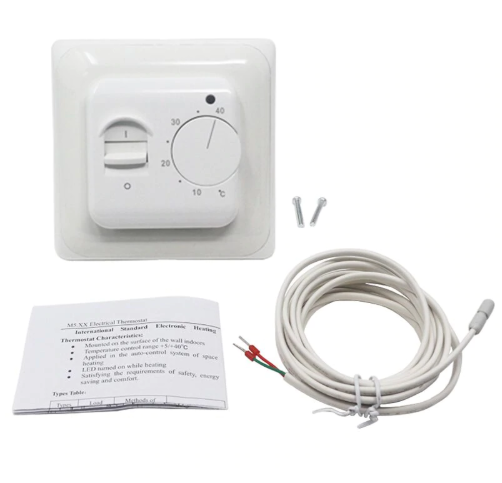

Mounting of floor sensor:

Floor sensor should be placed in installation pipe which is embed-ded in floor, the pipe is thickened in the end and placed as high as possible in the concrete layer. Sensor cable may be extended up to 50 m with separate cable f or power current. Two conductors in a multi-conducting cable, which e.g. is used for supply of heating cable, may not be used. Voltage signals, which may disturb the function of the thermostat, may occur. If the cable is used with screen,the screen may not be connected to the ground, but must be
connected to terminal 7, the best installation is attained with a separate cable for the sensor, which is then mounted in a separate conduit.

Temperature and Value of floor sensor:


Temperature(℃) Value(Ω)
5 22070
10 17960
20 12091
30 8312
40 5827


Dimensions:


Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat

Wiring diagram:

Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat

Selection:

Model Current Sensor Application
SK20A 16A built-in sensor for control of electric heating devices
SK20F 16A floor sensor for control of electric heating devices

Payment:

1. We accept T/T,West Union,and Paypal.
2.All major credit cards are accepted,and we received it in 24 hours
3.Payment must be received within 10 business days of auction closing.

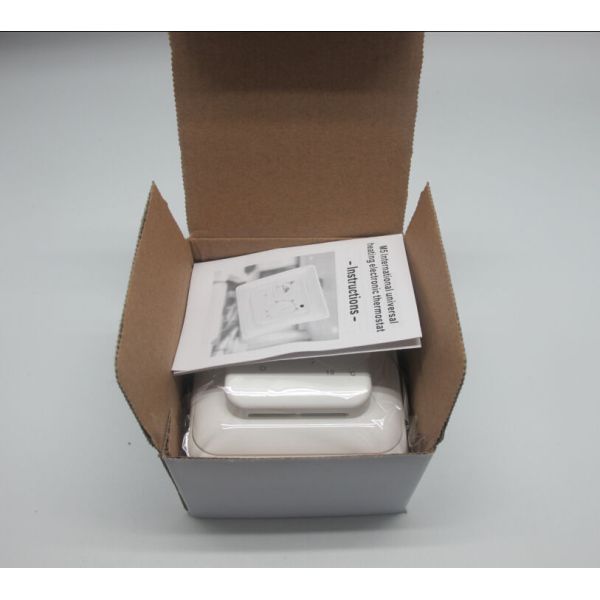

Package:

Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat

Customized Heated Floor Thermostat 2- Position Control Electric Underfloor Thermostat

Note:
1. Please allow 1-2mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
