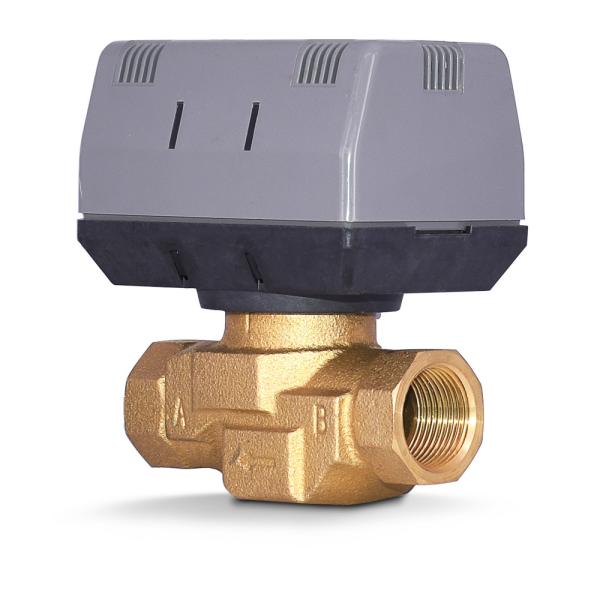

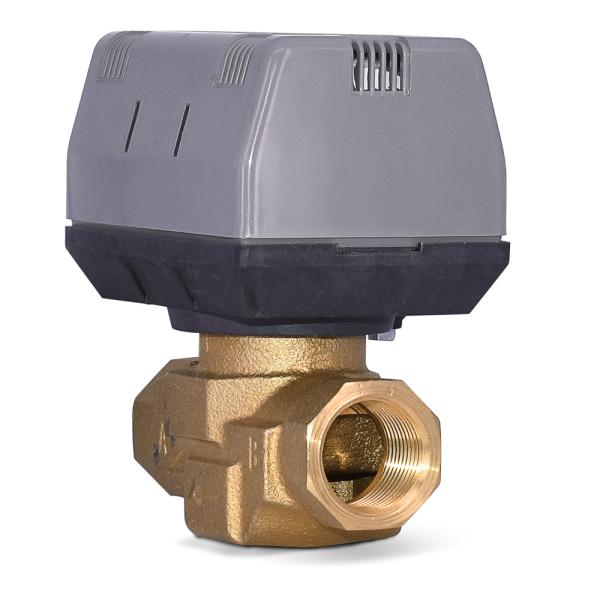

2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
2 Way / 3 Way Brass Motorized Zone Valve 1.6MPA For Cold And Hot Water
Specifications
Brand Name :
Saiko
Model Number :
SKD
Certification :
CE,Rohs
Place of Origin :
Nanjing,China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-15 working days
Packaging Details :
1pc/inner box, 20pcs/carton
Driving voltage :
220VAC(or 12V,24V,110V)
Power Consumption :
5VA(only in on-off process)
Valve pressure :
1.6MPA
Applicable medium :
cold water,hot water
Material :
Brass
Description

2way , 3way Motorized Control Valve 1.6MPA

Description

The AE-D series 2-position hydraulic valves are used in domestic and small commercial applications to control the flow of hot and/or cold water or glycol solution up to 50% concentration. These 3-Way valves are designed for ON-OFF control and can be piped for diverting or mixing valve applications for domestic hot water service, in central heating and/or cooling systems; or for individual room temperature control (fan coil, radiator or convector applications).

Technical Specifications

Power supply 230VAC (or 12V/24V/110V are available on request)
Power consumption 5VA (only during valve position change)
Nominal pressure 1.6Mpa
Allowed pressure differential 1.0Mpa
Media hot or chilled water
Opening and closing time 16S 16S
Media temperature 1-95°C
Ambient temperature 0-65°C
Connection inner screw (or customary)
Protection Class IP40
Approval CE

Models

Model Port Size L H Kv
SKD215

2-way

 1/2’’ DN15 90 114 4.5
SKD220 3/4” DN20 95 116 5.7
SKD225 1” DN25 105 128 8.7
SKD315

3-way

 1/2’’ DN15 90 133 4.3
SKD320 3/4” DN20 95 133 5.5
SKD325 1” DN25 105 144

8.3
