Specifications
Place of Origin :
China
Brand Name :
Feihong
Model Number :
TZ-12
Certification :
contact with Feihong
Price :
RMB 30000 / set EXW
Packaging Details :
wooden case
Delivery Time :
within one month
Payment Terms :
T/T,cash,
Supply Ability :
1000 pcs/month
MOQ :
1 piece
Description

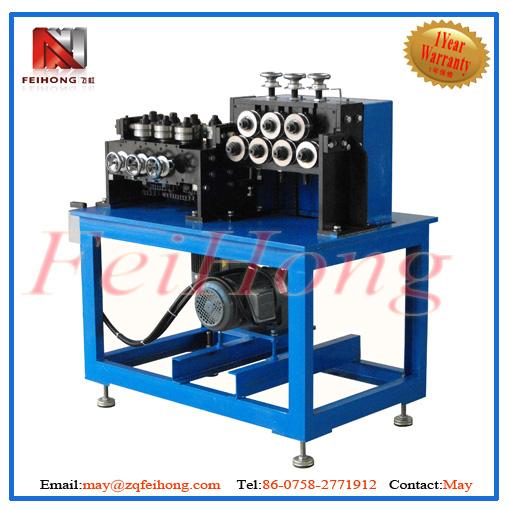

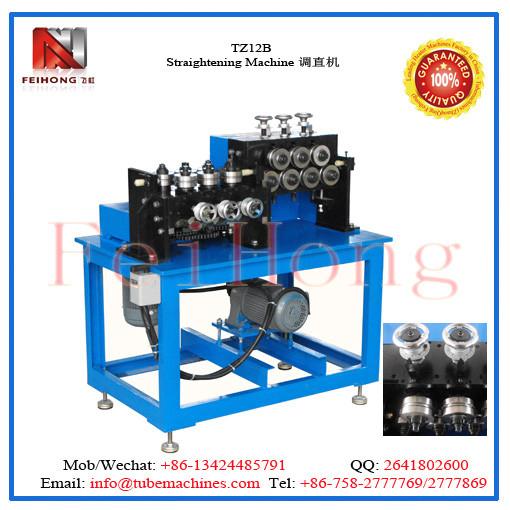

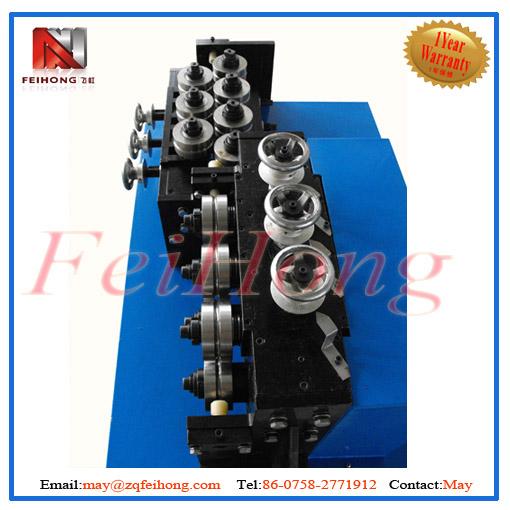

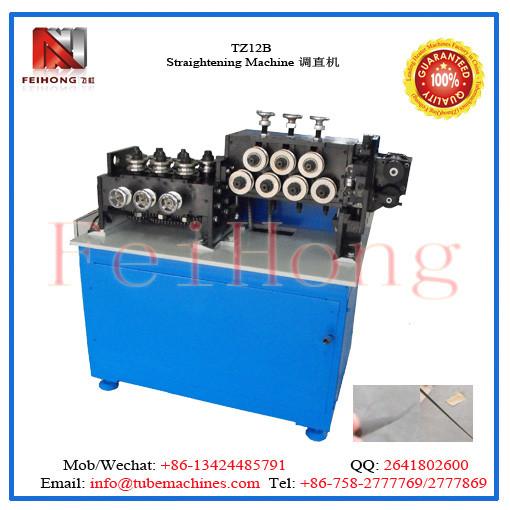

TZ-12 Straightener comprises of 12 straightening rollers, 6 in a group in the shape of a triangle, driven by reduction motor and with an in- between angle of 90°. Three rollers of the six are adjustable. And since the central distance among the rollers is not long, shorter tubes can also be straightened. Tubes of different diameters require different straightening rollers.

heater tubular straighter|TZ-12 Straightening Machine|heating pipe straightening m/c

Product:

Straightening Machine
Item No: TZ-12
heater tubular straighter|TZ-12 Straightening Machine|heating pipe straightening m/c
MAIN TECHNICAL PARAMETER:

Min. straightening length:

250

Straightening tube diameter:

Φ4–Φ24mm

Straightening speed:

18m / min. adjustable

Power source:

380V 50HZ 1.1KW

heater tubular straighter|TZ-12 Straightening Machine|heating pipe straightening m/c

Com.: Zhao Qing City Feihong Machinery & Electrical Co.Lt
Add.:Shui Ji Village, Dachong,Duanzhou District, Zhaoqing City, Guangdong Province, China
Email:info@tubemachines.com may@zqfeihong.com
Mob/Whatsapp/Wechat : (86)13424485791
Tel.:(86-758) 2777769 / 2777869/ 2777969
Web.:http://tubemachines.com http://zqfeihong.com
