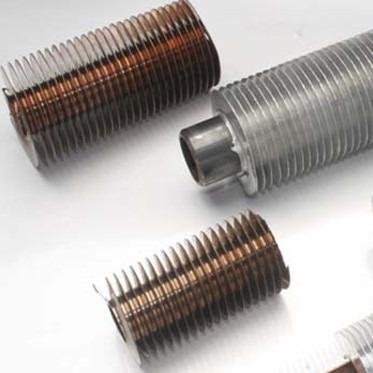

Inner Grooved Copper Low Fin Tube For Heat Exchanger And Air Cooler
Inner Grooved Copper Low Fin Tube For Heat Exchanger And Air Cooler
Specifications
Brand Name :
Reliance
Model Number :
DR
Certification :
CE,ISO...
Place of Origin :
China.Imported materials are available.
MOQ :
N/A
Price :
N/A
Payment Terms :
T/T, L/C
Supply Ability :
Daily capacity up to 3,000 Meters.
Delivery Time :
Ex-work within 1 month on receipt of order.
Packaging Details :
(1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Company Type :
Manufacturer,Importer & Exporter
Fin tube Type :
DR-Extruded fin tube
Fins Type :
Solid
Origin :
China
Nearest Port :
Shanghai Port,China
Accessories :
Tube support box, Clamp & Spacer box
Description

Inner Grooved Copper Low Fin Tube For Heat Exchanger And Air Cooler

Product Description
Material

1000 series:1050. 1070. 1100
2000 series:2011. 2014. 2017. 2018. 2024.

2025. 2117. 2218. 2618.
3000 series:3003. 3004.
4000 series:4032. 4043. 4543.
5000 series:5005. 5050. 5052. 5056. 5083.5086. 5154. 5205. 5252. 5254. 5356. 5357.5454. 5456. 5457. 5652. 5657.

6000 series:6005. 6011. 6053. 6351. 6061.

6101. 6151. 6201. 6261. 6262. 6063. 6463. 6066.6070

7000series:7001. 7005. 7072. 7075. 7076.

7175. 7178. 7079

8000 series:8011,8021,8079 etc

Standard

GB/T17748-2008

Certification

ISO9001,ISO14001, ISO9001:2000

Temper

T4,T5,T6,H111,H112

Surface treatment

chemical treatment:

mill finish, anodizing, powder coated, sandblasting, electrophoresis etc

Mechanical processing method:

Mechanical drawing, mechanical polishing, sandblasting
Color silvery white, black, golden, champagne, dark bronze or according to your requirement

Classify

shape:round/square/ special pipes

extrusion way points:Seamless aluminum pipe and normal extrusion

accuracy of the points:Ordinary aluminum pipe and precision tube, precision aluminum pipe generally need to rework after extrusion, such as cold drawn precision, rolling

thickness:Ordinary aluminum pipe and thin wall aluminum tube

performance:Corrosion resistance and light weight
Specification

Length:1-22m or as per request

OD 4-20.0MM ID >=0.5MM

Tolerance :+/-0.01mm

Mechanical property

Alloy No.

Temper

A1050,A1060, A1070,A1100

O,H12,H22,H14,H16,H18, H24,H26,etc

3A21,A3003,A3105,A3004

O,H14,H18,H24,etc

A5052 ,A5005,A5083,A5754

O,H18,H24,H32,H34,H111,H112 ,etc

A6061,A6082,A6063

T4,T6, T651,etc

A8011

O,H12,H22,H14,H16,H18,H24,H26, etc

Composition Of Aluminum Alloy

Alloy Si Mg Fe Cu Mn Zn Cr Ti
1050 0.25 0.05 <0.05 <0.05 <0.05 <0.05 - <0.03
3003 0.6 - 0.7 0.05-0.20 1.0-1.5 0.10 - -
5052 0.25 2.2-2.8 0.4 0.1 0.1 0.10 0.15-0.35 -
5083 0.4 4.0-4.9 0.4 0.1 0.4-1.0 0.25 0.05-0.25 0.15
6005 0.6-0.9 0.4-0.6 <0.35 <0.1 <0.1 <0.1 <0.1 <0.1
6061 0.4-0.8 0.8-1.2 <0.70 0.15-0.4 <0.15 <0.25 0.04-0.35 <0.05
6063 0.2-0.6 0.45-0.9 <0.35 <0.1 <0.1 <0.1 <0.1 <0.1
6082 0.7-1.3 0.6-1.2 <0.50 <0.1 0.4-1.0 <0.2 <0.25 <0.10


Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry


Specifications:

This Type of Bimetallic Finned Tube is Extruded with Single One material.

Items General Materials Popular ASTM Materials
Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.


All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
  2. The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
  3. DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
  4. DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
  5. In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
