High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
High Purity N8 Pure Nickel Wire Excellent Corrosion Resistance And Good Electrical Conductivity
Specifications
Brand Name :
Senphus
Model Number :
N8
Certification :
ISO9001
Place of Origin :
China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Place of Orig. :
Jiangsu, China
Type :
Pure Nickel N8
Density :
8.9
Thermal Conductivity :
90.7
Electrical Resistivity at 20°C :
9.6
Color :
Silvery white
Tensile strength（N/mm²） :
≥380
Elongation（% at L0=100 mm） :
15-25
Thermal Linear Expansion Coeff. (20-95 °C) :
13.3
Description

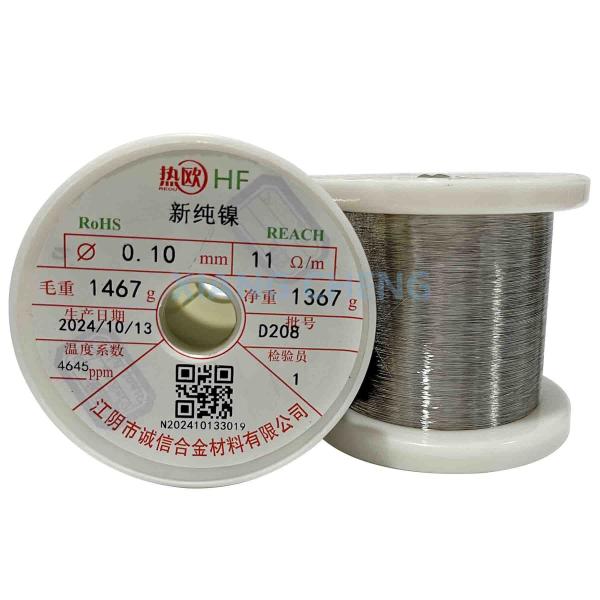

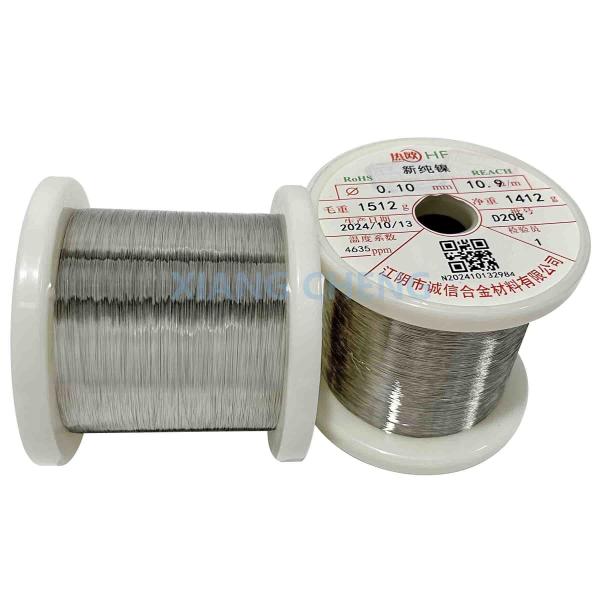

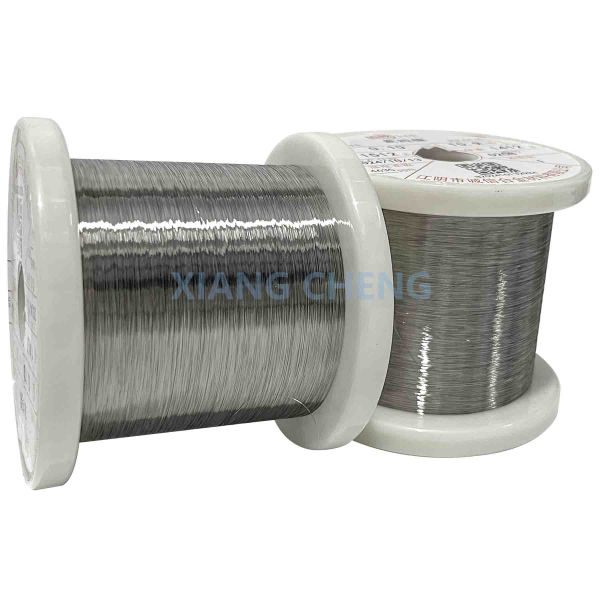

High-Purity N8 Pure Nickel Wire for Excellent Corrosion Resistance and Good Electrical Conductivity

N8 Pure Nickel Wire is a high-purity nickel alloy known for its exceptional corrosion resistance, excellent formability, and good mechanical properties. It is typically used in applications where corrosion resistance and high-purity characteristics are critical. N8 Pure Nickel Wire is a high-purity, non-magnetic material known for its excellent corrosion resistance, good mechanical properties, and ease of fabrication. Its combination of properties makes it ideal for demanding applications in electronics, marine, chemical processing, and high-temperature environments.

Nominal Chemical Composition (%)

AlloyNiCFeSiMnSCuMg
N8≥ 99≤ 0.2≤ 0.3≤ 0.15≤ 0.2≤0.015≤0.15≤0.1

Size Range

TypeDia. (mm)Width (mm)Thickness (mm)
Wire0.04 - 12.0--
Ribbon-2.0≥ 0.08

Physical Properties (at room temperature)

AlloyDensity (g/cm3)Thermal Conductivity (W/m K)Thermal Linear Expansion Coeff. (20-95 ℃) (10-6/K)Electrical Resistivity at 20 ℃ (μΩ-cm)
N88.990.713.39.6

Mechanical Properties (for cold drawn annealed wire)

AlloyTensile strength (N/mm2)Elongation (% at L0=100mm)
MinMaxMinMax
N8380-1525

Some key features of Pure Nickel Wire N8 alloy include:

  • High Purity (99.8% Nickel)

N8 pure nickel wire consists of at least 99.8% nickel, offering excellent resistance to corrosion and oxidation, especially in alkaline and mildly acidic environments.

  • Excellent Corrosion Resistance

It has outstanding resistance to many corrosive environments, including caustic soda and seawater, as well as other organic and inorganic acids.

Particularly effective in resisting stress corrosion cracking in neutral and mildly alkaline solutions.

  • Good Mechanical Properties

N8 exhibits moderate tensile strength and high ductility, making it suitable for both mechanical and electrical applications.

It can be easily cold-worked, welded, and fabricated into complex shapes, such as wire, sheet, and tube.

  • Thermal and Electrical Conductivity

It offers good thermal and electrical conductivity, though not as high as copper, making it suitable for electronic and electrical components, such as contacts and connectors.

  • Non-Magnetic

N8 is non-magnetic, making it ideal for use in sensitive applications where magnetism could interfere with the operation, such as in electronics and aerospace components.

  • Good Fabricability

N8 is highly formable and can be easily drawn into wire, making it a popular choice for applications requiring fine wire or thin sections.

It can also be welded and brazed with relative ease, allowing for versatile fabrication.

  • High Temperature Stability

It can operate in elevated temperatures without significant degradation of its properties, making it suitable for use in high-temperature applications up to 600°C (1112°F).

Applications

  • Commonly used in the manufacturing of electrical components, such as wire, connectors, and electrodes.
  • Also used in chemical processing equipment, marine applications, and aerospace due to its durability in harsh environments.
  • It is often used in industries requiring high-purity materials for reliable, long-term performance.
