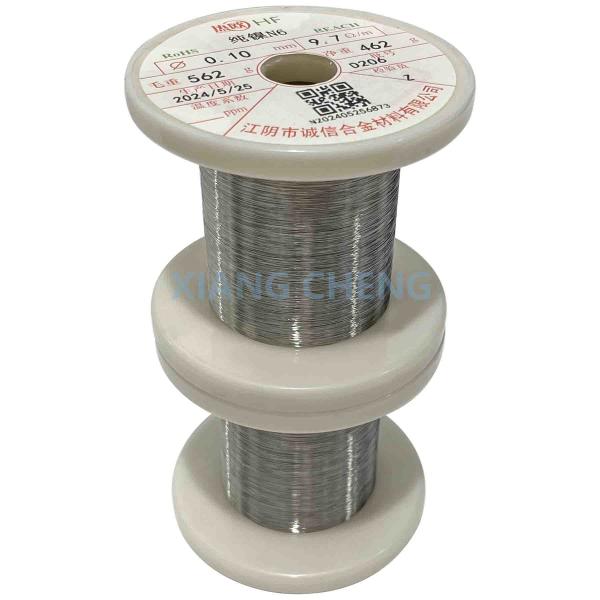

Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
Specifications
Brand Name :
Senphus
Model Number :
N6
Certification :
ISO9001
Place of Origin :
China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Place of Orig. :
Jiangsu, China
Type :
Pure Nickel
Density :
8.9
Thermal Conductivity :
69
Electrical Resistivity at 20°C :
5.3-6.4
Color :
Silvery white
Tensile strength（N/mm²） :
≥450
Elongation（% at L0=100 mm） :
15-25
Thermal Linear Expansion Coeff. (20-95 °C) :
13
Description

Highly Conductive N6 Pure Nickel Wire for Electrical and Electronic Applications

N6 Pure Nickel Wire is a high-purity nickel alloy with excellent resistance to corrosion and good mechanical properties, often used in applications requiring high strength and reliability in harsh environments. It is commonly utilized in chemical, electronic, and industrial sectors. N6 Pure Nickel Wire is a high-purity nickel alloy known for its excellent corrosion resistance, non-magnetic properties, and good thermal and electrical conductivity. It is widely used in electronic, chemical, marine, and aerospace applications that require reliable performance in harsh environments, making it suitable for high-purity components, electrical wiring, and corrosion-resistant equipment.

Nominal Chemical Composition (%)

Alloy Ni C Fe Si Mn P S Cu As Pb Zn Sn Mg Bi Sb
N6 ≥ 99.5 ≤ 0.10 ≤ 0.1 ≤ 0.1 ≤ 0.05 ≤ 0.002 ≤0.005 ≤0.1 ≤0.002 ≤0.002 ≤0.0027 ≤0.002 ≤0.1 ≤0.002 ≤0.002

Size Range

Type Dia. (mm) Width (mm) Thickness (mm)
Wire 0.04 - 12.0 - -
Ribbon - 2.0 ≥ 0.08

Physical Properties (at room temperature)

Alloy Density (g/cm3) Thermal Conductivity (W/m K) Thermal Linear Expansion Coeff. (20-95 ℃) (10-6/K) Electrical Resistivity at 20 ℃ (μΩ-cm)
N6 8.9 69 13 5.3-6.4

Mechanical Properties (for cold drawn annealed wire)

Alloy Tensile strength (N/mm2) Elongation (% at L0=100mm)
Min Max Min Max
N6 450 - 15 25

Some Key Features of Pure Nickel Wire N6 alloy include:

  • High Purity (99.6% Nickel)

N6 pure nickel contains a minimum of 99.6% nickel, offering exceptional corrosion resistance and overall performance in demanding environments.

  • Superior Corrosion Resistance

Excellent resistance to corrosion in neutral and alkaline environments, as well as mild acids and other corrosive agents.

It is particularly resistant to corrosion from caustic soda, seawater, and many organic and inorganic acids, making it ideal for use in chemical processing and marine applications.

  • Good Mechanical Properties

N6 has a moderate tensile strength and good ductility, making it flexible and easily formable into wires, sheets, and tubes.

The alloy maintains good toughness even at low temperatures, offering resilience under various operating conditions.

  • Thermal and Electrical Conductivity

N6 provides good thermal and electrical conductivity, making it suitable for electrical and electronic applications where high conductivity is essential.

It is widely used in electrical components, connectors, and other applications where electrical properties are critical.

  • Non-Magnetic

N6 is non-magnetic, which is advantageous in applications where magnetism could affect the performance of sensitive electronic or electrical systems.

  • High Temperature Resistance

The alloy performs well in elevated temperature environments, retaining its mechanical properties up to about 600°C (1112°F).

This makes it ideal for use in high-temperature applications like furnaces or equipment subjected to heat stress.

  • Ease of Fabrication

N6 is highly malleable and can be easily fabricated into wire, sheet, and other components. It is also well-suited for welding, brazing, and soldering processes.

Its good formability makes it useful for intricate designs and custom components.

Applications

  • N6 is widely used in industries such as electronics, aerospace, chemical processing, and marine, especially for components like wires, electrical contacts, connectors, and heat exchangers.
  • It is used in environments that require both corrosion resistance and reliable electrical conductivity.

Highly Conductive N6 Pure Nickel Wire For Electrical And Electronic ApplicationsHighly Conductive N6 Pure Nickel Wire For Electrical And Electronic ApplicationsHighly Conductive N6 Pure Nickel Wire For Electrical And Electronic Applications
