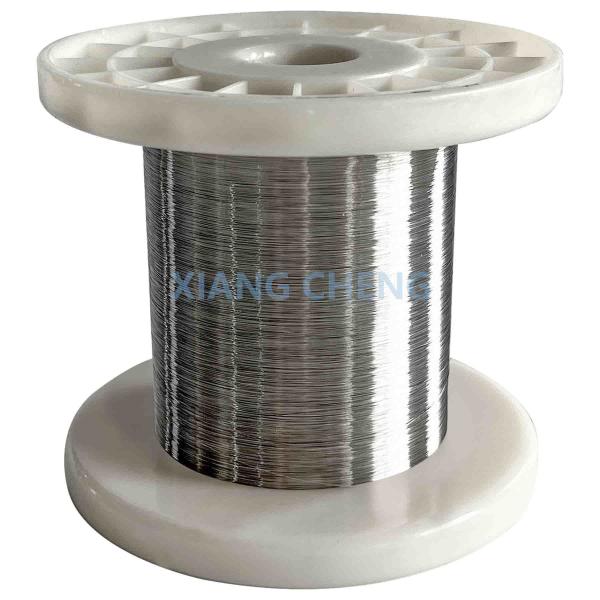

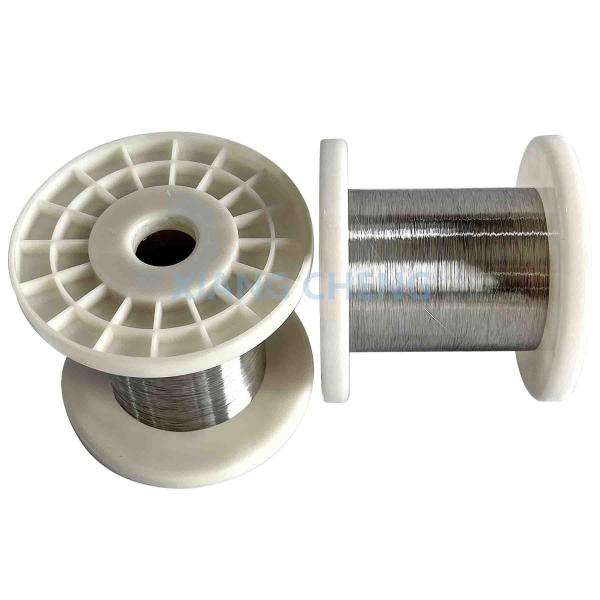

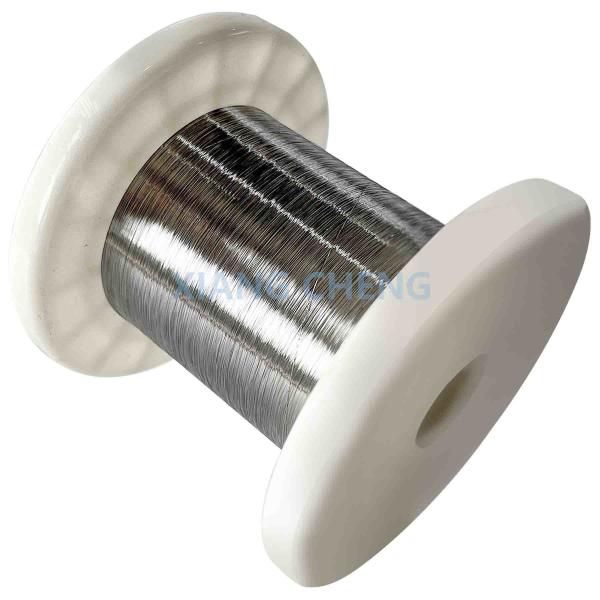

CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
CuNi19 NC025 Corrosion Resistant CuNi Alloy For Marine And Chemical Processing Uses
Specifications
Brand Name :
Senphus
Model Number :
CuNi19/NC025
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Type :
Nickel wire
Application :
Heating,household electrical application
Color :
Silvery White/bright or oxidized
Product name :
CuNi19 NC025 copper nickel wire
Resistivity :
0.25 ±5%
Melting temperature in ℃ :
1135
Min.tensile strength in N/mm² :
340
Elongation :
25
Density :
8.9
Description

CuNi19 NC025 Corrosion Resistant CuNi Alloy for Marine and Chemical Processing Uses

CuNi19 NC025 Wire is a copper-nickium (CuNi) alloy wire, where the alloy typically consists of 19% nickel (Ni) and 81% copper (Cu). This alloy is also commonly referred to as CuNi19 or NC025. It is well-known for its good mechanical properties, corrosion resistance, and excellent conductivity, making it suitable for a wide range of applications across various industries, particularly where moderate to high strength and corrosion resistance are required.

Chemical Composition Wt.

% Ni Mn Cu

MIN.
MAX. 19 0.5 Rest

Main physical properties:

Max continuous operating temperature ℃ 300
Resistance temperature coefficient x 10-5/℃(20℃-600℃) <25
Thermovoltage to copper at 20℃ in μV/K -32
Thermal expansion coefficient ×10-6/K(20℃-400℃) 17.5
Thermal conductance at 20℃ W/mK 38
Specific heat capacity at 20℃ J/gK 0.38

Main technical data

Type

CuNi1

NC003

CuNi2

NC005

CuNi4

NC007

CuNi6

NC010

CuNi8

NC012

CuMn3

NC012

CuNi10

NC015

CuNi14

NC020

CuNi19

NC025

CuNi23

NC030

CuNi30

NC035

CuNi34

NC040

CuNi44

NC050
Composition(%) Cu Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest
Mn / / / / / 3 / 0.3 0.5 0.5 1.0 1.0 1.0
Ni 1 2 4 6 8 　 10 14.2 19 23 30 34 44
Max.continuous operating temperature(℃) 200 200· 200 220 250 200 250 300 300 300 350 350 400
Resistivity at 20℃(μ m) 0.03
±10%		 0.05
±10%		 0.07
±10%		 0.10
±10%		 0.12
±10%		 0.12
±10%		 0.15
±10%		 0.20
±5%		 0.25
±5%		 0.30
±5%		 0.35
±5%		 0.40
±5%		 0.49
±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃) ＜100 ＜120 ＜50 ＜60 ＜57 ＜38 ＜50 ＜38 ＜25 ＜16 ＜10 ＜-0 -6
Thermovoltage to
copper at 20℃ in (μV/K)		 -8 -12 -12 -18 -22 1 -25 -28 -32 -34 -37 -39 -43
Mean coefficient of linear thermal expansion, in (10-6/K) , at a temperature between 20 ℃ and 400 ℃ 17.5 17.5 17.5 17.5 17.5 18 17.5 17.5 17.5 17.5 17.0 16.0 15.0
Thermal conductance
at 20℃ (W/mK)		 145 130 130 92 75 84 59 48 38 33 27 25 23
Specific heat capacity at 20℃ in (20℃ J/gK) 0.38 0.38 0.38 0.38 0.38 0.39 0.38 0.38 0.38 0.38 0.39 0.40 0.41
Density at 20 ℃(g/cm3) 8.9 8.9 8.9 8.9 8.9 8.8 8.9 8.9 8.9 8.9 8.9 8.9 8.9
Melting temperature in (℃) 1085 1090 1090 1095 1097 1050 1100 1115 1135 1150 1170 1180 1280
Min.tensile strength in (N/mm2) 210 220 220 250 270 290 290 310 340 350 400 400 420
Elongation(%) 25 25 25 25 25 25 25 25 25 25 25 25 25

Technical data table

Diameter(mm) NC003 CuNi1 NC005 CuNi2 NC007 CuNi4 NC010 CuNi6 NC012 CuNi8 NC015 CuNi10 NC020 CuNi14 NC025 CuNi19 NC030 CuNi23 NC035 CuNi30 NC040 CuNi34 NC050 CuNi44
0.10 3.82 6.36 8.91 12.73 15.28 19.09 25.46 31.83 38.19 44.56 50.93 62.39
0.11 3.16 5.26 7.37 10.52 12.63 15.78 21.04 26.30 31.56 36.82 42.09 51.56
0.12 2.65 4.42 6.19 8.84 10.61 13.26 17.68 22.10 26.52 30.94 35.37 43.33
0.13 2.26 3.76 5.27 7.53 9.04 11.30 15.07 18.83 22.60 26.36 30.14 36.92
0.14 1.95 3.24 4.55 6.49 7.80 9.74 12.99 16.24 19.48 22.73 25.98 31.83
0.15 1.70 2.82 3.96 5.65 6.79 8.48 11.31 14.14 16.97 19.80 22.64 27.73
0.16 1.49 2.48 3.48 4.97 5.97 7.46 9.95 12.43 14.92 17.40 19.89 24.37
0.17 1.32 2.20 3.08 4.40 5.29 6.60 8.81 11.01 13.21 15.41 17.62 21.59
0.18 1.18 1.96 2.75 3.92 4.72 5.89 7.86 9.82 11.78 13.75 15.72 19.26
0.19 1.06 1.76 2.47 3.52 4.23 5.29 7.05 8.81 10.58 12.34 14.11 17.28
0.20 0.95 1.59 2.23 3.18 3.82 4.77 6.36 7.95 9.54 11.14 12.73 15.60
0.21 0.87 1.44 2.02 2.88 3.46 4.33 5.77 7.21 8.66 10.10 11.55 14.15
0.22 0.79 1.31 1.84 2.63 3.16 3.94 5.26 6.57 7.89 9.20 10.52 12.89
0.23 0.72 1.20 1.68 2.40 2.89 3.61 4.81 6.01 7.22 8.42 9.63 11.79
0.24 0.66 1.10 1.55 2.21 2.65 3.31 4.42 5.52 6.63 7.73 8.84 10.83
0.25 0.61 1.01 1.43 2.03 2.44 3.05 4.07 5.09 6.11 7.13 8.15 9.98
0.26 0.57 0.94 1.32 1.88 2.26 2.82 3.77 4.70 5.65 6.59 7.53 9.23
0.27 0.52 0.87 1.22 1.74 2.10 2.61 3.49 4.36 5.23 6.11 6.99 8.56
0.28 0.49 0.81 1.14 1.62 1.95 2.43 3.25 4.06 4.87 5.68 6.50 7.96
0.29 0.45 0.75 1.06 1.51 1.82 2.27 3.03 3.78 4.54 5.29 6.06 7.42
0.30 0.42 0.70 0.99 1.41 1.70 2.12 2.83 3.53 4.24 4.95 5.66 6.93
0.31 0.40 0.66 0.93 1.32 1.59 1.98 2.65 3.31 3.97 4.63 5.30 6.49
0.32 0.37 0.62 0.87 1.24 1.49 1.86 2.49 3.11 3.73 4.35 4.97 6.09
0.33 0.35 0.58 0.82 1.17 1.40 1.75 2.34 2.92 3.51 4.09 4.68 5.73
0.34 0.33 0.55 0.77 1.10 1.32 1.65 2.20 2.75 3.30 3.85 4.41 5.40
0.35 0.31 0.51 0.73 1.03 1.25 1.55 2.08 2.60 3.11 3.63 4.16 5.09
0.36 0.29 0.49 0.69 0.98 1.18 1.47 1.96 2.46 2.94 3.43 3.93 4.81
0.37 0.28 0.46 0.65 0.93 1.12 1.39 1.86 2.33 2.79 3.25 3.72 4.56
0.38 0.26 0.44 0.62 0.88 1.06 1.32 1.76 2.20 2.64 3.08 3.53 4.32
0.40 0.24 0.39 0.56 0.79 0.95 1.19 1.59 1.99 2.38 2.78 3.18 3.90
0.41 0.23 0.37 0.53 0.76 0.91 1.13 1.51 1.89 2.27 2.65 3.03 3.71
0.42 0.22 0.36 0.51 0.72 0.87 1.08 1.44 1.80 2.16 2.52 2.89 3.54
0.43 0.21 0.34 0.48 0.69 0.83 1.03 1.38 1.72 2.06 2.41 2.75 3.37
0.44 0.20 0.32 0.46 0.66 0.79 0.98 1.31 1.64 1.97 2.30 2.63 3.22
0.45 0.19 0.31 0.44 0.63 0.75 0.94 1.26 1.57 1.88 2.20 2.52 3.08
0.46 0.18 0.30 0.42 0.60 0.72 0.90 1.20 1.50 1.80 2.10 2.41 2.95
0.47 0.17 0.28 0.40 0.58 0.69 0.86 1.15 1.44 1.72 2.01 2.31 2.82
0.48 0.17 0.27 0.39 0.55 0.66 0.82 1.10 1.38 1.65 1.93 2.21 2.71
0.49 0.16 0.26 0.37 0.53 0.64 0.79 1.06 1.33 1.59 1.85 2.12 2.60
0.50 0.15 0.25 0.36 0.51 0.61 0.76 1.01 1.27 1.52 1.78 2.04 2.50
0.51 0.15 0.24 0.34 0.49 0.59 0.73 0.98 1.22 1.46 1.71 1.96 2.40
0.52 0.14 0.23 0.33 0.47 0.57 0.70 0.94 1.18 1.41 1.65 1.88 2.31
0.53 0.14 0.22 0.32 0.45 0.54 0.67 0.91 1.13 1.35 1.59 1.81 2.22
0.54 0.13 0.22 0.31 0.44 0.52 0.65 0.87 1.09 1.30 1.53 1.75 2.14
0.55 0.13 0.21 0.29 0.42 0.51 0.63 0.84 1.05 1.26 1.47 1.68 2.06
0.56 0.12 0.20 0.28 0.41 0.49 0.60 0.81 1.02 1.21 1.42 1.62 1.99
0.57 0.12 0.19 0.27 0.39 0.47 0.58 0.78 0.98 1.17 1.37 1.57 1.92
0.58 0.11 0.19 0.27 0.38 0.45 0.56 0.76 0.95 1.13 1.32 1.51 1.85
0.59 0.11 0.18 0.26 0.37 0.44 0.54 0.73 0.91 1.09 1.28 1.46 1.79
0.60 0.11 0.18 0.25 0.35 0.42 0.53 0.71 0.88 1.06 1.24 1.41 1.73
  • Tolerance of ohm/m: ±5%
  • Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
  • Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1

Key Features of CuNi19 NC025 Wire:

  • Composition

CuNi19 (19% Nickel, 81% Copper): The nickel content provides increased strength, better wear resistance, and improved corrosion resistance, while copper maintains excellent electrical conductivity.

Additional Elements: May contain trace elements such as manganese, iron, or other minor elements to further improve material properties.

  • Good Mechanical Properties

CuNi19 NC025 wire offers high strength, good hardness, and ductility, which makes it suitable for both structural and electrical applications.

Tensile Strength: Provides a good balance of tensile strength and elongation for wire and cable manufacturing.

  • Corrosion Resistance

Resistant to Corrosion: The nickel content enhances its resistance to corrosion in harsh environments, such as seawater, atmospheric corrosion, and certain acids.

Seawater Resistance: CuNi alloys, like CuNi19, are particularly resistant to seawater corrosion, which makes them ideal for marine applications.

  • Electrical Conductivity

While not as high as pure copper, CuNi19 NC025 retains good electrical conductivity, making it suitable for electrical wiring, connectors, and conductive components in various electrical and electronic applications.

  • Thermal Conductivity

CuNi19 also has good thermal conductivity, although lower than pure copper, which allows for effective heat dissipation in certain applications.

  • Non-Magnetic Properties

CuNi19 NC025 is non-magnetic, making it ideal for use in applications where magnetic interference would be problematic, such as sensitive electronic equipment.

  • Workability

CuNi19 wire is easily machinable, weldable, and formable, allowing for a variety of uses in manufacturing and fabrication, especially in wire forms and electrical connectors.

  • Temperature Resistance

CuNi19 NC025 is capable of handling moderate temperatures. Its mechanical and electrical properties remain stable within its working temperature range, typically up to 200-250°C (392-482°F), depending on the specific application.

Applications

  • Marine Industry: Used in shipbuilding, offshore platforms, and seawater systems for its resistance to seawater corrosion.
  • Electrical Industry: Employed for power cables, wires, busbars, and electrical connectors where moderate conductivity is required.
  • Heat Exchangers and Cooling Systems: Often found in systems that operate in corrosive environments or high temperatures.
  • Chemical Processing: Used for piping, tubes, and components in chemical processing and petrochemical applications, where its resistance to corrosion is beneficial.
  • Automotive: Used in components requiring both strength and corrosion resistance, including electrical connectors and sensors.

Advantages of CuNi19 NC025 Wire:

  • Corrosion Resistance: Excellent performance in harsh environments, particularly in marine or saltwater applications.
  • Moderate Electrical Conductivity: Offers good conductivity, making it suitable for electrical wiring and connections.
  • Mechanical Strength: Good tensile strength and ductility for a variety of applications, including industrial and marine sectors.
  • Non-Magnetic: Ideal for sensitive electronics or applications where magnetic interference must be avoided.
  • Workability: Easy to fabricate, weld, and machine for use in custom designs.

Limitations:

  • Lower Electrical Conductivity: Compared to pure copper or other copper alloys like Cu-ETP, the electrical conductivity is lower, which limits its use in very high-performance electrical applications.
  • Cost: Copper-nickel alloys can be more expensive than pure copper, particularly when used in applications where high performance is not required.
  • Limited High-Temperature Use: Although it handles moderate temperatures well, CuNi19 NC025 is not suitable for extreme high-temperature applications compared to other alloys like nickel-based or stainless steel alloys.
