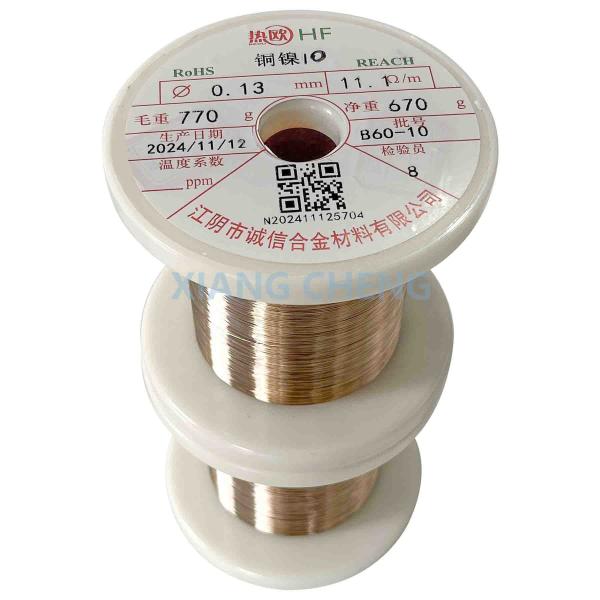

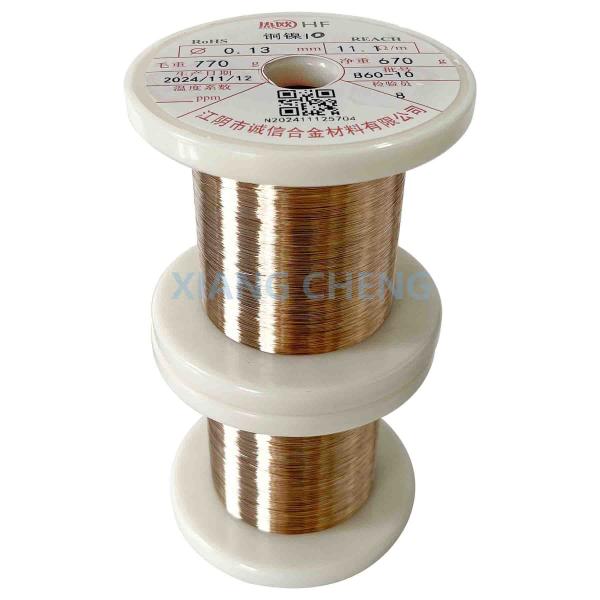

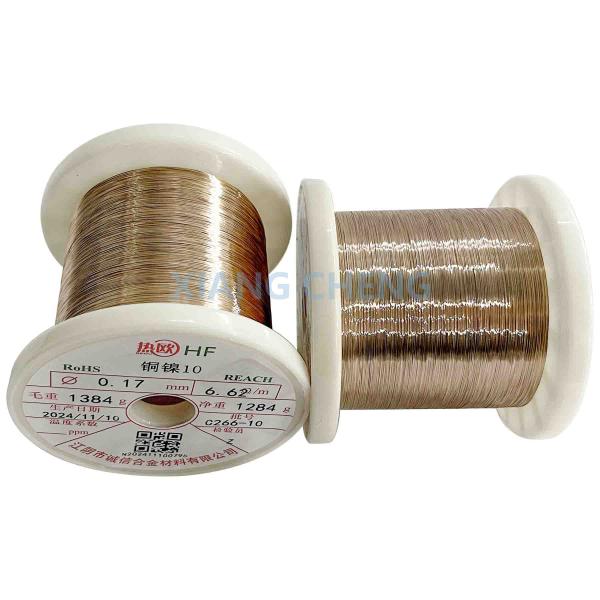

CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire Best Solution For Conductivity Performance
Specifications
Brand Name :
Senphus
Model Number :
CuNi10/NC015/2.0811/C70700
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Name :
CuNi10 NC015 2.0811 C70700
Type :
Nickel wire
Application :
Heating,household electrical application
Color :
Silvery White/bright or oxidized
Product name :
CuNi10 NC015 copper nickel wire
Resistivity :
0.15 ±10%
Melting temperature in ℃ :
1100
Min.tensile strength in N/mm2 :
290
Elongation :
25
Density :
8.9
Description

CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire The Best Solution For Conductivity Performance

CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire is a copper-nickel alloy with 10% nickel, offering enhanced corrosion resistance, moderate strength, and good electrical and thermal conductivity. It is particularly well-suited for marine, chemical processing, and industrial applications where exposure to seawater, corrosive chemicals, and biofouling is common. While its electrical conductivity is not as high as pure copper’s, it remains a reliable material for electrical components, heat exchangers, cooling systems, and industrial piping. With excellent workability and fabrication ease, CuNi10 is a versatile choice for a wide range of marine, industrial, and electrical applications requiring corrosion resistance and strength.

GB JIS ASTM ISO DIN/EN GOST AS

JB /T 6454-2008

CuNi10

NC015

JIS C2532-1999

C7071

C70700

90Cu-10Ni

C70700

CuNi10

C70700

DIN 17471-1983

CuNi10

C70700

2.0811

 MH10

707B

C70700

Main physical properties:

Max continuous operating temperature ℃ 250
Resistance temperature coefficient x 10-5/℃(20℃-600℃) <50
Thermovoltage to copper at 20℃ in μV/K -25
Thermal expansion coefficient ×10-6/K(20℃-400℃) 17.5
Thermal conductance at 20℃ W/mK 59
Specific heat capacity at 20℃ J/gK 0.38

Key Features of CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire:

  • Composition:

Copper (Cu): Approximately 90%, providing excellent thermal conductivity, electrical conductivity, and ductility.

Nickel (Ni): Approximately 10%, improving the alloy’s strength and corrosion resistance, especially in marine and seawater environments.

Iron (Fe), Manganese (Mn), and Other Elements: Trace elements that contribute to the alloy's strength, resistance to corrosion, and overall durability.

  • Corrosion Resistance:

Marine and Seawater Resistance: CuNi10 provides superior resistance to seawater corrosion, making it ideal for applications exposed to saltwater, such as marine hardware, heat exchangers, seawater piping, and offshore equipment.

Good Resistance to Chemical Corrosion: The alloy also resists mild acidic and alkaline solutions, which makes it well-suited for use in chemical processing and industrial environments.

Biofouling Resistance: CuNi10 is resistant to biofouling, the buildup of marine organisms on surfaces, ensuring its performance in systems exposed to seawater, such as cooling systems and heat exchangers.

  • Mechanical Properties:

Moderate Strength: The 10% nickel content enhances the strength of CuNi10 compared to pure copper, making it suitable for applications that require moderate mechanical strength but where ductility remains important.

Fatigue and Wear Resistance: CuNi10 exhibits good fatigue resistance and can withstand thermal cycling and vibration in environments that experience fluctuating temperatures or mechanical stress.

Ductility and Workability: The alloy is highly formable, making it easy to draw into wire, tubes, rods, and sheets, and it can be processed using both cold working and hot working methods.

  • Electrical and Thermal Conductivity:

Electrical Conductivity: While not as high as pure copper, CuNi10 maintains good electrical conductivity, making it suitable for use in electrical components such as wires and connectors.

Thermal Conductivity: The alloy retains excellent thermal conductivity, making it ideal for use in heat exchangers, cooling systems, and other applications where efficient heat transfer is necessary.

  • Weldability and Fabrication:

Weldability: CuNi10 can be welded using standard methods like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas), though it requires care to avoid oxidation or overheating during the process.

Formability: The alloy is easy to form into various shapes (such as wire, tubes, sheets) and can be cold-worked or hot-worked into various configurations for different industrial applications.

Applications:

  • Marine and Offshore Applications: Due to its excellent seawater resistance, CuNi10 is widely used in marine environments for seawater piping, heat exchangers, cooling systems, valves, and offshore equipment exposed to saltwater and harsh conditions.
  • Electrical Components: CuNi10’s good electrical conductivity makes it suitable for wires, connectors, electrical cables, and other electrical components.
  • Heat Exchangers and Cooling Systems: The alloy’s high thermal conductivity and corrosion resistance make it ideal for use in heat exchangers, cooling systems, radiators, and other thermal management systems in industrial and chemical processing applications.
  • Chemical Processing Equipment: CuNi10 is also used in chemical processing plants, industrial piping, and other systems that require resistance to mild acids and alkaline solutions.

Advantages of CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire:

  • Superior Seawater Resistance: CuNi10 offers outstanding resistance to seawater corrosion, making it ideal for marine and offshore applications such as piping, heat exchangers, and cooling systems exposed to saltwater.
  • Good Mechanical Properties: With moderate strength and ductility, CuNi10 is well-suited for applications where both strength and formability are required.
  • High Thermal Conductivity: The alloy offers excellent thermal conductivity, making it highly suitable for heat exchangers and cooling systems that require efficient heat transfer.
  • Corrosion Resistance in Mild Acids and Alkaline Solutions: CuNi10 performs well in mild acidic and alkaline environments, making it a durable material for chemical processing and other industrial applications.
  • Biofouling Resistance: The alloy’s ability to resist biofouling makes it ideal for use in marine environments where the accumulation of marine organisms on exposed surfaces can lead to performance degradation.

Type CuNi10NC015
Composition(%) Cu Rest
Mn /
Ni 10
Max.continuous operating temperature(℃) 250
Resistivity at 20℃(μ m) 0.15
±10%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃) ＜ 50
Thermovoltage to
copper at 20℃ in (μV/K)		 -25
Mean coefficient of linear thermal expansion, in (10-6/K) , at a temperature between 20 ℃ and 400 ℃ 17.5
Thermal conductance
at 20℃ (W/mK)		 59
Specific heat capacity at 20℃ in (20℃ J/gK) 0.38
Density at 20 ℃(g/cm3) 8.9
Melting temperature in (℃) 1100
Min.tensile strength in (N/mm2) 290
Elongation(%) 25

Technical data table

Diameter(mm) NC003 CuNi1 NC005 CuNi2 NC007 CuNi4 NC010 CuNi6 NC012 CuNi8 NC015 CuNi10 NC020 CuNi14 NC025 CuNi19 NC030 CuNi23 NC035 CuNi30 NC040 CuNi34 NC050 CuNi44
0.10 3.82 6.36 8.91 12.73 15.28 19.09 25.46 31.83 38.19 44.56 50.93 62.39
0.11 3.16 5.26 7.37 10.52 12.63 15.78 21.04 26.30 31.56 36.82 42.09 51.56
0.12 2.65 4.42 6.19 8.84 10.61 13.26 17.68 22.10 26.52 30.94 35.37 43.33
0.13 2.26 3.76 5.27 7.53 9.04 11.30 15.07 18.83 22.60 26.36 30.14 36.92
0.14 1.95 3.24 4.55 6.49 7.80 9.74 12.99 16.24 19.48 22.73 25.98 31.83
0.15 1.70 2.82 3.96 5.65 6.79 8.48 11.31 14.14 16.97 19.80 22.64 27.73
0.16 1.49 2.48 3.48 4.97 5.97 7.46 9.95 12.43 14.92 17.40 19.89 24.37
0.17 1.32 2.20 3.08 4.40 5.29 6.60 8.81 11.01 13.21 15.41 17.62 21.59
0.18 1.18 1.96 2.75 3.92 4.72 5.89 7.86 9.82 11.78 13.75 15.72 19.26
0.19 1.06 1.76 2.47 3.52 4.23 5.29 7.05 8.81 10.58 12.34 14.11 17.28
0.20 0.95 1.59 2.23 3.18 3.82 4.77 6.36 7.95 9.54 11.14 12.73 15.60
0.21 0.87 1.44 2.02 2.88 3.46 4.33 5.77 7.21 8.66 10.10 11.55 14.15
0.22 0.79 1.31 1.84 2.63 3.16 3.94 5.26 6.57 7.89 9.20 10.52 12.89
0.23 0.72 1.20 1.68 2.40 2.89 3.61 4.81 6.01 7.22 8.42 9.63 11.79
0.24 0.66 1.10 1.55 2.21 2.65 3.31 4.42 5.52 6.63 7.73 8.84 10.83
0.25 0.61 1.01 1.43 2.03 2.44 3.05 4.07 5.09 6.11 7.13 8.15 9.98
0.26 0.57 0.94 1.32 1.88 2.26 2.82 3.77 4.70 5.65 6.59 7.53 9.23
0.27 0.52 0.87 1.22 1.74 2.10 2.61 3.49 4.36 5.23 6.11 6.99 8.56
0.28 0.49 0.81 1.14 1.62 1.95 2.43 3.25 4.06 4.87 5.68 6.50 7.96
0.29 0.45 0.75 1.06 1.51 1.82 2.27 3.03 3.78 4.54 5.29 6.06 7.42
0.30 0.42 0.70 0.99 1.41 1.70 2.12 2.83 3.53 4.24 4.95 5.66 6.93
0.31 0.40 0.66 0.93 1.32 1.59 1.98 2.65 3.31 3.97 4.63 5.30 6.49
0.32 0.37 0.62 0.87 1.24 1.49 1.86 2.49 3.11 3.73 4.35 4.97 6.09
0.33 0.35 0.58 0.82 1.17 1.40 1.75 2.34 2.92 3.51 4.09 4.68 5.73
0.34 0.33 0.55 0.77 1.10 1.32 1.65 2.20 2.75 3.30 3.85 4.41 5.40
0.35 0.31 0.51 0.73 1.03 1.25 1.55 2.08 2.60 3.11 3.63 4.16 5.09
0.36 0.29 0.49 0.69 0.98 1.18 1.47 1.96 2.46 2.94 3.43 3.93 4.81
0.37 0.28 0.46 0.65 0.93 1.12 1.39 1.86 2.33 2.79 3.25 3.72 4.56
0.38 0.26 0.44 0.62 0.88 1.06 1.32 1.76 2.20 2.64 3.08 3.53 4.32
0.40 0.24 0.39 0.56 0.79 0.95 1.19 1.59 1.99 2.38 2.78 3.18 3.90
0.41 0.23 0.37 0.53 0.76 0.91 1.13 1.51 1.89 2.27 2.65 3.03 3.71
0.42 0.22 0.36 0.51 0.72 0.87 1.08 1.44 1.80 2.16 2.52 2.89 3.54
0.43 0.21 0.34 0.48 0.69 0.83 1.03 1.38 1.72 2.06 2.41 2.75 3.37
0.44 0.20 0.32 0.46 0.66 0.79 0.98 1.31 1.64 1.97 2.30 2.63 3.22
0.45 0.19 0.31 0.44 0.63 0.75 0.94 1.26 1.57 1.88 2.20 2.52 3.08
0.46 0.18 0.30 0.42 0.60 0.72 0.90 1.20 1.50 1.80 2.10 2.41 2.95
0.47 0.17 0.28 0.40 0.58 0.69 0.86 1.15 1.44 1.72 2.01 2.31 2.82
0.48 0.17 0.27 0.39 0.55 0.66 0.82 1.10 1.38 1.65 1.93 2.21 2.71
0.49 0.16 0.26 0.37 0.53 0.64 0.79 1.06 1.33 1.59 1.85 2.12 2.60
0.50 0.15 0.25 0.36 0.51 0.61 0.76 1.01 1.27 1.52 1.78 2.04 2.50
0.51 0.15 0.24 0.34 0.49 0.59 0.73 0.98 1.22 1.46 1.71 1.96 2.40
0.52 0.14 0.23 0.33 0.47 0.57 0.70 0.94 1.18 1.41 1.65 1.88 2.31
0.53 0.14 0.22 0.32 0.45 0.54 0.67 0.91 1.13 1.35 1.59 1.81 2.22
0.54 0.13 0.22 0.31 0.44 0.52 0.65 0.87 1.09 1.30 1.53 1.75 2.14
0.55 0.13 0.21 0.29 0.42 0.51 0.63 0.84 1.05 1.26 1.47 1.68 2.06
0.56 0.12 0.20 0.28 0.41 0.49 0.60 0.81 1.02 1.21 1.42 1.62 1.99
0.57 0.12 0.19 0.27 0.39 0.47 0.58 0.78 0.98 1.17 1.37 1.57 1.92
0.58 0.11 0.19 0.27 0.38 0.45 0.56 0.76 0.95 1.13 1.32 1.51 1.85
0.59 0.11 0.18 0.26 0.37 0.44 0.54 0.73 0.91 1.09 1.28 1.46 1.79
0.60 0.11 0.18 0.25 0.35 0.42 0.53 0.71 0.88 1.06 1.24 1.41 1.73
  • Tolerance of ohm/m: ±5%
  • Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
  • Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
