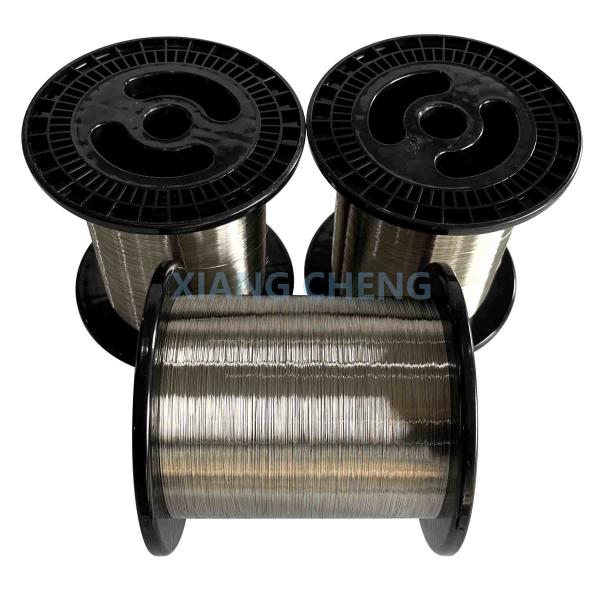

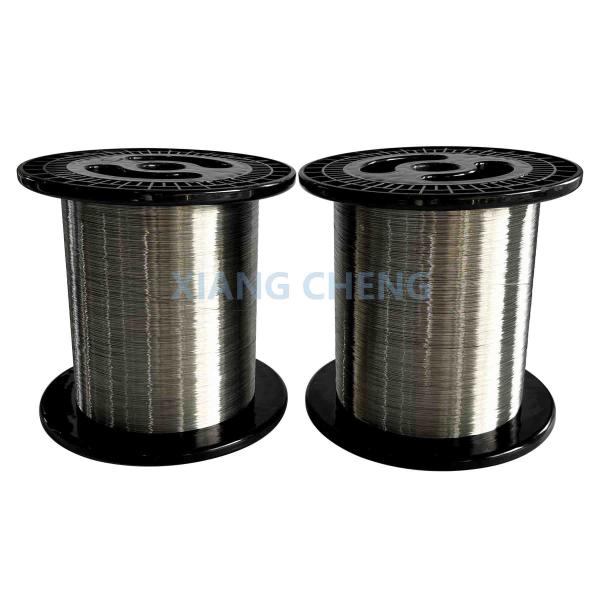

Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
Specifications
Brand Name :
Senphus
Model Number :
CuNi34/NC040
Place of Origin :
Jiangsu, China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Type :
Nickel wire
Application :
Heating,household electrical application
Color :
Silvery White/bright or oxidized
Certification :
ISO9001
Product name :
CuNi34 NC040 copper nickel wire
Resistivity :
0.40 ±5%
Melting temperature in ℃ :
1180
Min.tensile strength in N/mm² :
400
Elongation :
25
Density :
8.9
Description

Low thermal expansion CuNi Alloy CuNi34 for stable performance at high temperatures

CuNi34 is a copper-nickel alloy with approximately 34% nickel, known for its excellent resistance to corrosion, particularly in seawater. This makes it ideal for use in marine environments such as shipbuilding, offshore platforms, and desalination plants. CuNi34 is highly resistant to pitting, biofouling, and stress corrosion cracking, which are common challenges in marine applications. Its durability in aggressive environments helps ensure long-lasting performance in conditions that would typically degrade other materials.

The alloy also possesses good mechanical properties, offering strength, ductility, and toughness. While its electrical and thermal conductivity is lower than that of pure copper due to the nickel content, it still maintains adequate conductivity for certain industrial uses, such as heat exchangers and cooling systems.

CuNi34 is commonly used in pipes, tubes, and marine components, where its combination of corrosion resistance, mechanical strength, and resistance to harsh conditions is critical. It is a reliable and cost-effective material choice for industries requiring durable, corrosion-resistant solutions, especially in seawater or chemically aggressive environments.

Chemical Composition Wt.% % Ni Cu Mn
Min
Max 34 Rest 1

Main physical properties:

Max continuous operating temperature ℃ 350
Resistance temperature coefficient x 10-5/℃(20℃-600℃) <0
Thermovoltage to copper at 20℃ in μV/K -39
Thermal expansion coefficient ×10-6/K(20℃-400℃) 16.0
Thermal conductance at 20℃ W/mK 25
Specific heat capacity at 20℃ J/gK 0.40

Main technical data

Type

CuNi1

NC003

CuNi2

NC005

CuNi4

NC007

CuNi6

NC010

CuNi8

NC012

CuMn3

MC012

CuNi10

NC015

CuNi14

NC020

CuNi19

NC025

CuNi23

NC030

CuNi30

NC035

CuNi34

NC040

CuNi44

NC050
Composition(%) Cu Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest
Mn / / / / / 3 / 0.3 0.5 0.5 1.0 1.0 1.0
Ni 1 2 4 6 8 　 10 14.2 19 23 30 34 44
Max.continuous operating temperature(℃) 200 200· 200 220 250 200 250 300 300 300 350 350 400
Resistivity at 20℃(μ m) 0.03
±10%		 0.05
±10%		 0.07
±10%		 0.10
±10%		 0.12
±10%		 0.12
±10%		 0.15
±10%		 0.20
±5%		 0.25
±5%		 0.30
±5%		 0.35
±5%		 0.40
±5%		 0.49
±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃) ＜ 100 ＜ 120 ＜ 50 ＜ 60 ＜ 57 ＜ 38 ＜ 50 ＜ 38 ＜ 25 ＜ 16 ＜ 10 ＜ -0 ＜ -6
Thermovoltage to
copper at 20℃ in (μV/K)		 -8 -12 -12 -18 -22 1 -25 -28 -32 -34 -37 -39 -43
Mean coefficient of linear thermal expansion, in (10-6/K) , at a temperature between 20 ℃ and 400 ℃ 17.5 17.5 17.5 17.5 17.5 18 17.5 17.5 17.5 17.5 17.0 16.0 15.0
Thermal conductance
at 20℃ (W/mK)		 145 130 130 92 75 84 59 48 38 33 27 25 23
Specific heat capacity at 20℃ in (20℃ J/gK) 0.38 0.38 0.38 0.38 0.38 0.39 0.38 0.38 0.38 0.38 0.39 0.40 0.41
Density at 20 ℃(g/cm3) 8.9 8.9 8.9 8.9 8.9 8.8 8.9 8.9 8.9 8.9 8.9 8.9 8.9
Melting temperature in (℃) 1085 1090 1090 1095 1097 1050 1100 1115 1135 1150 1170 1180 1280
Min.tensile strength in (N/mm2) 210 220 220 250 270 290 290 310 340 350 400 400 420
Elongation(%) 25 25 25 25 25 25 25 25 25 25 25 25 25

Technical data table

Diameter(mm) NC003 CuNi1 NC005 CuNi2 NC007 CuNi4 NC010 CuNi6 NC012 CuNi8 NC015 CuNi10 NC020 CuNi14 NC025 CuNi19 NC030 CuNi23 NC035 CuNi30 NC040 CuNi34 NC050 CuNi44
0.10 3.82 6.36 8.91 12.73 15.28 19.09 25.46 31.83 38.19 44.56 50.93 62.39
0.11 3.16 5.26 7.37 10.52 12.63 15.78 21.04 26.30 31.56 36.82 42.09 51.56
0.12 2.65 4.42 6.19 8.84 10.61 13.26 17.68 22.10 26.52 30.94 35.37 43.33
0.13 2.26 3.76 5.27 7.53 9.04 11.30 15.07 18.83 22.60 26.36 30.14 36.92
0.14 1.95 3.24 4.55 6.49 7.80 9.74 12.99 16.24 19.48 22.73 25.98 31.83
0.15 1.70 2.82 3.96 5.65 6.79 8.48 11.31 14.14 16.97 19.80 22.64 27.73
0.16 1.49 2.48 3.48 4.97 5.97 7.46 9.95 12.43 14.92 17.40 19.89 24.37
0.17 1.32 2.20 3.08 4.40 5.29 6.60 8.81 11.01 13.21 15.41 17.62 21.59
0.18 1.18 1.96 2.75 3.92 4.72 5.89 7.86 9.82 11.78 13.75 15.72 19.26
0.19 1.06 1.76 2.47 3.52 4.23 5.29 7.05 8.81 10.58 12.34 14.11 17.28
0.20 0.95 1.59 2.23 3.18 3.82 4.77 6.36 7.95 9.54 11.14 12.73 15.60
0.21 0.87 1.44 2.02 2.88 3.46 4.33 5.77 7.21 8.66 10.10 11.55 14.15
0.22 0.79 1.31 1.84 2.63 3.16 3.94 5.26 6.57 7.89 9.20 10.52 12.89
0.23 0.72 1.20 1.68 2.40 2.89 3.61 4.81 6.01 7.22 8.42 9.63 11.79
0.24 0.66 1.10 1.55 2.21 2.65 3.31 4.42 5.52 6.63 7.73 8.84 10.83
0.25 0.61 1.01 1.43 2.03 2.44 3.05 4.07 5.09 6.11 7.13 8.15 9.98
0.26 0.57 0.94 1.32 1.88 2.26 2.82 3.77 4.70 5.65 6.59 7.53 9.23
0.27 0.52 0.87 1.22 1.74 2.10 2.61 3.49 4.36 5.23 6.11 6.99 8.56
0.28 0.49 0.81 1.14 1.62 1.95 2.43 3.25 4.06 4.87 5.68 6.50 7.96
0.29 0.45 0.75 1.06 1.51 1.82 2.27 3.03 3.78 4.54 5.29 6.06 7.42
0.30 0.42 0.70 0.99 1.41 1.70 2.12 2.83 3.53 4.24 4.95 5.66 6.93
0.31 0.40 0.66 0.93 1.32 1.59 1.98 2.65 3.31 3.97 4.63 5.30 6.49
0.32 0.37 0.62 0.87 1.24 1.49 1.86 2.49 3.11 3.73 4.35 4.97 6.09
0.33 0.35 0.58 0.82 1.17 1.40 1.75 2.34 2.92 3.51 4.09 4.68 5.73
0.34 0.33 0.55 0.77 1.10 1.32 1.65 2.20 2.75 3.30 3.85 4.41 5.40
0.35 0.31 0.51 0.73 1.03 1.25 1.55 2.08 2.60 3.11 3.63 4.16 5.09
0.36 0.29 0.49 0.69 0.98 1.18 1.47 1.96 2.46 2.94 3.43 3.93 4.81
0.37 0.28 0.46 0.65 0.93 1.12 1.39 1.86 2.33 2.79 3.25 3.72 4.56
0.38 0.26 0.44 0.62 0.88 1.06 1.32 1.76 2.20 2.64 3.08 3.53 4.32
0.40 0.24 0.39 0.56 0.79 0.95 1.19 1.59 1.99 2.38 2.78 3.18 3.90
0.41 0.23 0.37 0.53 0.76 0.91 1.13 1.51 1.89 2.27 2.65 3.03 3.71
0.42 0.22 0.36 0.51 0.72 0.87 1.08 1.44 1.80 2.16 2.52 2.89 3.54
0.43 0.21 0.34 0.48 0.69 0.83 1.03 1.38 1.72 2.06 2.41 2.75 3.37
0.44 0.20 0.32 0.46 0.66 0.79 0.98 1.31 1.64 1.97 2.30 2.63 3.22
0.45 0.19 0.31 0.44 0.63 0.75 0.94 1.26 1.57 1.88 2.20 2.52 3.08
0.46 0.18 0.30 0.42 0.60 0.72 0.90 1.20 1.50 1.80 2.10 2.41 2.95
0.47 0.17 0.28 0.40 0.58 0.69 0.86 1.15 1.44 1.72 2.01 2.31 2.82
0.48 0.17 0.27 0.39 0.55 0.66 0.82 1.10 1.38 1.65 1.93 2.21 2.71
0.49 0.16 0.26 0.37 0.53 0.64 0.79 1.06 1.33 1.59 1.85 2.12 2.60
0.50 0.15 0.25 0.36 0.51 0.61 0.76 1.01 1.27 1.52 1.78 2.04 2.50
0.51 0.15 0.24 0.34 0.49 0.59 0.73 0.98 1.22 1.46 1.71 1.96 2.40
0.52 0.14 0.23 0.33 0.47 0.57 0.70 0.94 1.18 1.41 1.65 1.88 2.31
0.53 0.14 0.22 0.32 0.45 0.54 0.67 0.91 1.13 1.35 1.59 1.81 2.22
0.54 0.13 0.22 0.31 0.44 0.52 0.65 0.87 1.09 1.30 1.53 1.75 2.14
0.55 0.13 0.21 0.29 0.42 0.51 0.63 0.84 1.05 1.26 1.47 1.68 2.06
0.56 0.12 0.20 0.28 0.41 0.49 0.60 0.81 1.02 1.21 1.42 1.62 1.99
0.57 0.12 0.19 0.27 0.39 0.47 0.58 0.78 0.98 1.17 1.37 1.57 1.92
0.58 0.11 0.19 0.27 0.38 0.45 0.56 0.76 0.95 1.13 1.32 1.51 1.85
0.59 0.11 0.18 0.26 0.37 0.44 0.54 0.73 0.91 1.09 1.28 1.46 1.79
0.60 0.11 0.18 0.25 0.35 0.42 0.53 0.71 0.88 1.06 1.24 1.41 1.73
  • Tolerance of ohm/m: ±5%
  • Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
  • Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1

Some key features of CuNi34 include:

  • Corrosion Resistance:

CuNi34 exhibits excellent resistance to seawater corrosion and is commonly used in marine engineering, such as shipbuilding, offshore structures, and desalination plants.

It resists biofouling (accumulation of marine organisms) and is less prone to pitting corrosion compared to other copper alloys.

  • Mechanical Properties:

The alloy has good strength, ductility, and toughness.

It has moderate strength but remains highly resistant to stress corrosion cracking, especially in marine or aqueous environments.

  • Thermal and Electrical Conductivity:

While copper is known for its high electrical conductivity, CuNi34 has lower conductivity than pure copper due to the presence of nickel.

It retains reasonable thermal conductivity, which can be useful in heat exchange applications.

Applications:

  • Marine Engineering: Due to its resistance to seawater corrosion, CuNi34 is used for components in ships, submarines, and offshore structures.
  • Heat Exchangers: It is also used in heat exchanger systems, particularly those that deal with seawater or aggressive environments.
  • Pipes and Tubes: CuNi34 is used for tubing and piping in industries like desalination and offshore oil extraction.

Low Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High TemperaturesLow Thermal Expansion CuNi Alloy CuNi34 For Stable Performance At High Temperatures
