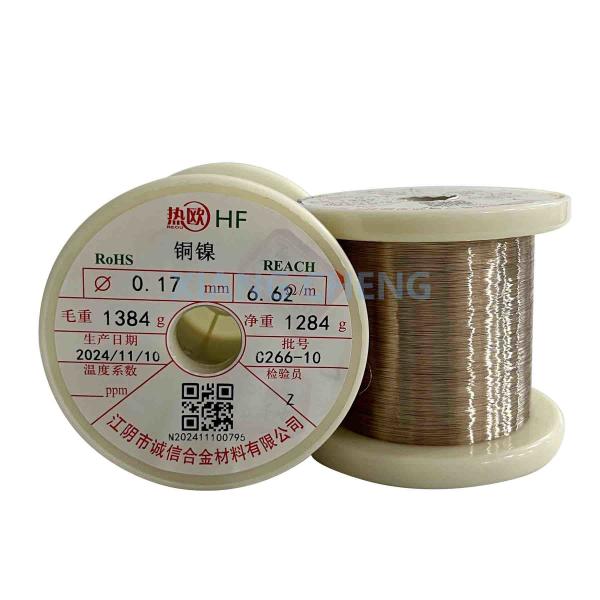

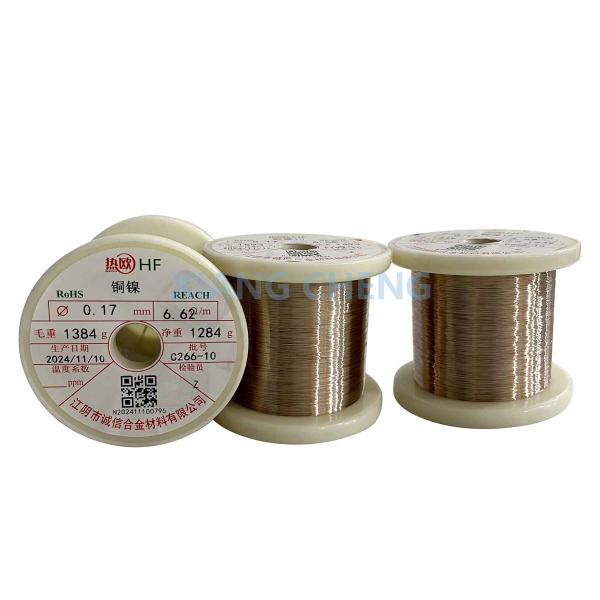

Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Copper Nickel Alloy CuNi4 / NC007 / C72150 / 2.0842 For Resistance Elements
Specifications
Brand Name :
Senphus
Model Number :
CuNi4/NC007/C72150/2.0842
Place of Origin :
Jiangsu, China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Type :
Nickel wire
Application :
Heating,household electrical application
Color :
Silvery White/bright or oxidized
Certification :
ISO9001
Product name :
CuNi4 NC007 copper nickel wire
Resistivity :
0.07 ±10%
Melting temperature in ℃ :
1090
Min.tensile strength in N/mm2 :
220
Elongation :
25
Density :
8.9
Description

Copper Nickel Alloy CuNi4/NC007/C72150/2.0842 for Resistance Elements with Optimal Performance in Harsh Environments

CuNi4 is a copper-nickel alloy composed of approximately 96% copper and 4% nickel, with small amounts of iron and manganese. It is known for its excellent corrosion resistance, particularly in marine environments, as well as its resistance to biofouling, erosion, and stress corrosion cracking. CuNi4 also has good thermal conductivity, making it suitable for heat exchange applications, and moderate electrical conductivity, which allows it to be used in certain electrical components.

This alloy offers a good balance of strength and ductility, making it easy to fabricate into various shapes such as pipes, fittings, and structural components. It is commonly used in marine applications for seawater piping, shipbuilding, and marine hardware. Additionally, CuNi4 is employed in heat exchangers, desalination plants, electrical connectors, and even coinage due to its durability and resistance to corrosion. Its ease of fabrication, combined with its corrosion and thermal properties, make CuNi4 a versatile and reliable choice for a range of industrial and marine applications.

GB ISO ASTM DIN/EN
CuNi4/NC007 CuNi44Mn1 C72150 2.0842

Main physical properties:
Max continuous operating temperature ℃ 200
Resistance temperature coefficient x 10-5/℃(20℃-600℃) <50
Thermovoltage to copper at 20℃ in μV/K -12
Thermal expansion coefficient ×10-6/K(20℃-400℃) 17.5
Thermal conductance at 20℃ W/mK 130
Specific heat capacity at 20℃ J/gK 0.38

Some key features of CuNi-4 include:

  1. Corrosion Resistance:

    • Exceptional resistance to seawater corrosion, biofouling, and erosion.
    • High durability in marine environments and chemical exposures.

  2. Thermal Conductivity:

    • Good thermal conductivity makes it suitable for heat exchangers and condensers.

  3. Moderate Electrical Conductivity:

    • Suitable for use in electrical connectors and resistive components.

  4. Strength and Ductility:

    • Offers a good balance of mechanical strength and ductility for ease of fabrication.

  5. Resistance to Biofouling:

    • Naturally resistant to marine organism growth, reducing maintenance needs in seawater systems.

  6. Weldability and Machinability:

    • Easy to weld and machine, facilitating the manufacture of complex components.

  7. Durability in Harsh Environments:

    • Performs well in high-stress and high-temperature conditions without significant degradation.

  8. Longevity:

    • Low maintenance requirements and extended service life in challenging environments.

These features make CuNi4 a reliable material for marine, industrial, and architectural applications where corrosion resistance and durability are critical.

Applications:

1. Marine and Offshore Applications

  • Seawater Piping Systems: Used in pipes, fittings, and valves for seawater intake, cooling, and desalination systems, thanks to its resistance to seawater corrosion.
  • Marine Hardware: Fasteners, bolts, and other components exposed to the harsh conditions of seawater.
  • Shipbuilding: Used in hulls, propellers, and structural elements of ships and offshore platforms to resist corrosion and biofouling.

2. Heat Exchangers

  • Power Plants: CuNi4 is used in the tubing and components of heat exchangers, especially those exposed to high-temperature fluids in power generation systems.
  • Desalination Plants: Ideal for heat exchangers and evaporators due to its corrosion resistance in saline environments.

3. Chemical and Petrochemical Industries

  • Corrosion-Resistant Equipment: Components like heat exchangers, reactors, and tanks in chemical processing plants exposed to aggressive chemicals.

4. Electronics and Electrical Applications

  • Electrical Connectors and Resistance Elements: Due to its moderate electrical conductivity and resistance to corrosion, CuNi4 is used in connectors, resistive elements, and other electrical components.

5. Coinage

  • Coins: CuNi4 is used in minting coins due to its durability, resistance to wear, and corrosion resistance, providing long-lasting performance.

6. Architectural Applications

  • Cladding and Roofing: It is used in coastal or industrial architecture for cladding, roofing, and other exposed structures that are vulnerable to corrosion from saltwater and humidity.

CuNi4’s combination of corrosion resistance, mechanical properties, and ease of fabrication makes it an ideal choice for applications in marine, power generation, chemical processing, and architecture.

Main technical data

Type CuNi1NC003 CuNi2NC005 CuNi4NC007 CuNi6NC010 CuNi8NC012 CuMn3NC012 CuNi10NC015 CuNi14NC020 CuNi19NC025 CuNi23NC030 CuNi30NC035 CuNi34NC040 CuNi44NC050
Composition(%) Cu Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest Rest
Mn / / / / / 3 / 0.3 0.5 0.5 1.0 1.0 1.0
Ni 1 2 4 6 8 　 10 14.2 19 23 30 34 44
Max.continuous operating temperature(℃) 200 200· 200 220 250 200 250 300 300 300 350 350 400
Resistivity at 20℃(μ m) 0.03
±10%		 0.05
±10%		 0.07
±10%		 0.10
±10%		 0.12
±10%		 0.12
±10%		 0.15
±10%		 0.20
±5%		 0.25
±5%		 0.30
±5%		 0.35
±5%		 0.40
±5%		 0.49
±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃) ＜ 100 ＜ 120 ＜ 50 ＜ 60 ＜ 57 ＜ 38 ＜ 50 ＜ 38 ＜ 25 ＜ 16 ＜ 10 ＜ -0 ＜ -6
Thermovoltage to
copper at 20℃ in (μV/K)		 -8 -12 -12 -18 -22 1 -25 -28 -32 -34 -37 -39 -43
Mean coefficient of linear thermal expansion, in (10-6/K) , at a temperature between 20 ℃ and 400 ℃ 17.5 17.5 17.5 17.5 17.5 18 17.5 17.5 17.5 17.5 17.0 16.0 15.0
Thermal conductance
at 20℃ (W/mK)		 145 130 130 92 75 84 59 48 38 33 27 25 23
Specific heat capacity at 20℃ in (20℃ J/gK) 0.38 0.38 0.38 0.38 0.38 0.39 0.38 0.38 0.38 0.38 0.39 0.40 0.41
Density at 20 ℃(g/cm3) 8.9 8.9 8.9 8.9 8.9 8.8 8.9 8.9 8.9 8.9 8.9 8.9 8.9
Melting temperature in (℃) 1085 1090 1090 1095 1097 1050 1100 1115 1135 1150 1170 1180 1280
Min.tensile strength in (N/mm2) 210 220 220 250 270 290 290 310 340 350 400 400 420
Elongation(%) 25 25 25 25 25 25 25 25 25 25 25 25 25

Technical data table

Diameter(mm) NC003 CuNi1 NC005 CuNi2 NC007 CuNi4 NC010 CuNi6 NC012 CuNi8 NC015 CuNi10 NC020 CuNi14 NC025 CuNi19 NC030 CuNi23 NC035 CuNi30 NC040 CuNi34 NC050 CuNi44
0.10 3.82 6.36 8.91 12.73 15.28 19.09 25.46 31.83 38.19 44.56 50.93 62.39
0.11 3.16 5.26 7.37 10.52 12.63 15.78 21.04 26.30 31.56 36.82 42.09 51.56
0.12 2.65 4.42 6.19 8.84 10.61 13.26 17.68 22.10 26.52 30.94 35.37 43.33
0.13 2.26 3.76 5.27 7.53 9.04 11.30 15.07 18.83 22.60 26.36 30.14 36.92
0.14 1.95 3.24 4.55 6.49 7.80 9.74 12.99 16.24 19.48 22.73 25.98 31.83
0.15 1.70 2.82 3.96 5.65 6.79 8.48 11.31 14.14 16.97 19.80 22.64 27.73
0.16 1.49 2.48 3.48 4.97 5.97 7.46 9.95 12.43 14.92 17.40 19.89 24.37
0.17 1.32 2.20 3.08 4.40 5.29 6.60 8.81 11.01 13.21 15.41 17.62 21.59
0.18 1.18 1.96 2.75 3.92 4.72 5.89 7.86 9.82 11.78 13.75 15.72 19.26
0.19 1.06 1.76 2.47 3.52 4.23 5.29 7.05 8.81 10.58 12.34 14.11 17.28
0.20 0.95 1.59 2.23 3.18 3.82 4.77 6.36 7.95 9.54 11.14 12.73 15.60
0.21 0.87 1.44 2.02 2.88 3.46 4.33 5.77 7.21 8.66 10.10 11.55 14.15
0.22 0.79 1.31 1.84 2.63 3.16 3.94 5.26 6.57 7.89 9.20 10.52 12.89
0.23 0.72 1.20 1.68 2.40 2.89 3.61 4.81 6.01 7.22 8.42 9.63 11.79
0.24 0.66 1.10 1.55 2.21 2.65 3.31 4.42 5.52 6.63 7.73 8.84 10.83
0.25 0.61 1.01 1.43 2.03 2.44 3.05 4.07 5.09 6.11 7.13 8.15 9.98
0.26 0.57 0.94 1.32 1.88 2.26 2.82 3.77 4.70 5.65 6.59 7.53 9.23
0.27 0.52 0.87 1.22 1.74 2.10 2.61 3.49 4.36 5.23 6.11 6.99 8.56
0.28 0.49 0.81 1.14 1.62 1.95 2.43 3.25 4.06 4.87 5.68 6.50 7.96
0.29 0.45 0.75 1.06 1.51 1.82 2.27 3.03 3.78 4.54 5.29 6.06 7.42
0.30 0.42 0.70 0.99 1.41 1.70 2.12 2.83 3.53 4.24 4.95 5.66 6.93
0.31 0.40 0.66 0.93 1.32 1.59 1.98 2.65 3.31 3.97 4.63 5.30 6.49
0.32 0.37 0.62 0.87 1.24 1.49 1.86 2.49 3.11 3.73 4.35 4.97 6.09
0.33 0.35 0.58 0.82 1.17 1.40 1.75 2.34 2.92 3.51 4.09 4.68 5.73
0.34 0.33 0.55 0.77 1.10 1.32 1.65 2.20 2.75 3.30 3.85 4.41 5.40
0.35 0.31 0.51 0.73 1.03 1.25 1.55 2.08 2.60 3.11 3.63 4.16 5.09
0.36 0.29 0.49 0.69 0.98 1.18 1.47 1.96 2.46 2.94 3.43 3.93 4.81
0.37 0.28 0.46 0.65 0.93 1.12 1.39 1.86 2.33 2.79 3.25 3.72 4.56
0.38 0.26 0.44 0.62 0.88 1.06 1.32 1.76 2.20 2.64 3.08 3.53 4.32
0.40 0.24 0.39 0.56 0.79 0.95 1.19 1.59 1.99 2.38 2.78 3.18 3.90
0.41 0.23 0.37 0.53 0.76 0.91 1.13 1.51 1.89 2.27 2.65 3.03 3.71
0.42 0.22 0.36 0.51 0.72 0.87 1.08 1.44 1.80 2.16 2.52 2.89 3.54
0.43 0.21 0.34 0.48 0.69 0.83 1.03 1.38 1.72 2.06 2.41 2.75 3.37
0.44 0.20 0.32 0.46 0.66 0.79 0.98 1.31 1.64 1.97 2.30 2.63 3.22
0.45 0.19 0.31 0.44 0.63 0.75 0.94 1.26 1.57 1.88 2.20 2.52 3.08
0.46 0.18 0.30 0.42 0.60 0.72 0.90 1.20 1.50 1.80 2.10 2.41 2.95
0.47 0.17 0.28 0.40 0.58 0.69 0.86 1.15 1.44 1.72 2.01 2.31 2.82
0.48 0.17 0.27 0.39 0.55 0.66 0.82 1.10 1.38 1.65 1.93 2.21 2.71
0.49 0.16 0.26 0.37 0.53 0.64 0.79 1.06 1.33 1.59 1.85 2.12 2.60
0.50 0.15 0.25 0.36 0.51 0.61 0.76 1.01 1.27 1.52 1.78 2.04 2.50
0.51 0.15 0.24 0.34 0.49 0.59 0.73 0.98 1.22 1.46 1.71 1.96 2.40
0.52 0.14 0.23 0.33 0.47 0.57 0.70 0.94 1.18 1.41 1.65 1.88 2.31
0.53 0.14 0.22 0.32 0.45 0.54 0.67 0.91 1.13 1.35 1.59 1.81 2.22
0.54 0.13 0.22 0.31 0.44 0.52 0.65 0.87 1.09 1.30 1.53 1.75 2.14
0.55 0.13 0.21 0.29 0.42 0.51 0.63 0.84 1.05 1.26 1.47 1.68 2.06
0.56 0.12 0.20 0.28 0.41 0.49 0.60 0.81 1.02 1.21 1.42 1.62 1.99
0.57 0.12 0.19 0.27 0.39 0.47 0.58 0.78 0.98 1.17 1.37 1.57 1.92
0.58 0.11 0.19 0.27 0.38 0.45 0.56 0.76 0.95 1.13 1.32 1.51 1.85
0.59 0.11 0.18 0.26 0.37 0.44 0.54 0.73 0.91 1.09 1.28 1.46 1.79
0.60 0.11 0.18 0.25 0.35 0.42 0.53 0.71 0.88 1.06 1.24 1.41 1.73
  • Tolerance of ohm/m: ±5%
  • Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
  • Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
