Specifications
Brand Name :
GY
Certification :
CE, FCC, SGS, ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5-8 workdays after payment
Packaging Details :
wooden boxes
Product Name :
Induction Hardening Machine
Net Weight :
900kgs
Warranty :
12months
Technology support :
All life
After-sales Service Provided :
Engineer On-site Service, Online Support, Video Technical Support
Work time :
24 hours a day
Features :
Energy saving, safer, more efficient, environmentally,
Application :
Induction Quenching, Induction Hardening
Description

Controllability And Repeatability Induction Hardening Machine For Metal Workpiece

Industrial Induction Surface Hardening Machine For Metal Quenching

Induction Hardening Machine

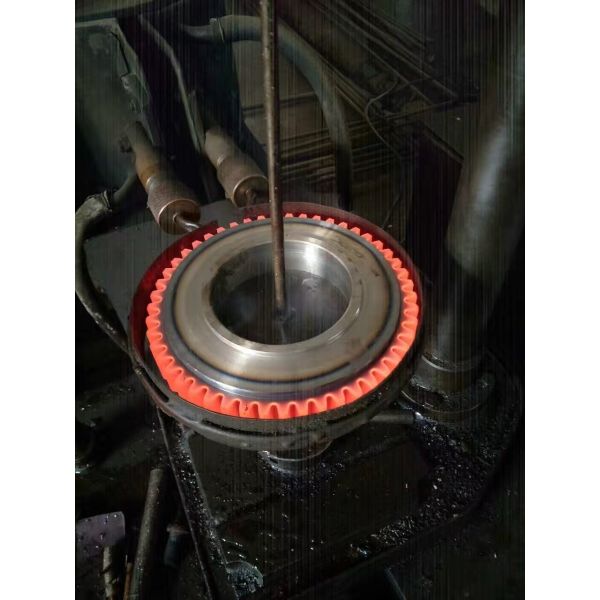

Induction hardening is the most effective heat treatment method to improve the surface wear resistance and hardness of metal parts. It rapidly heats carbon steel parts to a set temperature by induction heating and then cools quickly. Induction hardened metal workpieces increase in hardness.

The most significant benefit of induction hardening is its controllability and repeatability. You can set the position and temperature of the heated metal workpiece. You can also precisely control the depth and time of hardening by adjusting the power, frequency, and induction coil of the hardening equipment. This ensures consistent results for metal workpieces.

Industrial Induction Surface Hardening Machine For Metal Quenching

Quick Detail:

Name Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear Application Quenching
Net weight 900kg Cooling method immersion, hydrojet
Dimension 1100*900*2000 Certificate CE,SGS

Technical Parameters

  • The maximum diameter of quenching material: 300mm
  • The maximum weight of the work piece: 50kg
  • Work piece operating speed:1-30mm/s
  • Work piece descent speed: 120mm/s
  • Speed of main shaft:1-200r/min
  • Motor power of main drive: 1.5kw
  • Cooling method: immersion, hydrojet
  • Machine Weight: 900kg
  • Dimension: 1100*900*2000
  • Transmission mode: mechanical rotation

Industrial Induction Surface Hardening Machine For Metal Quenching

Advantages of induction hardening:

Induction hardening offers a range of advantages over other hardening approaches. It is possible to harden a specific workpiece area with the exact penetration depth using induction hardening. Many applications require hardening the workpiece only on a particular section, which can be achieved by controlling the operational variables, such as the amount of current, heating time, and current frequency. In addition, a customized coil can be designed for the process based on specific use.

Following are the other key advantages of the induction hardening process.

  • Induction hardening can heat and cool a metal component much faster than other methods, such as flame or furnace hardening.
  • It customizes the hardness of the steel workpiece to the desired level.
  • Induction hardening is the best approach to get uniform hardening throughout the material structure.
  • It requires low manual labor and can be completely automated, depending on the requirements.
  • It is generally more energy efficient than other methods, as it heats and cools the component more quickly and requires less energy to maintain the high temperatures.
  • Induction hardening allows for greater control of the heating and cooling rates, which can result in a more consistent and precise hardening of the component.
  • The induction hardening process minimizes the risk of defective parts and directly contributes to the hardening cost. In addition, the automation in induction hardening reduces manual labor and helps to reduce the overall cost.

Industrial Induction Surface Hardening Machine For Metal Quenching

Industrial Induction Surface Hardening Machine For Metal Quenching

Industrial Induction Surface Hardening Machine For Metal Quenching

Our services


Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory


In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.


After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
