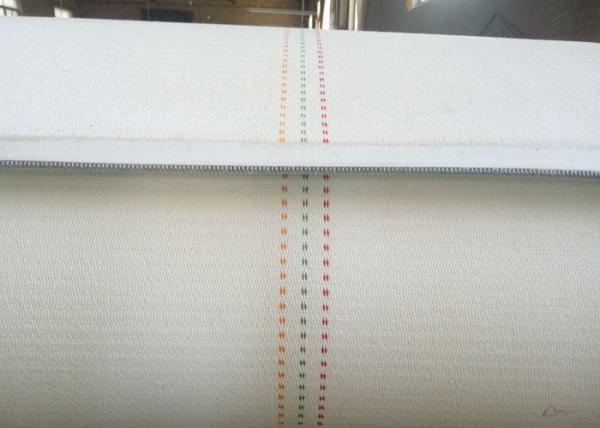

Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Low Noise Woven Corrugator Belt Heat - Resistance 65Mpa Tensile Strength
Specifications
Brand Name :
ANKE
Model Number :
AIF-T006
Place of Origin :
CHINA
MOQ :
1 piece
Price :
US $70/ M2
Payment Terms :
T/T, L/C
Delivery Time :
20000 PCS/Year
Packaging Details :
Pes Woven Materials with Metal Pallet
Material :
Polyester Synthetic Fiber
Types :
Conveyor
Width :
1400-3200mm
Shipment Packing :
Pes Woven Materials with Metal Pallet
Port :
Shanghai,China
HS Code :
59100000
Description

High-speed Corrugator Woven Belt with Low Noise

Technical Specifications:

Thickness (9±0.30)mm
Width (1400-3200)mm
Heat-resistance 200ºC
Tensile strength 65Mpa
Coefficient of friction ≥0.4u
Weight per unit (7.5 ± 0.3)kg/m2
Air-permeability 2.0m3/m2min.



Products Features

Tensile strength: Warp direction (63-75) Mpa in dry mode.
Heat resistance: Raw materials are polyester synthetic fiber, softening point≥260ºC.
Moisture absorption: Quick absorption and emission of heat, therefore cardboard can be quickly dried.
Seams: Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness and non-marking.
Suitability: Suitable for all types of corrugators, various cardboards and some particular operation mode.
Geometrical dimension: Steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard.
Service life: As long as the same products imported abroad.

The weaving belts of single weft and multi-layer warps are widely used in the corrugated board production lines.
We can manufacture various kinds of industrial belts according to customers' requirements.

Welcome your inquire and trial order. If you need info about other products, please feel free to contact with me.
