Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation
Specifications
Brand Name :
UPTOGETHER
Model Number :
EPDM CST
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
100 Piece/Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
EPDM Rubber
Rated Voltage :
1kV
Shrink Ratio :
2:1-4.5:1
Length :
100-500
Application :
Low Voltage
Tensile Strength :
12Mpa
Color :
Black
Description

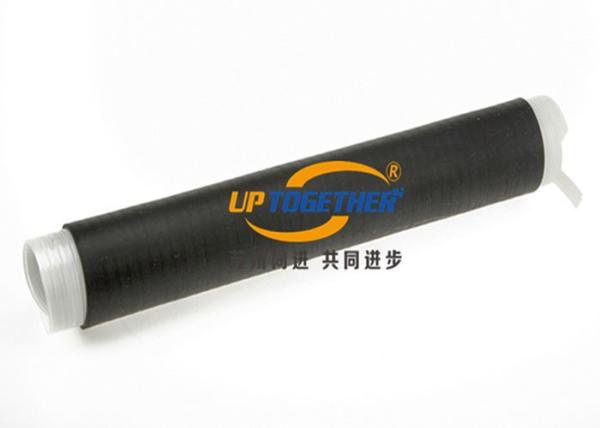

EPDM cold shrink tube EPDM CST , φ20-φ150mm , Material EPDM Rubber , Black

1. Product Introduction

EPDM-CST series of EPDM cold shrink tube is made from EPDM rubber material,series of EPDM cold shrink tube is made from EPDM rubber material,is suitable for the sealing and protection to communication cable in mobile station.It is very simple to install.It is made of high grade material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.

Durable EPDM CST Cold Shrink Tube 12Mpa Tensile Strength Easy Installation

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D412 12MPa
Elongation ASTM D412 680%
Tear strength ASTMD751 25KN/m
Dielectric strength ASTM D149 25kv/mm
Shore A ASTM D2240 50

3. Specification Packaging

General EPDM Cold Shrink Tube

Size Application Range (mm/inch) Length after Relaxed (mm/inch) Color
Φ20 8～15/0.30～0.59 152～457/6～18 Black
Φ25 10～20/0.39～0.79 152～457/6～18 Black
Φ35 14～30/0.55～1.18 152～457/6～18 Black
Φ40 17.5～33/0.69～1.30 152～457/6～18 Black
Φ53 25～46/0.98～1.81 152～457/6～18 Black
Φ70 32～63/1.26～2.48 152～457/6～18 Black
Ф104 43～94/1.69～3.70 152～457/6～18 Black
Ф125 46～114/1.81～4.49 152～457/6～18 Black
Ф150 55-135/2.17～5.31 152～457/6～18 Black

Other sizes and length can be customized.

High Shrinkage Ratio EPDM Cold Shrink Tube

Size Application Range (mm/inch) Length after Relaxed (mm/inch) Color
Φ35 12.5～30/0.49～1.18 152～457/6～18 Black
Φ40 14～33/0.55～1.30 152～457/6～18 Black
Φ53 19～46/0.75～1.81 152～457/6～18 Black
Ф60 20.5～51/0.81～2.01 152～457/6～18 Black
Ф70 25～63/0.98～2.48 152～457/6～18 Black
Ф80 27.4～70/1.08～2.75 152～457/6～18 Black

Other sizes and length can be customized.

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

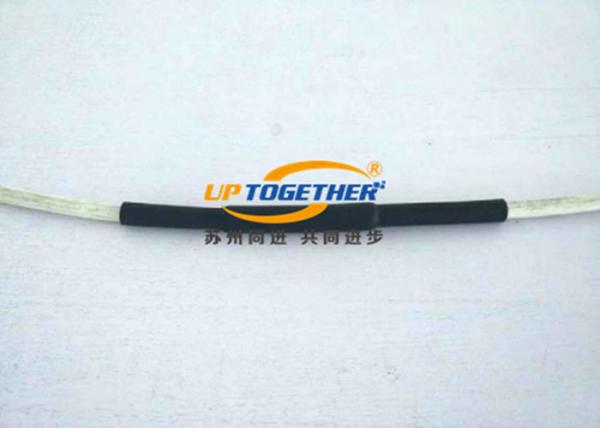

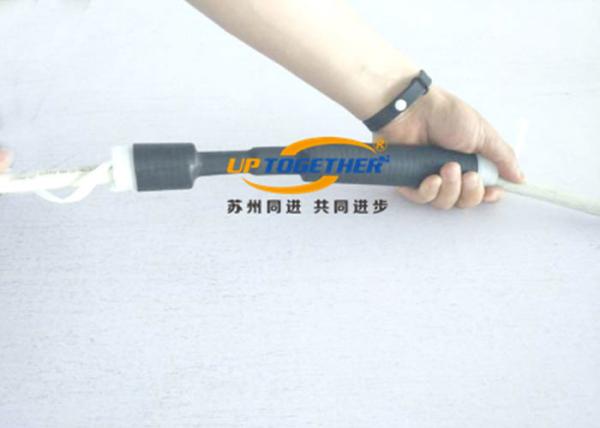

5. Application Case
