Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
Specifications
Brand Name :
UPTOGETHER
Model Number :
SR CST
Certification :
SGS
Place of Origin :
China (Mainland)
MOQ :
500 Piece/Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
4000 Piece/Pieces per Day
Delivery Time :
3-15days
Packaging Details :
Carton
Material :
Silicon Rubber
Rated Voltage :
1kV
Type :
Insulation Sleeving
Application :
Low Voltage
Tensile Strength :
12MPa
Color :
Black,Grey
Description

Silicon Rubber Cold Shrink Tube For Sealing Of Feeder Connections SR CST φ25-φ80mm

1. Product Introducton

SR CST series of silicon rubber cold shrink tube with high shrink ratio is made from silicon rubber material,suitable for sealing and protection of many kinds of cables.SR CST are widely used in mobile communication station and other field.It is very simple to install.The material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.

Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance

2. Technical Parameter

Size

Application Range (mm)

Length After Relaxed (mm)

Thickness After Relaxed (mm)

Color

Φ25

 6.3～21 90～500 3.0

Black/Grey

Φ32

 10～26 90～500 3.0

Black/Grey

Φ35

 12～30 90～500 3.0

Black/Grey

Φ40

 12.7～33 90～500 3.0

Black/Grey

Φ44

 12.7～38 90～500 3.0

Black/Grey

Φ53

 22～46 90～500 3.0

Black/Grey

Ф65

 32～58 90～500 3.5

Black/Grey

Ф80

 37～72 90～500 4.0

Black/Grey

The shrinkage ratio can be 5:1
Other sizes,length&color can be customized.

3. Specification Packaging

No. Property Result Standard
1 Colour Black,Grey
2 Dielectric Strength KV/mm ≧20 ASTM 412
3 Volume Resistivity Ω.cm 9×1014 ASTM 412
4 Support Bar Material PP
5 RohS Testing Pass RohS
6 Hardness(Shore A) 44 ASTM D2240
7 Tensile Strength MPa ≧7 ASTM D2671
8 Elongation % ≧670 ASTM D2671
9 Tear Strength KN/m ≧34 ASTM 751
10 Max Operating Temperature 90℃
11 Min Operating Temperature -50℃
12 Hydrophobic Rate Excellent
13 Protection Grade IP 68 IEC 60529
14 Fire Resistance V-1 UL94
15 UV Resistance Grey Scale Rating 3-4 ASTM G154
16 Ozone Resistance No crack GB/T 7762
17 Anti-fungal Effect Level 0 GB/T 2423.16
18 Density g/cm3 1.13 ASTM D 792
19 Storage time 2 Year
20 Service life 30 Years

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

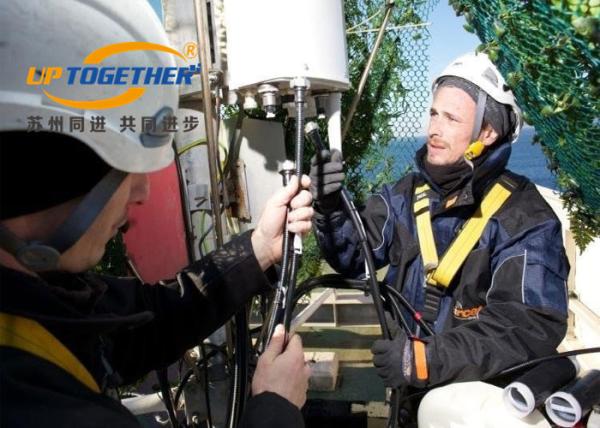

5. Application Case
Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance
