EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
Specifications
Brand Name :
UPTOGETHER
Model Number :
CST D
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
500 Piece/Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
Silicone Rubber or EPDM
Rated Voltage :
1kV
Shrink Ratio :
2:1-5:1
Length :
100-500mm
Application :
Low Voltage
Tensile Strength :
7-12Mpa
ID :
20-150mm
Temperature :
-60℃-90℃
Description

Cold shrink tubing with double strips CST D , Material Silicone Rubber , EPDM , φ25-φ80mm

1. Product Introduction

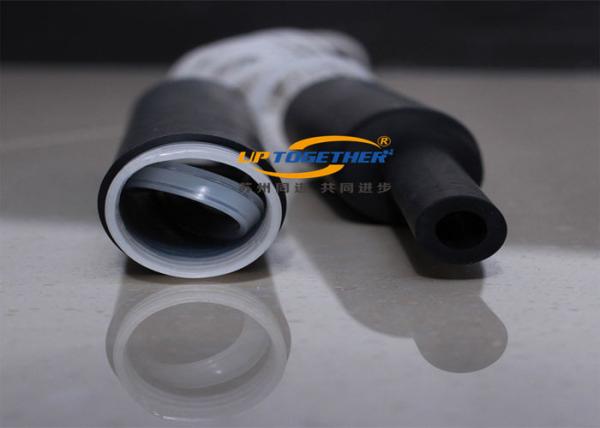

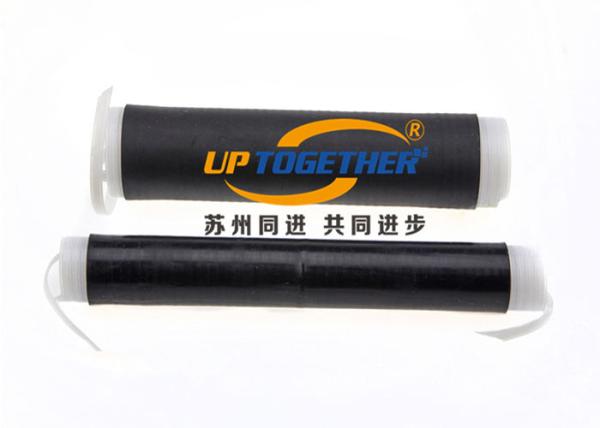

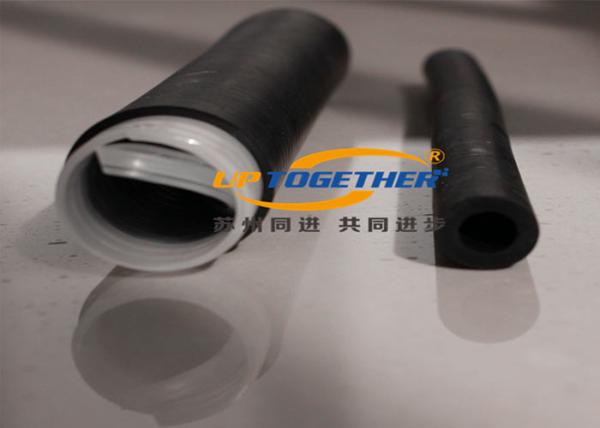

CST(DS) series of silicon rubber cold shrink tube can be made from silicon rubber or EPDM material,it have two draw strips for each ends so that it can be install easily and positioned.It is very suitable for low voltage cable straight joint than need install the cold shrink tube exactly .The material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.

EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips

2. Technical Parameter

Property Test Method Silicon Rubber Result EPDM Result
Tensile strength ASTM D412 7MPa 12MPa
Elongation ASTM D412 670% 680%
Tear strength ASTMD751 34KN/m 25KN/m
Dielectric strength ASTM D149 25kv/mm 25kv/mm
Shore A ASTM D2240 42 50

3. Specification Packaging

Size Application Range (mm/inch) Length after Relaxed (mm/inch) Color
Φ25 6.3～21/0.25～0.59 90～180/3.5～7 Black
Φ32 10～26/0.39～1.02 90～180/3.5～7 Black
Φ35 12～30/0.47～1.18 90～180/3.5～7 Black
Φ40 12.7～33/0.50～1.30 90～450/3.5～17.7 Black
Φ44 12.7～38/0.50～1.50 90～450/3.5～17.7 Black
Φ53 22～46/0.87～1.81 90～500/3.5～19.7 Black
Ф65 32～58/1.26～2.28 90～500/3.5～19.7 Black
Ф80 37～72/1.46～2.83 90～500/3.5～19.7 Black

The shrinkage ratio can be 5:1.

Other sizes,length&color can be customized.

4. Ordering Information

Packing
1By diffrent cartons and plastic pallents.
2.Anonymous packing is available.
3.OEM packing is available.
4.Do as customer's requirements.
Delivery
1.Our factory is nearby Shanghai.
2.Other seaport is acceptable.
3.Do as customer's requirements.

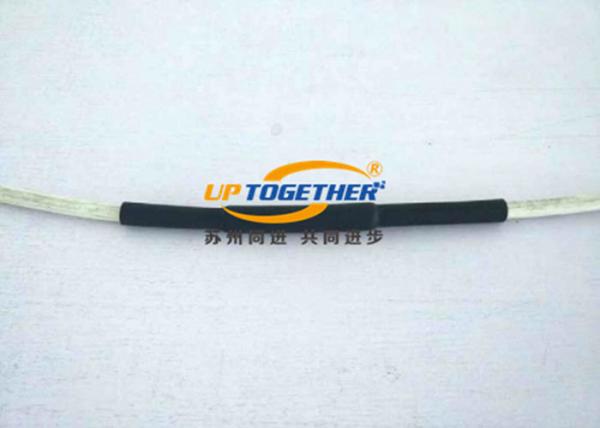

5. Application Case
EPDM Flexible Shrink Tubing , Cold Shrink Cable Tube With Double Strips
