PE Heat Shrink Cable Accessories , High Voltage Cable Jointing Kits
PE Heat Shrink Cable Accessories , High Voltage Cable Jointing Kits
Specifications
Brand Name :
UPTOGETHER
Model Number :
NRSY,WRSY,JRSY
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
$5.00 - $50.00 / Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Set/Sets per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
PE
Rated Voltage :
15kV
Size :
25-400mm2
Application :
High Voltage
Tensile Strength :
10.4Mpa
Voltage :
8.7/15kV,6/10kV,3/6kV
Description

15kV heat shrink termination kits , heat shrink cable accessories , 15kV NRSY-3/1 , material PE

1. Product Introduction

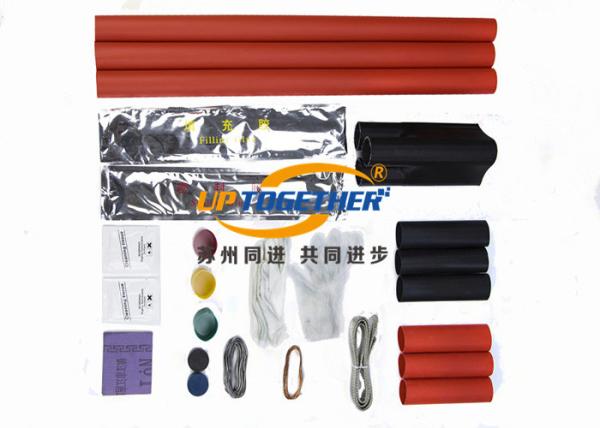

15KV heat shrink power cable terminations and joints are consist of anti-tracking tube,heat shrink protected tube,breakout,rain shed and stress control tube,widely used in electricity supply systems under 15kV in oil refinery,metallurgy, railway, ports and other area.1min Power frequency test:no flash,no strick no flash over.

PE Heat Shrink Cable Accessories , High Voltage Cable Jointing Kits

2. Technical Parameter

Property Test Method Result
1min Power frequency test 45kV 1min no flash over,no strick no flash,no strick no flash over
Partial discharge test The magnitude of discharge at 13kV shall not exceed 20pc The magnitude of the discharge of the combination sample didn't exceed 2pc at 13kV
Cyclic load test

5h heating,conduction

temperature 95℃,3h colling

Subjected to 3 time

Cyclic load test
Impulse voltage withstand test Neither breakdown nor flashover shall occur at 10 positive and negative impulses of 105kV No breakdown nor flashover occurred on the combination sample at 10 positive and 10 negative impulses of 105kV
DC negative polarity voltage withstand for 15min Neither breakdown nor flashover shall occur at 52kV for 15 min No breakdown nor flashover occurred on the combination samples at 52kV for 15 min
4h Power frequency test 35kV 4h no flash over,no strick no strick,no flash over

3. Specification Packaging

Size Type Cable Range
15kV NRSY -3/1

INDOOR TERMINATION FOR

15kV 3 CORES CABLE

 25-50mm2
15kV NRSY -3/2 70-120mm2
15kV NRSY -3/3 150-240mm2
15kV NRSY -3/4 300-400mm2
15kV WRSY -3/1

OUTDOOR TERMINATION FOR

15kV 3 CORES CABLE

 25-50mm2
15kV WRSY -3/2 70-120mm2
15kV WRSY -3/3 150-240mm2
15kV WRSY -3/4 300-400mm2
15kV JRSY -3/1

STRAIGHT THROUGH JOINT
FOR 15kV 3 CORES CABLE

 25-50mm2
15kV JRSY -3/2 70-120mm2
15kV JRSY -1/3 150-240mm2
15kV JRSY -1/4 300-400mm2
15kV NRSY -1/1

INDOOR TERMINATION FOR

15kV SINGLE CORE CABLE

 25-50mm2
15kV NRSY -1/2 70-120mm2
15kV NRSY -1/3 150-240mm2
15kV NRSY -1/4 300-400mm2
15kV WRSY -1/1

OUTDOOR TERMINATION FOR

15kV SINGLE CORE CABLE

 25-50mm2
15kV WRSY -1/2 70-120mm2
15kV WRSY -1/3 150-240mm2
15kV WRSY -1/4 300-400mm2
15kV JRSY -1/1 STRAIGHT THROUGH JOINT
FOR 15kV SINGLE CORE CABLE		 25-50mm2
15kV JRSY -1/2 70-120mm2
15kV JRSY -1/3 150-240mm2
15kV JRSY -1/4 300-400mm2

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
PE Heat Shrink Cable Accessories , High Voltage Cable Jointing Kits
