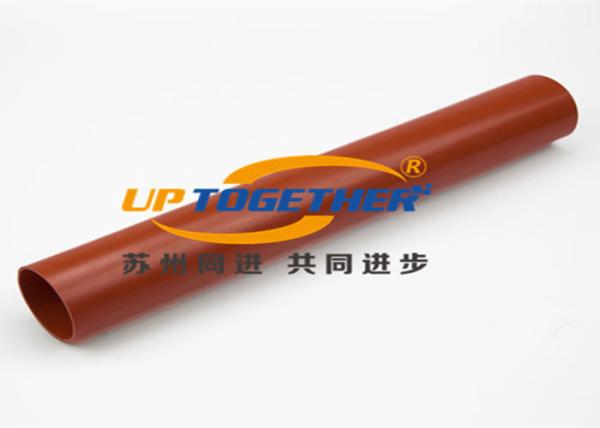

Red PE Jacket Heat Shrinkable Anti Tracking Tubing 10 - 1220MM Length
Red PE Jacket Heat Shrinkable Anti Tracking Tubing 10 - 1220MM Length
Specifications
Brand Name :
UPTOGETHER
Model Number :
ATT
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
100 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Jacket :
PE
Color :
PE
Length :
10-1220mm
Voltage :
10kV,36kV
Application :
25-630mm2
Shrink Ratio :
2:1-3:1
Glue :
Two ends, All length,Positon
ID :
30-100
Description

Heat shrink anti-tracking tube with glue ATT , φ30-φ100mm , Red , Jacket PE

1. Product Introduction

10kV 36kV ATT series of heat shrink anti-tracking tube with glue are made from polyolefin material with adhesive at both ends. They are suitable for power cable joint up to 36kv for protecting against accidental flashover.

Red PE Jacket Heat Shrinkable Anti Tracking Tubing 10 - 1220MM Length

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 11 N/mm2
Elongation ASTM D638 450%
Heat shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold blend@-30℃ ASTM D2671 No Cracking
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Tracking resistance ASTM D2303 Pass
Water absorption ASTM D570 <0.5%

3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(mm)

Inner

Diameter

Inner

Diameter

Inner Wall

Thickness
Ø30/12 ≥30 12 2.2 100～1220
Ø35/14 ≥35 14 2.3 100～1220
Ø40/17 ≥40 17 2.3 100～1220
Ø50/22 ≥50 22 2.4 100～1220
Ø35/13 ≥35 13 3.0 100～1220
Ø40/15 ≥40 15 3.0 100～1220
Ø50/19 ≥50 19 3.0 100～1220
Ø55/24 ≥55 24 3.2 100～1220
Ø60/26 ≥60 26 3.2 100～1220
Ø70/29 ≥70 29 3.2 100～1220
Ø75/35 ≥75 35 3.2 100～1220
Ø80/36 ≥80 36 3.2 100～1220
Ø90/41 ≥90 41 3.5 100～1220
Ø100/45 ≥100 45 3.5 100～1220

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
Red PE Jacket Heat Shrinkable Anti Tracking Tubing 10 - 1220MM Length
