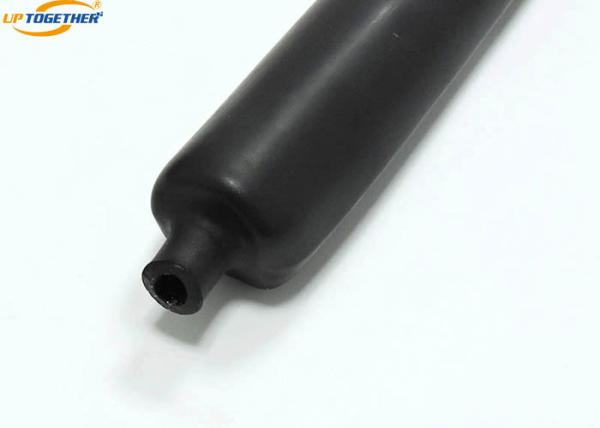

Continuous Long Heavy Wall Heat Shrink Tubing φ30 - φ350MM EVA Glue HWPC HWP
Continuous Long Heavy Wall Heat Shrink Tubing φ30 - φ350MM EVA Glue HWPC HWP
Specifications
Brand Name :
UPTTOGETHER
Model Number :
HWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Color :
Black
Voltage :
1-36kV
Glue :
Mechanical, EVA
Adhesive :
EVA
Shrink Ratio :
3:1
Description

Continuous Long Heavy Wall Tube With Adhesive HWPC HWP , φ30-φ350mm , Black


1. Product Introduction
MWPC series of heat shrink heavy wall tube are made from polyolefin material with with hot melting adhesive and medium wall thickness. They are suitable for sealing and protecting cable joint up to 35kV. They are also used to other situation for mechanical protection and seal. The flame resistance tube or other request can be custom made.
Continuous Long Heavy Wall Heat Shrink Tubing φ30 - φ350MM EVA Glue HWPC HWP

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 ≥14N/mm2
Elongation ASTM D638 ≥450%
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Eccentricity ASTM D2671 <30%
Water absorption ASTM D570 <0.5%
Peeling strength DIN 30672 ≥125N/25m


3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø30/12 ≥30 1.0+0.1 12.0 2.0±0.1
Ø35/14 ≥35 1.0+0.1 14.0 2.0±0.1
Ø40/16 ≥40 1.0+0.1 16.0 2.0±0.1
Ø50/20 ≥50 1.0+0.1 20.0 2.2±0.1
Ø63/25 ≥63 1.0+0.1 25.0 2.2±0.1
Ø75/30 ≥75 1.0+0.1 30.0 2.2±0.1
Ø85/35 ≥85 1.0+0.1 35.0 2.2±0.1
Ø95/40 ≥95 1.0+0.1 40.0 2.3±0.1
Ø115/50 ≥115 1.1+0.1 50.0 2.4±0.1
Ø140/60 ≥140 1.1+0.1 60.0 2.5±0.1
Ø160/60 ≥160 1.1+0.1 60.0 2.7±0.1
Ø180/60 ≥180 1.1+0.1 60.0 3.0±0.1
Ø200/65 ≥200 1.1+0.1 65.0 3.3±0.1
Ø250/75 ≥250 1.1+0.1 75.0 3.5±0.1
Ø300/75 ≥300 1.1+0.1 75.0 3.5±0.1
Ø350/75 ≥350 1.1+0.1 75.0 3.5±0.1

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.


5. Application Case
Continuous Long Heavy Wall Heat Shrink Tubing φ30 - φ350MM EVA Glue HWPC HWP
