Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
Specifications
Brand Name :
UPTOGETHER
Model Number :
DW
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
500 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Meter/Meters per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Insulation Material :
PE
Color :
black/red
Shrink Ratio :
2:1-3:1
Voltage :
10kV,36kV
Application :
25-400mm2
ID :
35-140mm
Length :
200-1220mm
Description

Semi-conductive/insulation dual wall heat shrink tube DW , φ35-φ140mm ,Black Red , Material PE

1. Product Introduction

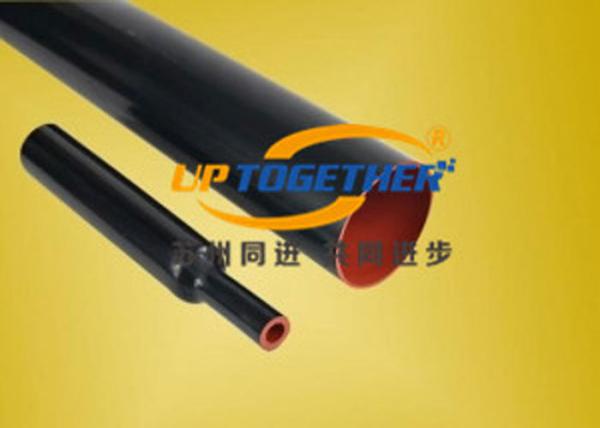

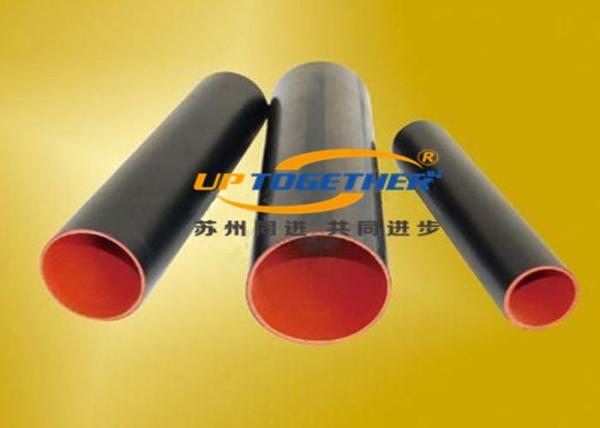

DW series of heat shrink semi-conductive/insulation dual wall tube are made from polyolefin material with red inner insulation layer and black outer semi-conductive layer. They are suitable for power cable joint up to 36kv.

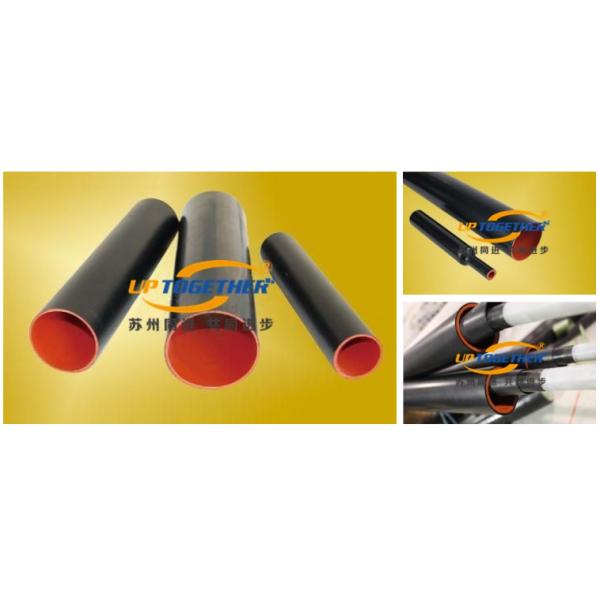

Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV

2. Technical Parameter

2. 1 Inner Insulation Layer

Property Test Method Result
Tensile strength ASTM D638 13 N/mm2
Elongation ASTM D638 450%
Heat shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold blend@-30℃ ASTM D2671 No Cracking
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Water absorption ASTM D570 <0.5%

2. 2 Outer Semi-conductive Layer

Property Test Method Result
Tensile strength ASTM D638 14 N/mm2
Elongation ASTM D638 300%
Heat shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold blend@-30℃ ASTM D2671 No Cracking
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x102Ω.cm
Water absorption ASTM D570 <0.5%

3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(M/Spool)

Inner

Diameter

Inner

Diameter

Inner Wall

Thickness

outer Wall

Thickness
Ø35 ≥35 12 1.4 4.6 1～1.22m/pc
Ø45 ≥45 15 1.4 4.6 1～1.22m/pc
Ø55 ≥55 18 1.4 4.6 1～1.22m/pc
Ø65 ≥65 25 1.4 4.7 1～1.22m/pc
Ø85 ≥85 30 1.4 4.7 1～1.22m/pc
Ø100 ≥100 38 1.5 4.7 1～1.22m/pc
Ø120 ≥120 45 1.7 5.3 1～1.22m/pc
Ø140 ≥140 60 1.7 5.3 1～1.22m/pc

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

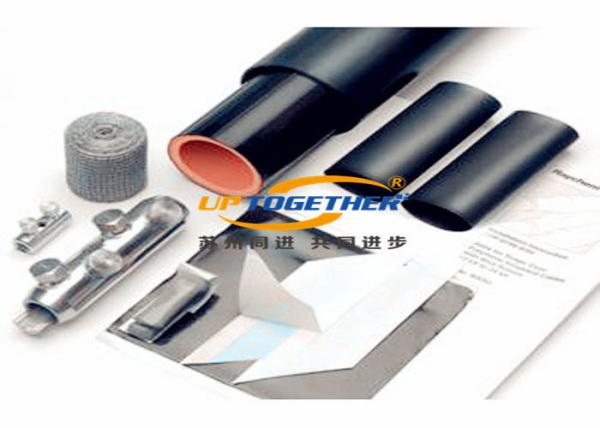

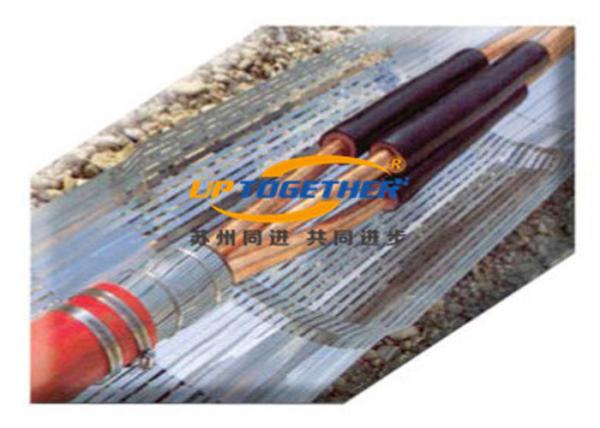

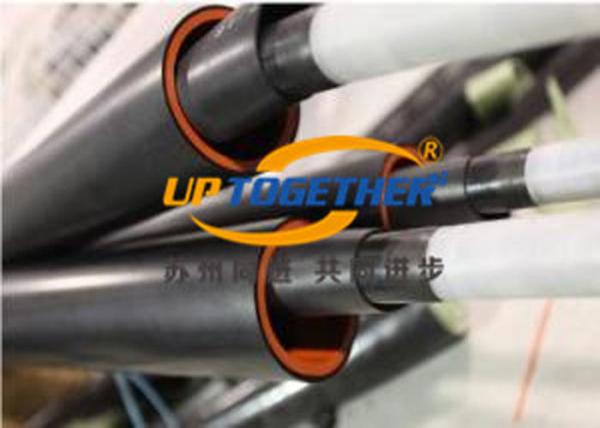

5. Application Case
Black Red Heavy Wall Heat Shrink Tubing Semi Conductive / Insulation 10 / 36kV
