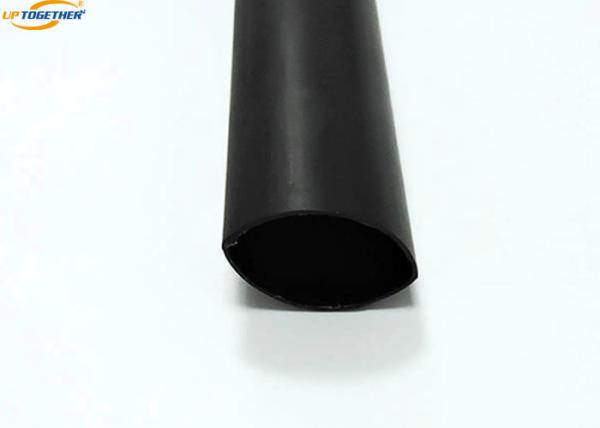

Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance
Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance
Specifications
Brand Name :
UPTTOGETHER
Model Number :
HWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Color :
Black
Voltage :
1-36kV
Shrink Ratio :
3:1
Tensile strength :
10.4Mpa
Application :
Low Voltage
Description

Heavy Wall Heat Shrink Tube HWPC HWP , φ30-φ350mm , Color Black

1. Product Introduction
Heavy wall heat shrink tubing is made of polyolefin materials whose properties are modified through special ionizing radiation process with electronic accelerators. It is flame retardant and highly insulating with a relatively thicker wall than normal single wall tubing. This product is found in many applications esp. flame retardant requiring conditions like insulation and protection for high voltage cable middle connections, terminations and busbar as well as different kinds of pipelines for its excellent corrosion resistance, abrasion resistance.


Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance

2. Technical Parameter

PropertyTest MethodResult
Tensile strengthASTM D638≥14N/mm2
ElongationASTM D638≥450%
Dielectric strengthASTM D14925kv/mm
Volume resistivityASTM D2571x1014Ω.cm
EccentricityASTM D2671<30%
Water absorptionASTM D570<0.5%
Peeling strengthDIN 30672≥125N/25m


3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)

Packing

(M/PC)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø28/8≥281.0+0.18.02.0±0.11～1.22
Ø30/12≥301.0+0.112.02.0±0.11～1.22
Ø35/14≥351.0+0.114.02.0±0.11～1.22
Ø40/16≥401.0+0.116.02.0±0.11～1.22
Ø50/20≥501.0+0.120.02.2±0.11～1.22
Ø63/25≥631.0+0.125.02.2±0.11～1.22
Ø75/30≥751.0+0.130.02.2±0.11～1.22
Ø85/35≥851.0+0.135.02.2±0.11～1.22
Ø95/40≥951.0+0.140.02.3±0.11～1.22
Ø115/50≥1151.1+0.150.02.4±0.11～1.22
Ø140/60≥1401.1+0.160.02.5±0.11～1.22
Ø160/60≥1601.1+0.160.02.7±0.11～1.22
Ø180/60≥1801.1+0.160.03.0±0.11～1.22
Ø200/65≥2001.1+0.165.03.3±0.11～1.22
Ø250/75≥2501.1+0.175.03.5±0.11～1.22
Ø300/75≥3001.1+0.175.03.5±0.11～1.22
Ø350/75≥3501.1+0.175.03.5±0.11～1.22


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

5. Application Case
Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance
