φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
Specifications
Brand Name :
UPTOGETHER
Model Number :
HWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Marterial :
PE
Color :
Black
Voltage :
1-36kV
ID :
30-350mm
Glue :
Mechanical, EVA
Adhesive :
EVA
Shrink Ratio :
3:1
Length :
0.1-1.22m
Description

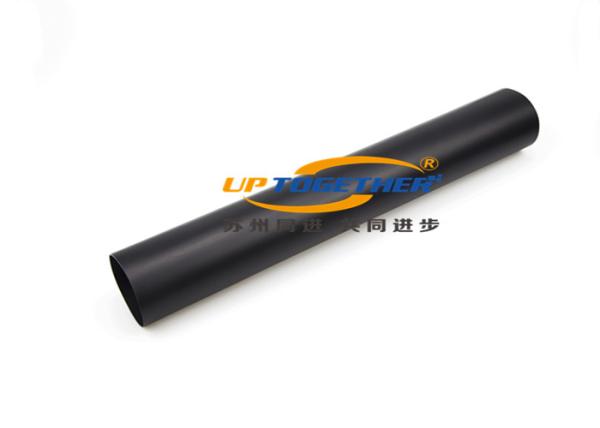

Heavy wall heat shrink tube with adhesive factory supplier HWPC HWP , φ30-φ350 , Black

1. Product Introduction
HWPC series of heat shrink medium wall tube are made from polyolefin material with with hot melting adhesive and medium wall thickness. They are suitable for sealing and protecting cable joint up to 35kV. They are also used to other situation for mechanical protection and seal. The flame resistance tube or other request can be custom made.

φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue

2. Technical Parameter

PropertyTest MethodResult
Tensile strengthASTM D638≥14N/mm2
ElongationASTM D638≥450%
Dielectric strengthASTM D14925kv/mm
Volume resistivityASTM D2571x1014Ω.cm
EccentricityASTM D2671<30%
Water absorptionASTM D570<0.5%
Peeling strengthDIN 30672≥125N/25m


3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)

Packing

(M/PC)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø28/8≥281.0+0.18.02.0±0.11～1.22
Ø30/12≥301.0+0.112.02.0±0.11～1.22
Ø35/14≥351.0+0.114.02.0±0.11～1.22
Ø40/16≥401.0+0.116.02.0±0.11～1.22
Ø50/20≥501.0+0.120.02.2±0.11～1.22
Ø63/25≥631.0+0.125.02.2±0.11～1.22
Ø75/30≥751.0+0.130.02.2±0.11～1.22
Ø85/35≥851.0+0.135.02.2±0.11～1.22
Ø95/40≥951.0+0.140.02.3±0.11～1.22
Ø115/50≥1151.1+0.150.02.4±0.11～1.22
Ø140/60≥1401.1+0.160.02.5±0.11～1.22
Ø160/60≥1601.1+0.160.02.7±0.11～1.22
Ø180/60≥1801.1+0.160.03.0±0.11～1.22
Ø200/65≥2001.1+0.165.03.3±0.11～1.22
Ø250/75≥2501.1+0.175.03.5±0.11～1.22
Ø300/75≥3001.1+0.175.03.5±0.11～1.22
Ø350/75≥3501.1+0.175.03.5±0.11～1.22


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

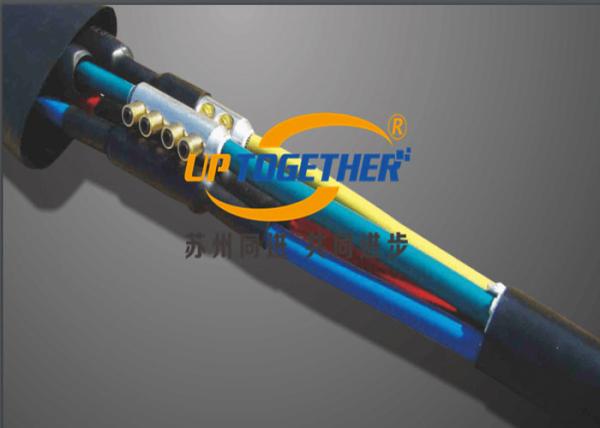

5. Application Case
φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
