Specifications
Brand Name :
UPTOGETHER
Model Number :
TLS JLS
Certification :
TICW
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Unit/Units
Price :
$1.00 - $40.00 / Units
Payment Terms :
L/C, T/T
Supply Ability :
1000 Unit/Units per Day
Delivery Time :
1-10 days
Packaging Details :
Carton
Material :
silicon rubber
Color :
Grey
Voltage :
less to 1kV(0.6/1kV)
Type :
Cold shrinkable, Termination,Straight Joint
Description

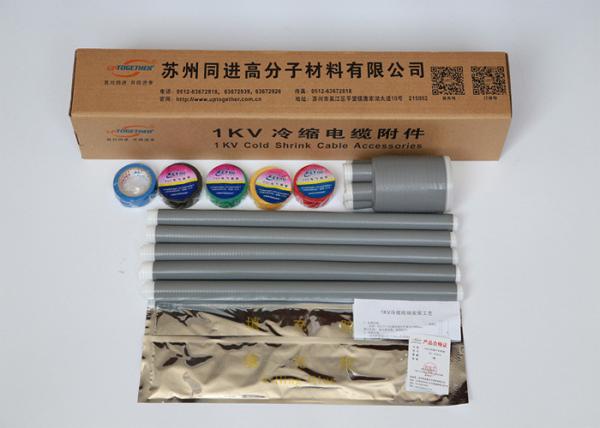

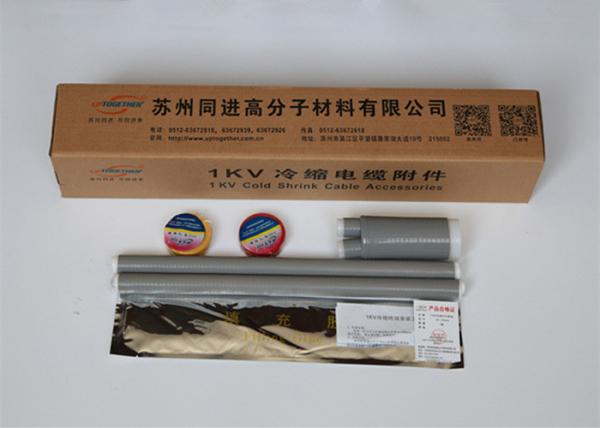

1kV Cold Shrinkable Termination kits TLS JLS , Silicon Rubber

1. Product Introduction

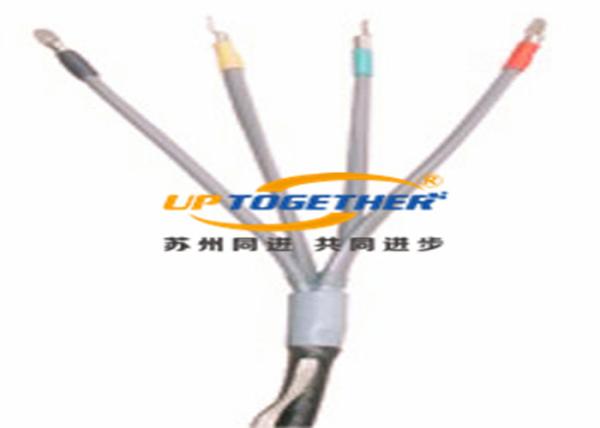

1kV Cold Shrinkable Termination kits TLS JLS , Silicon Rubber , 1kV cold shrink power cable terminations and joints are consist of cold shrink tube and cold shrink breakout ,widely used in electricity supply systems under 1kv in oil refinery,metallurgy, railway, ports and other area.Cyclic load test:Subjected to 3 time Cyclic load test.
Grey Cold Shrink Termination Kit , Low Voltage Termination Kit TLS JLS

2. Technical Parameter

PropertyTest MethodResult
1min Power frequency test4kV 1min no flash over,no strickno flash,n`o strick no flash over
Cyclic load test5h heating,conduction temperature 95℃,3h collingSubjected to 3 time Cyclic load test
4h Power frequency test2.4kV 4h no flash over,no strickno strick,no flash over


3. Specification Packaging

SizeTypeCable Range
1kV TLY -2/1

TERMINATION FOR

1kV 2 CORES CABLE

25-50mm2
1kV TLY -2/2 70-120mm2
1kV TLY -2/3 150-240mm2
1kV TLY -2/4 300-400mm2
1kV TLY -3/1

TERMINATION FOR

1kV 3 CORES CABLE

25-50mm2
1kV TLY-3/2 70-120mm2
1kVTLY -3/3 150-240mm2
1kV TLY -3/4 300-400mm2
1kV TLY -4/1

TERMINATION FOR

1kV 4 CORES CABLE(3+1)

25-50mm2
1kV TLY -4/2 70-120mm2
1kV TLY -4/3 150-240mm2
1kVTLY -4/4 300-400mm2
1kV TLY -5/1

TERMINATION FOR

1kV 5 CORES CABLE(3+2,4+1)

25-50mm2
1kV TLY -5/2 70-120mm2
1kV TLY -5/3 150-240mm2
1kV TLY -5/4 300-400mm2
1kV JLY -2/1STRAIGHT THROUGH JOINT
FOR 1kV 2 CORES CABLE		25-50mm2
1kV JLY -2/2 70-120mm2
1kV JLY -2/3 150-240mm2
1kV JLY -2/4 300-400mm2
1kV JLY -3/1STRAIGHT THROUGH JOINT
FOR 1kV 3 CORES CABLE		25-50mm2
1kV JLY -3/2 70-120mm2
1kV JLY -3/3 150-240mm2
1kV JLY -3/4 300-400mm2
1kV JLY -4/1STRAIGHT THROUGH JOINT
FOR 1kV 4 CORES CABLE(3+1)		25-50mm2
1kV JLY -4/2 70-120mm2
1kV JLY -4/3 150-240mm2
1kV JLY -4/4 300-400mm2
1kV JLY -5/1

STRAIGHT THROUGH JOINT
FOR 1kV 5 CORES CABLE

(3+2,4+1)

25-50mm2
1kV JLY -5/2 70-120mm2
1kV JLY -5/3 150-240mm2
1kV JLY -5/4 300-400mm2


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

5. Application Case
Grey Cold Shrink Termination Kit , Low Voltage Termination Kit TLS JLS
