Specifications
Brand Name :
UPTOGETHER
Model Number :
JLS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Unit/Units
Price :
$5.00 - $300.00 / Units
Payment Terms :
L/C, T/T
Supply Ability :
200 Unit/Units per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
Silicon Rubber
Color :
grey,red,yellow,green
Type :
Cold Shrinkable
Voltage :
10kV
Sample :
Available
Name :
10kV Cold Shrinkable straight joint kits
Description

10kV Cold Shrinkable straight joint kits JLS , Silicon rubber

1. Product Introduction

10kV(12/20kV)cold shrink power cable terminations and joints are consist of cold shrink tube,cold shrink termination,cold shrink joint and cold shrink breakout,widely used in electricity supply systems under 24kv in oil refinery,metallurgy, railway, ports and other area.

Colorful Medium Voltage Cable Termination , Cold Shrink Cable Jointing Kit

2. Technical Parameter

Property Test Method Result
1min Power frequency test 54kV 1min no flash over,no strick no flash,no strick no flash over
Partial discharge test The magnitude of discharge at 20kV shall not exceed 10pc The magnitude of the discharge of the combination sample didn't exceed 4pc at 20kV
Cyclic load test

5h heating,conduction

temperature 95℃,3h colling

Subjected to 3 time

Cyclic load test
Impulse voltage withstand test Neither breakdown nor flashover shall occur at 10 positive and negative impulses of 125kV No breakdown nor flashover occurred on the combination sample at 10 positive and 10 negative impulses of 125kV
DC negative polarity voltage withstand for 15min Neither breakdown nor flashover shall occur at 52kV for 15 min No breakdown nor flashover occurred on the combination samples at 52kV for 15 min
4h Power frequency test 35kV 4h no flash over,no strick no strick,no flash over

3. Specification Packaging

Size Type Cable Range
10kV NLY -3/1

INDOOR TERMINATION FOR

10kV 3 CORES CABLE

 35-50mm2
10kV NLY -3/2 70-120mm2
10kV NLY -3/3 150-240mm2
10kV NLY -3/4 300-400mm2
10kV WLY -3/1

OUTDOOR TERMINATION FOR

10kV 3 CORES CABLE

 35-50mm2
10kV WLY -3/2 70-120mm2
10kV WLY -3/3 150-240mm2
10kV WLY -3/4 300-400mm2
10kV JLY -3/1

STRAIGHT THROUGH JOINT
FOR 10kV 3 CORES CABLE

 35-50mm2
10kV JLY -3/2 70-120mm2
10kV JLY -1/3 150-240mm2
10kV JLY -1/4 300-400mm2
10kV NLY -1/1

INDOOR TERMINATION FOR

10kV SINGLE CORE CABLE

 35-50mm2
10kV NLY -1/2 70-120mm2
10kV NLY -1/3 150-240mm2
10kV NLY -1/4 300-400mm2
10kV WLY -1/1

INDOOR TERMINATION FOR

10kV SINGLE CORE CABLE

 35-50mm2
10kV WLY -1/2 70-120mm2
10kV WLY -1/3 150-240mm2
10kV WLY -1/4 300-400mm2
10kV JLY -1/1 STRAIGHT THROUGH JOINT
FOR10kV SINGLE CORE CABLE		 35-50mm2
10kV JLY -1/2 70-120mm2
10kV JLY -1/3 150-240mm2
10kV JLY -1/4 300-400mm2

4. Ordering Information

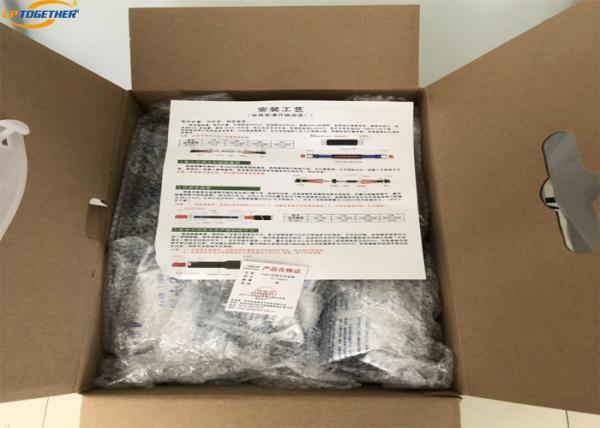

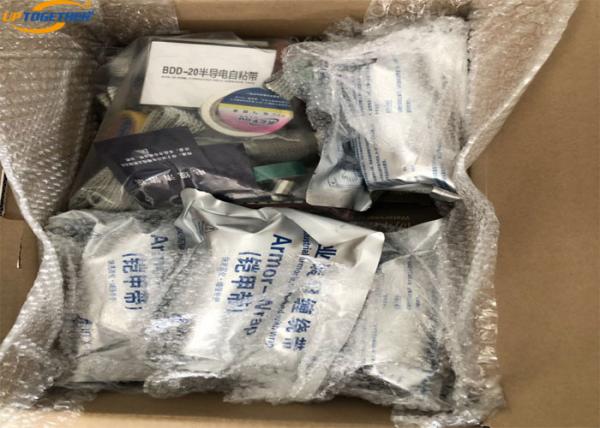

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
