φ4 - φ35MM PTFE Heat Shrink Tubing , Clear Color PVC Heat Shrink Tubing
φ4 - φ35MM PTFE Heat Shrink Tubing , Clear Color PVC Heat Shrink Tubing
Specifications
Brand Name :
UPTOGETHER
Model Number :
PTFE DRS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
400 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Meter/Meters per Day
Delivery Time :
1-15 days
Packaging Details :
Carton
Material :
PTFE
Color :
Clear
Sample :
Available
Voltage :
1kV
Type :
Insulation Sleeving
Usage :
Insulation Protection
Description

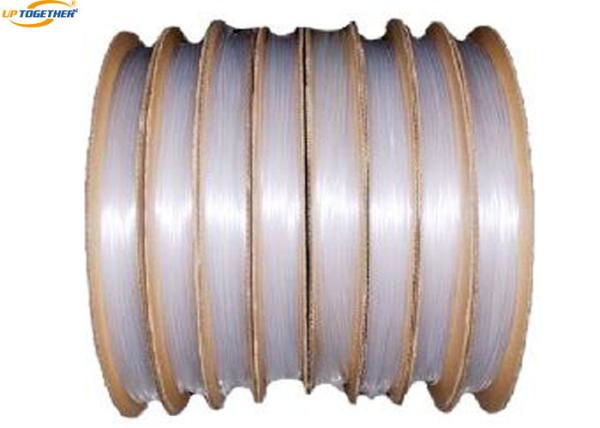

PTFE Heat Shrink Tube , φ4-φ35mm , Material PTFE , Heat shrinkable

1. Product Introduction

Heat Shrink Teflon Tubing can be widely used in science &technology field, such as chemistry, mechanical industries, astronautic industry, vehicles, transformers, communications, etc

Features/Benefits of teflon heat shrink tube

·Shrink ratio: 1.25 : 1.

·Excellent flame-retardant performance.(oxygen index>95%)

·Good chemical,insulation and abrasion-resistance performance..

·Environment friendly

Operating Temperature Range of teflon heat shrink tube

Operating temperature range: -65℃~204℃

Minimum full recovery temperature: 210℃

2. Technical Parameter

Property standard Test data
Tensile strength ≥25MPa ASTM D 2671
elongation at break ≥300% ASTM D 2671
Flammability VW-1 UL 224
dielectric strength ≥26kV/mm IEC 60243
volume resistivity ≥1014Ω.cm IEC 60093
copper corrosion Pass UL 224
water absorption <0.1% ASTM D 570

3. Specification Packaging

Item No. Inside diameter After recovery

Standard length

(m)
As supplied(min) Wall thickness Inside diameter(max) Wall thickness
KS-FEP0070 7 0.15 5.7 0.25±0.03 1
KS-FEP0115 11.5 0.3 9.3 0.37±0.05 1
KS-FEP0145 14.5 0.3 11.7 0.37±0.05 1
KS-FEP0190 19 0.3 15.3 0.37±0.05 1
KS-FEP0240 24 0.4 19.3 0.5±0.1 1
KS-FEP0280 28 0.4 22.5 0.5±0.1 1
KS-FEP0350 35 0.4 28.1 0.5±0.1 1
KS-FEP0440 44 0.4 36.1 0.5±0.1 1
KS-FEP0540 54 0.4 43.3 0.5±0.1 1
KS-FEP0660 66 0.4 52.9 0.5±0.1 1
KS-FEP07801/41/4 1/4 78 0.4 62.5 0.5±0.1 1
KS-FEP0900 90 0.4 72.1 0.5±0.1 1
KS-FEP1030 103 0.4 82.5 0.5±0.1 1

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.
