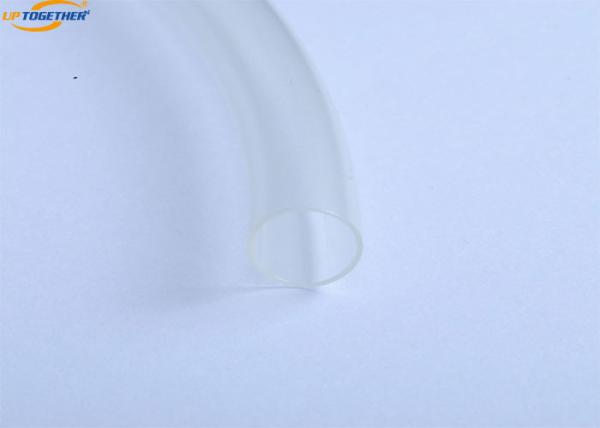

3/1 4/1 9.5mm 15mm Transparent Dual Wall Heat Shrink Tubing Optional Shrink Ratio φ3 . 2 - 125MM
3/1 4/1 9.5mm 15mm Transparent Dual Wall Heat Shrink Tubing Optional Shrink Ratio φ3 . 2 - 125MM
Specifications
Brand Name :
UPTOGETHER
Model Number :
DWDRS
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
200 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Product name :
Heat Shrinkable Tubes
Shrink Ratio :
3:1 and 4:1
Color :
Transparent
Rated Voltage :
1kV
Material :
PE
Type :
Insulation Sleeving, Flame Resisitance,Halogen Free
Application :
Low Voltage
Description

3/1 4/1 9.5mm 15mm Transparent Dual Wall Heat Shrink Tubing Optional Shrink Ratio φ3 . 2 - 125MM

1. Product Introduction

DWDRS series adhesive-line dual wall tube are adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.It reliably pretects wires,solder joints,terminals,connections and components from most industrial fuels,solventa and chemical.

Shrink ratio:2:1 3:1

our color use Transparent

Special colors can be customized according to the customer with the color card

2. Technical Parameter

Hot Melting Adhesive Property

Property Test Method Result
Water Absorption Ratio ASTM D570 <0.2%
Softening Point ASTM E8 95℃
Peeling Strength (PE) ASTM D1000 120N/25m
Peeling Strength (AL) ASTM D1000 80N/25m

3. Specification Packaging

3:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm
 Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø1/8 Ø3.2 3.2 1.0 0.90±0.15 0.35±0.10 200
Ø3/16 Ø4.8 4.8 1.6 1.00±0.15 0.40±0.10 100
Ø1/4 Ø6.4 6.4 2.20 1.25±0.15 0.45±0.12 100
Ø5/16 Ø7.9 7.9 2.70 1.30±0.15 0.50±0.12 100
Ø3/8 Ø9.5 9.5 3.20 1.40±0.15 0.50±0.12 50
Ø1/2 Ø12.7 12.7 4.20 1.70±0.15 0.50±0.12 36.6
Ø5/8 Ø15.0 15 5.20 1.80±0.15 0.55±0.15 30.5
Ø3/4 Ø19.1 19.1 6.30 1.95±0.15 0.55±0.15 30.5
Ø1 Ø25.4 25.4 8.50 2.05±0.20 0.55±0.15 30.5
Ø1-1/4 Ø30.0 30 10.20 2.20±0.20 0.60±0.15 24.4
Ø1-1/2 Ø39.0 39 13.50 2.50±0.20 0.60±0.15 18.3
Ø2 Ø50.0 50 17.00 2.80±0.25 0.70±0.15 12.2


4:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø5/32 Ø4.0 4 1 1.1±0.15 0.4±0.15 200
Ø1/4 Ø6.0 6 1.5 1.5±0.15 0.5±0.15 100
Ø5/16 Ø8.0 8 2 1.7±0.15 0.5±0.15 50
Ø1/2 Ø12.0 12 3 2.0±0.15 0.6±0.15 1.22m/pc
Ø5/8 Ø16.0 16 4 2.3±0.25 0.6±0.15 1.22m/pc
Ø25/32 Ø20.0 20 5 2.6±0.25 0.6±0.15 1.22m/pc
Ø1 Ø24.0 24 6 3.0±0.30 0.7±0.15 1.22m/pc
Ø3/2 Ø32.0 32 8 3.0±0.30 0.7±0.15 1.22m/pc
Ø2 Ø52.0 52 13 3.3±0.30 0.7±0.15 1.22m/pc

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case

3/1 4/1 9.5mm 15mm Transparent Dual Wall Heat Shrink Tubing Optional Shrink Ratio φ3 . 2 - 125MM
