Flame Resistance PE Dual Wall Heat Shrink Tubing ROHS Certification
Flame Resistance PE Dual Wall Heat Shrink Tubing ROHS Certification
Specifications
Brand Name :
UPTOGETHER
Model Number :
DWDRS
Certification :
ROHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
200 Meter/Meters
Price :
$0.05 - $15.00 / Meters
Payment Terms :
L/C, T/T
Supply Ability :
20000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Product Name :
Heat Shrink Tube With Glue
Type :
Insulation Sleeving
ID :
1-125mm
Color :
Black , White , Yelllow , Red , Green , Grey , Clear
Usage :
Insulation Protection
Description

Flame Resistance Heat Shrink Tube With Glue , Dual Wall Tube , PE

1. Product Introduction

Flame Resistance heat shrink tube with glue is a thin wall heat shrink tube which is lined a speical hot melting glue inner the tube , it is a heat shrink tubing with environmental sealing capability for a wide variety of electrical applications , including automotive and marine wire harness , wire splices , breakouts , and connector - to - cable transitions . The out jack material is irradated Polymer . The tube is Rohs approval . The out jacket is made of flame resitance material , the adhesive is not flame resistance .

3:1 or 4:1 shrink ratio

Longitudinal shrinkage < 5%

Flame retardant (out jacket only)

Super sealing against water , moisture or other contaminates

Continuous operating temperature : -45℃ - 125℃

Shrink Temperature : 125℃



2. Technical Parameter
PE Base Property

Property Test Method Result
Tensile Strength ASTM D638 10.3Mpa
Elongation ASTM D638 ≥300%
Dielectric Strength ASTM D149 ≥ 15kV/mm
Volume Resistivity ASTM D257 ≥ 1014Ω.cm
Longitudinal Change ASTM D2671 -10%～+10%
Flame Retardant UL224,VW-1 Pass
Heat Shock ASTM D2671 Pass
Cold Blend ASTM D2671 Pass
Water Absorption Ratio ASTM D570 <0.5%


Hot Melting Adhesive Property

Property Test Method Result
Water Absorption Ratio ASTM D570 <0.2%
Softening Point ASTM E8 95℃
Peeling Strength (PE) ASTM D1000 120N/25m
Peeling Strength (AL) ASTM D1000 80N/25m



3. Specification Packaging

3:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm
 Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø1/8 Ø3.2 3.2 1.0 0.90±0.15 0.35±0.10 200
Ø3/16 Ø4.8 4.8 1.6 1.00±0.15 0.40±0.10 100
Ø1/4 Ø6.4 6.4 2.20 1.25±0.15 0.45±0.12 100
Ø5/16 Ø7.9 7.9 2.70 1.30±0.15 0.50±0.12 100
Ø3/8 Ø9.5 9.5 3.20 1.40±0.15 0.50±0.12 50
Ø1/2 Ø12.7 12.7 4.20 1.70±0.15 0.50±0.12 36.6
Ø5/8 Ø15.0 15 5.20 1.80±0.15 0.55±0.15 30.5
Ø3/4 Ø19.1 19.1 6.30 1.95±0.15 0.55±0.15 30.5
Ø1 Ø25.4 25.4 8.50 2.05±0.20 0.55±0.15 30.5
Ø1-1/4 Ø30.0 30 10.20 2.20±0.20 0.60±0.15 24.4
Ø1-1/2 Ø39.0 39 13.50 2.50±0.20 0.60±0.15 18.3
Ø2 Ø50.0 50 17.00 2.80±0.25 0.70±0.15 12.2
Ø5/2 Ø64 64 21.00 3.00±0.25 0.70±0.15 6.1
Ø3 Ø75 75 25.00 3.00±0.30 1.00±0.20 1.22
Ø7/2 Ø90 90 30.00 3.00±0.30 1.00±0.20 1.22
Ø4 Ø100 100 34.00 3.00±0.30 1.00±0.20 1.22
Ø5 Ø125 125 42.00 3.00±0.30 1.00±0.20 1.22


4:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø5/32 Ø4.0 4 1 1.1±0.15 0.4±0.15 200
Ø1/4 Ø6.0 6 1.5 1.5±0.15 0.5±0.15 100
Ø5/16 Ø8.0 8 2 1.7±0.15 0.5±0.15 50
Ø1/2 Ø12.0 12 3 2.0±0.15 0.6±0.15 1.22m/pc
Ø5/8 Ø16.0 16 4 2.3±0.25 0.6±0.15 1.22m/pc
Ø25/32 Ø20.0 20 5 2.6±0.25 0.6±0.15 1.22m/pc
Ø1 Ø24.0 24 6 3.0±0.30 0.7±0.15 1.22m/pc
Ø3/2 Ø32.0 32 8 3.0±0.30 0.7±0.15 1.22m/pc
Ø2 Ø52.0 52 13 3.3±0.30 0.7±0.15 1.22m/pc

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

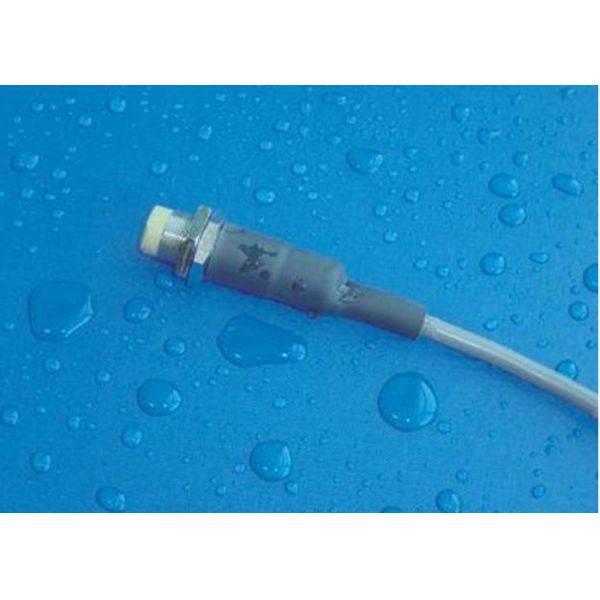

5. Application Case
Flame Resistance PE Dual Wall Heat Shrink Tubing ROHS Certification
