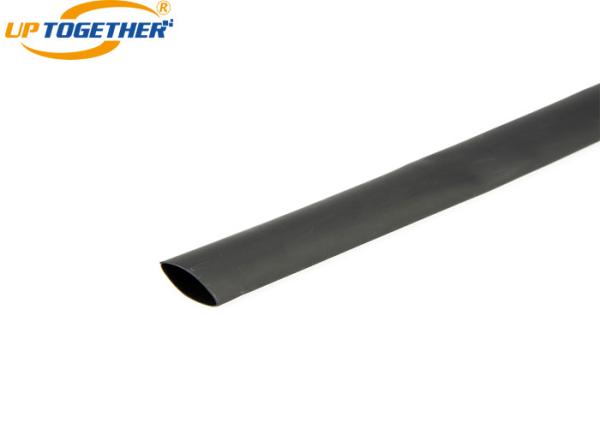

Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
Specifications
Brand Name :
UPTOGETHER
Model Number :
VWDRS
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
400 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 Meter/Meters per Day
Delivery Time :
1-15 days
Packaging Details :
Carton
Keywords :
Heat shrink tube
Colour :
Black
Application :
Waterproof connection
Wall :
Single Wall
Tensile Strength :
12 N/mm²
Usage :
Wiring insulation
Description

Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength

1. Product Introduction

JYDRS insulation tube is a heat shrink tube with thin wall.
For this type heat shrink tube, the material is a cheap one with no Rohs certification and not flame resistant.
It is a heat shrink tube just for speical usage that just need very cheap price.
This heat shrink tube will perfomance insulation and protection properties.
Shrink ratio is 2:1,
Continuous operating temperature:-55 ℃ to 125 ℃
Fully shrink temperature:125 ℃

2. Technical Parameter

Property Test Method Result
Tensile Strength ASTM D638 12 N/mm2
Elongation ASTM D638 300%
Heat Shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold Blend@-30℃ ASTM D2671 No Cracking
Dielectric Strength ASTM D149 15kv/mm
Voltage Withstand @2.5kv for 60 sec No breakdown
Volume Resistivity ASTM D257 1x1014Ω.cm
Longitudinal Change ASTM D2671 Inside +/- 5%

3. Specification Packing

2:1 Ratio

Size Before Applied (mm) After Applied (mm) Package
(mm) Internal Diameter

Wall

Thickness

 Internal Diameter

Wall

Thickness

 (M/Spool)
Ø3.0/1.5 3.5±0.2 0.18±0.05 ≤1.5 0.35±0.05 200
Ø3.5/1.75 4.0±0.2 0.18±0.05 ≤1.75 0.40±0.05 200
Ø4.0/2.0 4.5±0.2 0.20±0.05 ≤2.0 0.40±0.05 100
Ø5.0/2.5 5.5±0.3 0.20±0.08 ≤2.5 0.40±0.08 100
Ø6.0/3.0 6.5±0.3 0.20±0.08 ≤3.0 0.40±0.08 100
Ø7.0/3.5 7.5±0.3 0.20±0.08 ≤3.5 0.42±0.08 100
Ø8.0/4.0 8.5±0.3 0.20±0.08 ≤4.0 0.42±0.08 100
Ø9.0/4.5 9.6±0.3 0.22±0.08 ≤4.5 0.45±0.08 100
Ø10.0/5.0 10.6±0.4 0.22±0.08 ≤5.0 0.45±0.08 100
Ø11.0/5.5 11.6±0.4 0.22±0.10 ≤5.5 0.45±0.10 100
Ø12.0/6.0 12.6±0.4 0.22±0.10 ≤6.0 0.45±0.10 100
Ø13.0/6.5 13.6±0.4 0.23±0.10 ≤6.5 0.46±0.10 100
Ø14.0/7.0 14.6±0.4 0.23±0.10 ≤7.0 0.46±0.10 100
Ø15.0/7.5 15.6±0.5 0.23±0.10 ≤7.5 0.46±0.10 100
Ø16.0/8.0 16.6±0.5 0.25±0.10 ≤8.0 0.50±0.10 100
Ø18.0/9.0 18.6±0.5 0.25±0.10 ≤9.0 0.55±0.10 100
Ø20.0/10.0 20.6±0.6 0.25±0.10 ≤10.0 0.55±0.10 100
Ø22.0/11.0 22.6±0.6 0.28±0.10 ≤11.0 0.60±0.10 100
Ø25.0/12.0 25.6±0.6 0.30±0.10 ≤12.0 0.65±0.10 25
Ø28.0/14.0 28.8±0.8 0.30±0.10 ≤14.0 0.65±0.10 25
Ø30.0/15.0 30.8±0.8 0.33±0.10 ≤15.0 0.70±0.10 25
Ø35.0/17.5 36.0±1.0 0.35±0.10 ≤17.5 0.75±0.10 25
Ø40.0/20.0 41.0±1.0 0.35±0.10 ≤20.0 0.75±0.10 25
Ø50.0/25.0 51.0±1.0 0.40±0.10 ≤25.0 0.80±0.10 25
Ø60.0/30.0 61.0±1.0 0.40±0.10 ≤30.0 0.80±0.10 25
Ø70.0/35.0 71.0±1.0 0.40±0.10 ≤35.0 0.80±0.10 25
Ø80.0/40.0 81.0±2.0 0.45±0.10 ≤40.0 0.90±0.10 25
Ø90.0/45.0 91.0±2.0 0.45±0.10 ≤45.0 0.90±0.10 25
Ø100.0/50.0 102.0±2.0 0.50±0.10 ≤50.0 1.0±0.20 25
Ø120.0/60.0 122.0±2.0 0.50±0.10 ≤60.0 1.0±0.20 25
Ø150.0/75.0 152.0±2.0 0.50±0.10 ≤75.0 1.0±0.20 25

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case

Durable Pure Black Insulated Heat Shrink Tubing 12 N/ MM² Tensile Strength
