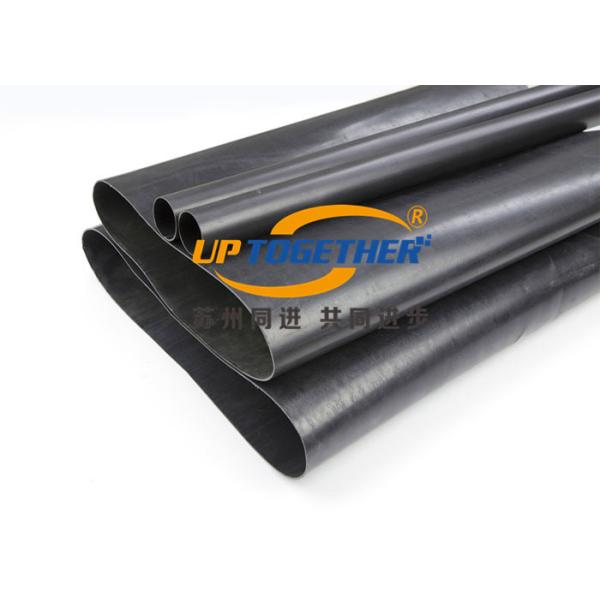

Semi Rigid Adhesive Lined Heat Shrink Tubing MWPC / MWP Black Color
Semi Rigid Adhesive Lined Heat Shrink Tubing MWPC / MWP Black Color
Specifications
Brand Name :
UPTTOGETHER
Model Number :
MWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Color :
Black
Voltage :
1-36kV
Shrink Ratio :
3:1
Tensile strength :
10.4Mpa
Application :
Low Voltage
Description

Adhesive Lined Semi Rigid Medium Wall Heat Shrink Tube MWPC MWP , φ6-φ230mm , Black , PE


1. Product Introduction
Semi rigid medium wall adhesive lined heat shrink tubing is made of polyolefin materials extruded with a layer of hot melt adhesive inside. This product carries excellent insulation and sealing, corrosion resistance performance, with which it was found in wide applications like insulations and protections for high voltage cable middle connections and terminations, busbars, as well as different kinds of pipelines because of its excellent corrosion resistance, moisture-proof, and abrasion resistance performances.Semi Rigid Adhesive Lined Heat Shrink Tubing MWPC / MWP Black Color

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 ≥14N/mm2
Elongation ASTM D638 ≥450%
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Eccentricity ASTM D2671 <30%
Water absorption ASTM D570 <0.5%
Peeling strength DIN 30672 ≥125N/25m


3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(M/PC)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø6.0/2.0 ≥6.0 1.0+0.1 2.0 2.0±0.1 1～1.22
Ø8.0/2.0 ≥8.0 1.0+0.1 2.0 2.0±0.1 1～1.22
Ø10.2/3.0 ≥10.2 1.0+0.1 3.0 2.0±0.1 1～1.22
Ø12.0/3.0 ≥12.0 1.0+0.1 3.0 2.0±0.1 1～1.22
Ø16.0/5.0 ≥16.0 1.0+0.1 5.0 2.0±0.1 1～1.22
Ø19.1/5.6 ≥19.1 1.0+0.1 5.6 2.0±0.1 1～1.22
Ø22.0/6.0 ≥22.0 1.0+0.1 6.0 2.0±0.1 1～1.22
Ø25.0/8.0 ≥25.0 1.0+0.1 6.0 2.0±0.1 1～1.22
Ø28/6.0 ≥28 1.0+0.1 6.0 2.0±0.1 1～1.22
Ø33.0/8.0 ≥33.0 1.0+0.1 8.0 2.0±0.1 1～1.22
Ø38.1/12.0 ≥38.1 1.0+0.1 12.0 2.0±0.1 1～1.22
Ø43.2/12.7 ≥43.2 1.0+0.1 12.7 2.0±0.1 1～1.22
Ø52.1/16.0 ≥52.1 1.0+0.1 16.0 2.0±0.1 1～1.22
Ø65.0/19.0 ≥65.0 1.0+0.1 19.0 2.0±0.1 1～1.22
Ø75.0/22.0 ≥75.0 1.0+0.1 22.0 2.0±0.1 1～1.22
Ø85.0/25.0 ≥85.0 1.0+0.1 25.0 2.0±0.1 1～1.22
Ø95.0/30.0 ≥95.0 1.0+0.1 30.0 2.0±0.1 1～1.22
Ø115/34.0 ≥115 1.0+0.1 34.0 2.0±0.1 1～1.22
Ø140/42.0 ≥140 1.0+0.1 42.0 2.0±0.1 1～1.22
Ø160/50.0 ≥160 1.0+0.1 50.0 2.0±0.1 1～1.22
Ø180/65.0 ≥180 1.0+0.1 65.0 2.0±0.1 1～1.22
Ø200/69.0 ≥200 1.0+0.1 69.0 2.0±0.1 1～1.22
Ø230/78.0 ≥230 1.0+0.1 78.0 2.0±0.1 1～1.22

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.


5. Application Case
Semi Rigid Adhesive Lined Heat Shrink Tubing MWPC / MWP Black Color
