Flame Retardant Medium Wall Heat Shrink Tubing φ6 - 140MM 400% Elongation
Flame Retardant Medium Wall Heat Shrink Tubing φ6 - 140MM 400% Elongation
Specifications
Brand Name :
UPTTOGETHER
Model Number :
MWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Color :
Black
Voltage :
1-36kV
Shrink Ratio :
3.5:1
Sample :
Available
Type :
Insulation Sleeving
Description

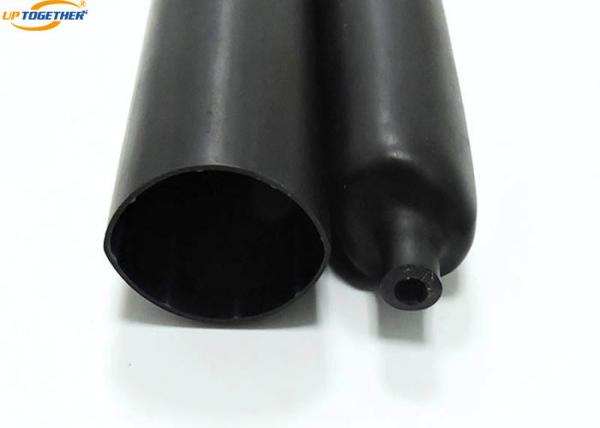

Flame retardant medium wall heat shrinkable tube , φ6-140mm , Black , PE

1. Product Introduction

Flame retardant medium wall heat shrink tubing is manufactured through modification of polyolefin materials using ionizing radiation technology with electronic accelerators. It carries excellent insulation, flame retardant and flexibility. It is ideal for insulating and protecting middle connections and terminals of medium& low voltage cable, busbars and other places where flame retardant is demanded and resisting corrosion and abrasion for pipelines.

Flame Retardant Medium Wall Heat Shrink Tubing φ6 - 140MM 400% Elongation

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 ≥14N/mm2
Elongation ASTM D638 ≥400%
Dielectric strength ASTM D149 18kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Eccentricity ASTM D2671 <30%
Water absorption ASTM D570 <0.5%
Peeling strength DIN 30672 ≥125N/25m


3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(M/PC)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø6.0/2.0 ≥6.0 1.0+0.1 2.0 1.8±0.30 1～1.22
Ø10.2/3.0 ≥10.2 1.0+0.1 3.0 1.75±0.30 1～1.22
Ø16.0/5.0 ≥16.0 1.0+0.1 5.0 1.90±0.30 1～1.22
Ø19.1/5.6 ≥19.1 1.0+0.1 5.6 2.45±0.30 1～1.22
Ø25/8 ≥25.0 1.0+0.1 8.0 2.45±0.30 1～1.22
Ø28/9 ≥28.0 1.0+0.1 9.0 2.60±0.30 1～1.22
Ø35/10.2 ≥35.0 1.0+0.1 10.2 2.70±0.45 1～1.22
Ø38.1/12 ≥38.1 1.0+0.1 12.0 2.70±0.45 1～1.22
Ø43.2/12.7 ≥43.2 1.0+0.1 12.7 2.70±0.45 1～1.22
Ø52.1/16 ≥52.1 1.1+0.1 16.0 2.80±0.45 1～1.22
Ø63/19 ≥63 1.1+0.1 19.0 2.80±0.45 1～1.22
Ø75/22 ≥75 1.1+0.1 22.0 3.00±0.45 1～1.22
Ø85/25 ≥85.0 1.1+0.1 25.0 3.00±0.45 1～1.22
Ø95/29 ≥95.0 1.1+0.1 29.0 3.30±0.50 1～1.22
Ø115/34 ≥115 1.1+0.1 34.0 3.70±0.50 1～1.22
Ø125/36 ≥125 1.1+0.1 36.0 3.70±0.50 1～1.22
Ø130/36 ≥130 1.1+0.1 36.0 3.70±0.50 1～1.22
Ø140/42 ≥140 1.1+0.1 42.0 3.70±0.50 1～1.22


4. Ordering Information

Packing
1By diffrent cartons and plastic pallents.
2.Anonymous packing is available.
3.OEM packing is available.
4.Do as customer's requirements.
Delivery
1.Our factory is nearby Shanghai.
2.Other seaport is acceptable.
3.Do as customer's requirements.


5. Application Case
Flame Retardant Medium Wall Heat Shrink Tubing φ6 - 140MM 400% Elongation
