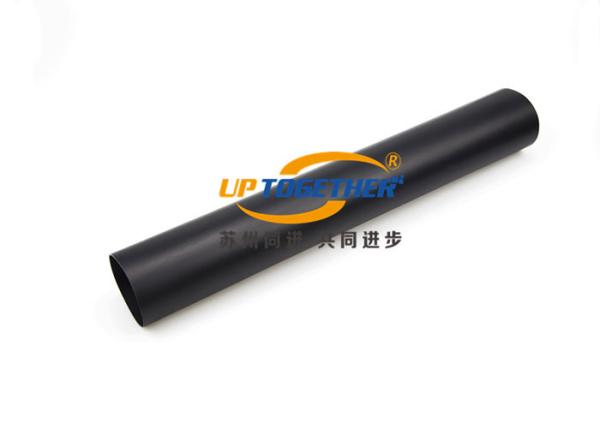

Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
Specifications
Brand Name :
UPTTOGETHER
Model Number :
MWPC
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Color :
Black
Voltage :
1-36kV
Glue :
Mechanical, EVA
Adhesive :
EVA
Shrink Ratio :
3:1
Description

Medium Wall Heat Shrink Tube With Adhesive MWPC MWP , φ30-φ350mm , Black

1. Product Introduction
MWPC series of heat shrink medium wall tube are made from polyolefin material with with hot melting adhesive and medium wall thickness. They are suitable for sealing and protecting cable joint up to 35kV. They are also used to other situation for mechanical protection and seal. The flame resistance tube or other request can be custom made.
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio

2. Technical Parameter

PropertyTest MethodResult
Tensile strengthASTM D638≥14N/mm2
ElongationASTM D638≥450%
Dielectric strengthASTM D14925kv/mm
Volume resistivityASTM D2571x1014Ω.cm
EccentricityASTM D2671<30%
Water absorptionASTM D570<0.5%
Peeling strengthDIN 30672≥125N/25m


3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)

Packing

(M/PC)

Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness
Ø28/8≥281.0+0.18.02.0±0.11～1.22
Ø30/12≥301.0+0.112.02.0±0.11～1.22
Ø35/14≥351.0+0.114.02.0±0.11～1.22
Ø40/16≥401.0+0.116.02.0±0.11～1.22
Ø50/20≥501.0+0.120.02.2±0.11～1.22
Ø63/25≥631.0+0.125.02.2±0.11～1.22
Ø75/30≥751.0+0.130.02.2±0.11～1.22
Ø85/35≥851.0+0.135.02.2±0.11～1.22
Ø95/40≥951.0+0.140.02.3±0.11～1.22
Ø115/50≥1151.1+0.150.02.4±0.11～1.22
Ø140/60≥1401.1+0.160.02.5±0.11～1.22
Ø160/60≥1601.1+0.160.02.7±0.11～1.22
Ø180/60≥1801.1+0.160.03.0±0.11～1.22
Ø200/65≥2001.1+0.165.03.3±0.11～1.22
Ø250/75≥2501.1+0.175.03.5±0.11～1.22
Ø300/75≥3001.1+0.175.03.5±0.11～1.22
Ø350/75≥3501.1+0.175.03.5±0.11～1.22


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

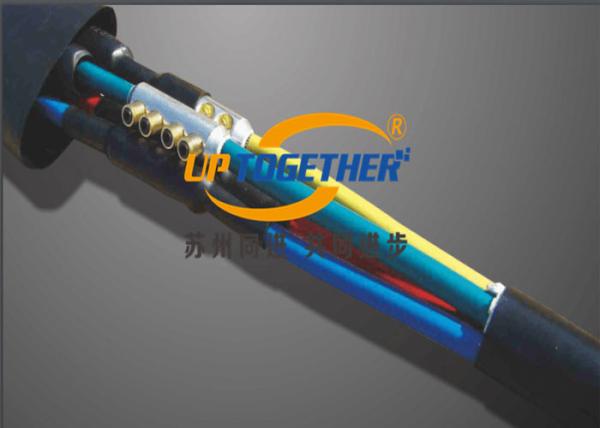

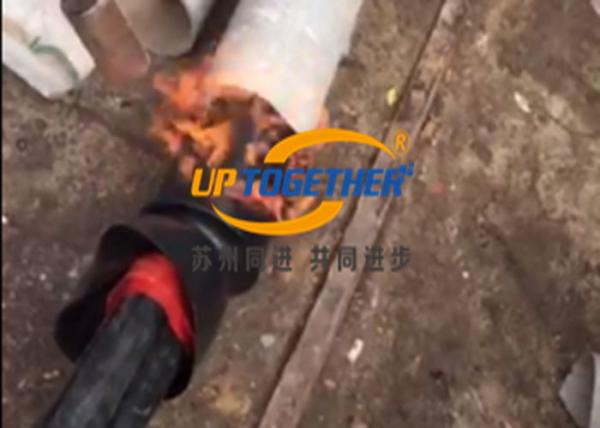

5. Application Case
Black Medium Wall Heat Shrink Tubing EVA Adhesive 0 . 5% Water absorption Ratio
