6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material
6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material
6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material
6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material
Specifications
Brand Name :
UPTOGETHER
Model Number :
DWDRS
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
200 Meter/Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Product name :
Dual wall heat shrink tubing
Before Applied :
6.4mm 15mm
Shrink Ratio :
4:1 , 3:1
Use :
Electric Wire Connection
Material :
PE
Rated Voltage :
1kV
Color :

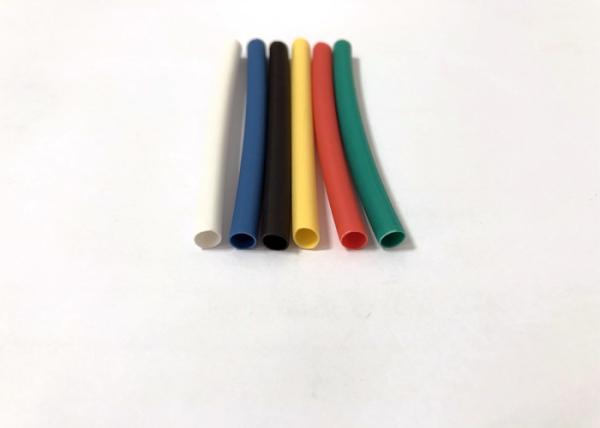

black,red,green,blue,yellow,white
Feature :
waterproof
Description

6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material

1. Product Introduction

Colourful Dual Wall Heat Shrink Tubing for waterproof , heat shrink tubing for electrical wires

Dual wall tubing products consist of a crosslinked outer jacket and an inner layer of adhesive or encapsulant . Dual Wall tubing creates a watertight seal to protect wire, cable and connector components .

6.4mm, 15mm quality control reaches the optimal state

Heat shrink tube are mainly used for industrial, ship, wire links, anti-rust and anti-corrosion protection of solder joints, and audio and electrical DIY. Wire ends, harnesses, electronics protection and insulation treatment, fitness equipment parts and steel structure surface protection and so on.

2. Technical Parameter

PE Base Property

Property Test Method Result
Tensile Strength ASTM D638 10.3Mpa
Elongation ASTM D638 ≥300%
Dielectric Strength ASTM D149 ≥ 15kV/mm
Volume Resistivity ASTM D257 ≥ 1014Ω.cm
Longitudinal Change ASTM D2671 -10%～+10%
Flame Retardant UL224,VW-1 Pass
Heat Shock ASTM D2671 Pass
Cold Blend ASTM D2671 Pass
Water Absorption Ratio ASTM D570 <0.5%

3. Specification Packaging

3:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm
 Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø1/8 Ø3.2 3.2 1.0 0.90±0.15 0.35±0.10 200
Ø3/16 Ø4.8 4.8 1.6 1.00±0.15 0.40±0.10 100
Ø1/4 Ø6.4 6.4 2.20 1.25±0.15 0.45±0.12 100
Ø5/16 Ø7.9 7.9 2.70 1.30±0.15 0.50±0.12 100
Ø3/8 Ø9.5 9.5 3.20 1.40±0.15 0.50±0.12 50
Ø1/2 Ø12.7 12.7 4.20 1.70±0.15 0.50±0.12 36.6
Ø5/8 Ø15.0 15 5.20 1.80±0.15 0.55±0.15 30.5
Ø3/4 Ø19.1 19.1 6.30 1.95±0.15 0.55±0.15 30.5
Ø1 Ø25.4 25.4 8.50 2.05±0.20 0.55±0.15 30.5
Ø1-1/4 Ø30.0 30 10.20 2.20±0.20 0.60±0.15 24.4
Ø1-1/2 Ø39.0 39 13.50 2.50±0.20 0.60±0.15 18.3
Ø2 Ø50.0 50 17.00 2.80±0.25 0.70±0.15 12.2
Ø5/2 Ø64 64 21.00 3.00±0.25 0.70±0.15 6.1
Ø3 Ø75 75 25.00 3.00±0.30 1.00±0.20 1.22
Ø7/2 Ø90 90 30.00 3.00±0.30 1.00±0.20 1.22
Ø4 Ø100 100 34.00 3.00±0.30 1.00±0.20 1.22
Ø5 Ø125 125 42.00 3.00±0.30 1.00±0.20 1.22

4:1 Ratio

Size Before Applied After Applied(mm) Package
Inch mm Inner Diameter
(mm)		 Inner Diameter
(mm)		 Wall
Thickness		 Adhesive
Thickness		 M/Spool
Ø5/32 Ø4.0 4 1 1.1±0.15 0.4±0.15 200
Ø1/4 Ø6.0 6 1.5 1.5±0.15 0.5±0.15 100
Ø5/16 Ø8.0 8 2 1.7±0.15 0.5±0.15 50
Ø1/2 Ø12.0 12 3 2.0±0.15 0.6±0.15 1.22m/pc
Ø5/8 Ø16.0 16 4 2.3±0.25 0.6±0.15 1.22m/pc
Ø25/32 Ø20.0 20 5 2.6±0.25 0.6±0.15 1.22m/pc
Ø1 Ø24.0 24 6 3.0±0.30 0.7±0.15 1.22m/pc
Ø3/2 Ø32.0 32 8 3.0±0.30 0.7±0.15 1.22m/pc
Ø2 Ø52.0 52 13 3.3±0.30 0.7±0.15 1.22m/pc

Hot Melting Adhesive Property

Property Test Method Result
Water Absorption Ratio ASTM D570 <0.2%
Softening Point ASTM E8 95℃
Peeling Strength (PE) ASTM D1000 120N/25m
Peeling Strength (AL) ASTM D1000 80N/25m

4. Ordering Information

Electric Wire Connection Dual Wall Heat Shrink Tubing , electrical wire heat shrink tubing

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material
