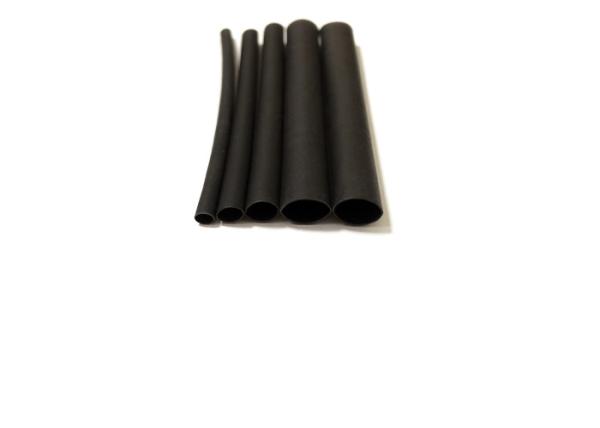

UL Electrical Wire Thin Wall Heat Shrink Tubing For Water Proof And Rust Proof
UL Electrical Wire Thin Wall Heat Shrink Tubing For Water Proof And Rust Proof
UL Electrical Wire Thin Wall Heat Shrink Tubing For Water Proof And Rust Proof
UL Electrical Wire Thin Wall Heat Shrink Tubing For Water Proof And Rust Proof
Specifications
Brand Name :
UPTOGETHER
Model Number :
DRS
Certification :
ROHS , UL
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
400 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Product Name :
Heat shrink tubing
Material :
PE material
Type :
Heat Shrinkable
Application :
Low Voltage
colour :
colourful
Tensile strength :
10.4Mpa
Description

UL Heat shrink tubing , electrical wire heat shrink tubing for water proof and rust proof

1. Product Introduction

UL Heat shrink tubing , electrical wire heat shrink tubing for water proof and rust proof

Applications: electronics, communications, automotive, shipping, aircraft manufacturing and other industries

Specially designed formula approved by UL . Flexible and flame retardant. Offering low Shrinking temperature .
This thin wall heat shrink tubing is widely used to the cable and wire insulation and protection that need good fire resistance .
2:1 Shrink Ratio
Maximum Continuous use temperature 125°C

Shrink Temperature of 80°C and operating temperature of -55°C to + 125°C

certificate:UL , ROHS


Function : 1 . Wire coat and insulation .

2 . make the joint of terminal block .

3 . divide the colors .

4 . water-proof .

5 . protection and insulation of insistors and electrical capacitors .

2. Technical Parameter

Property Test Method Result
Tensile Strength ASTM D638 12 N/mm2
Elongation ASTM D638 300%
Heat Shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold Blend@-30℃ ASTM D2671 No Cracking
Dielectric Strength ASTM D149 15kv/mm
Voltage Withstand @2.5kv for 60 sec No breakdown
Volume Resistivity ASTM D257 1x1014Ω.cm
Longitudinal Change ASTM D2671 Inside +/- 5%

3. Specification Packing

2:1 Ratio

Size Before Applied (mm) After Applied (mm) Package
(mm) Internal Diameter

Wall

Thickness

 Internal Diameter

Wall

Thickness

 (M/Spool)
Ø3.0/1.5 3.5±0.2 0.18±0.05 ≤1.5 0.35±0.05 200
Ø3.5/1.75 4.0±0.2 0.18±0.05 ≤1.75 0.40±0.05 200
Ø4.0/2.0 4.5±0.2 0.20±0.05 ≤2.0 0.40±0.05 100
Ø5.0/2.5 5.5±0.3 0.20±0.08 ≤2.5 0.40±0.08 100
Ø6.0/3.0 6.5±0.3 0.20±0.08 ≤3.0 0.40±0.08 100
Ø7.0/3.5 7.5±0.3 0.20±0.08 ≤3.5 0.42±0.08 100
Ø8.0/4.0 8.5±0.3 0.20±0.08 ≤4.0 0.42±0.08 100
Ø9.0/4.5 9.6±0.3 0.22±0.08 ≤4.5 0.45±0.08 100
Ø10.0/5.0 10.6±0.4 0.22±0.08 ≤5.0 0.45±0.08 100
Ø11.0/5.5 11.6±0.4 0.22±0.10 ≤5.5 0.45±0.10 100
Ø12.0/6.0 12.6±0.4 0.22±0.10 ≤6.0 0.45±0.10 100
Ø13.0/6.5 13.6±0.4 0.23±0.10 ≤6.5 0.46±0.10 100
Ø14.0/7.0 14.6±0.4 0.23±0.10 ≤7.0 0.46±0.10 100
Ø15.0/7.5 15.6±0.5 0.23±0.10 ≤7.5 0.46±0.10 100
Ø16.0/8.0 16.6±0.5 0.25±0.10 ≤8.0 0.50±0.10 100
Ø18.0/9.0 18.6±0.5 0.25±0.10 ≤9.0 0.55±0.10 100
Ø20.0/10.0 20.6±0.6 0.25±0.10 ≤10.0 0.55±0.10 100
Ø22.0/11.0 22.6±0.6 0.28±0.10 ≤11.0 0.60±0.10 100
Ø25.0/12.0 25.6±0.6 0.30±0.10 ≤12.0 0.65±0.10 25
Ø28.0/14.0 28.8±0.8 0.30±0.10 ≤14.0 0.65±0.10 25
Ø30.0/15.0 30.8±0.8 0.33±0.10 ≤15.0 0.70±0.10 25
Ø35.0/17.5 36.0±1.0 0.35±0.10 ≤17.5 0.75±0.10 25
Ø40.0/20.0 41.0±1.0 0.35±0.10 ≤20.0 0.75±0.10 25
Ø50.0/25.0 51.0±1.0 0.40±0.10 ≤25.0 0.80±0.10 25
Ø60.0/30.0 61.0±1.0 0.40±0.10 ≤30.0 0.80±0.10 25
Ø70.0/35.0 71.0±1.0 0.40±0.10 ≤35.0 0.80±0.10 25
Ø80.0/40.0 81.0±2.0 0.45±0.10 ≤40.0 0.90±0.10 25
Ø90.0/45.0 91.0±2.0 0.45±0.10 ≤45.0 0.90±0.10 25
Ø100.0/50.0 102.0±2.0 0.50±0.10 ≤50.0 1.0±0.20 25
Ø120.0/60.0 122.0±2.0 0.50±0.10 ≤60.0 1.0±0.20 25
Ø150.0/75.0 152.0±2.0 0.50±0.10 ≤75.0 1.0±0.20 25

4. Ordering Information

Different sizes Heat shrink insulation sleeving, heat shrink tubing for wires and electrical wires

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.
